WSIQ-0229BP

DIMENSIONS (INCHES)

19.5 x 8.5 x 9.6

HEAVY DUTY AMPS 124A

HEAVY DUTY HP 208V 40A

HEAVY DUTY HP 230V 40A

HEAVY DUTY HP 460V 100A



WSIQ-0229BP

STANDARD DUTY AMPS 156A

STANDARD DUTY HP @ 208V 50A

STANDARD DUTY HP @ 230V 50A

STANDARD DUTY HP @ 460V 125A

SUBCATEGORY

Softstart Chassis

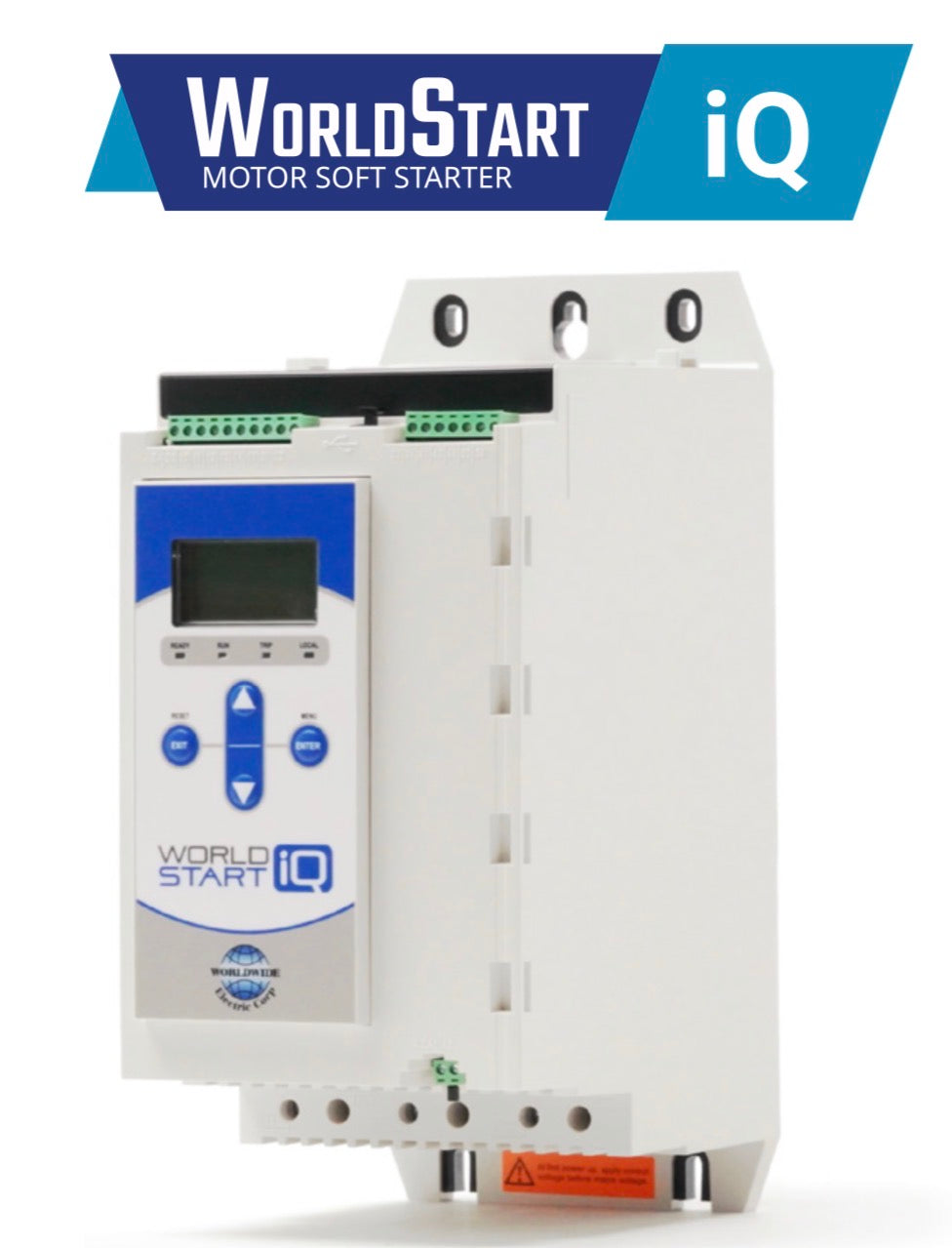

WorldWide Electric’s WorldStart iQ (WSiQ)

Soft Starter enhances the productivity of your

operation by reducing wear and tear on your

power transmission equipment. In addition

to starting and stopping your motor with

precision and efficiency, the WSiQ also helps

minimize energy costs and improve operational

effectiveness.

Voltage & HP Ranges (525 V-Rated with Run-

Rated Internal Bypass)

- 208 V Three-Phase 5 – 150 hp (SD)

- 230 V Three-Phase 5 – 500 hp (SD)

- 460 V Three-Phase 10 – 900 hp (SD)

- 208 V Three-Phase 3 – 125 hp (HD)

- 230 V Three-Phase 3 – 350 hp (HD)

- 460 V Three-Phase 10 – 700 hp (HD)

Overload Capacity

- 350% Overload for 30 seconds (SD)

- 450% Overload for 30 seconds (HD)

Operation, Modes & Features

- Bypass Type: Internal

- Starting Current: True 3-Phase Starter, Ratings to

450% FLA for 30 seconds

- Constant current and current ramp start

- Advanced adaptive control starting/stopping

- Kickstart starting

- Coast-to-stop and ramp-to-stop

- DC brake & Soft brake

- Jog (forward and reverse)

- Inside delta control (6-wire)

- Soft trip & Internal bypass

Accessories

- Pumping smart card

- Remote HMI

- PD extended I/O card

- DeviceNet Communications Card

- Modbus TCP/IP Communications Card

- Modbus RTU Communications Card

- Ethernet IP Communications Card

- Profibus Communications Card

- ProfiNET Communications Card

Applications

The WSiQ range of soft starters offer a cost-effective,

simple solution for motor control. As true 3-phase

starters, the WSiQ series are ideal for equipment that

starts un-loaded, such pumps, blowers, and fans.

Also available as in-

stock enclosed panels

for non-combination,

standard, and heavy duty.
