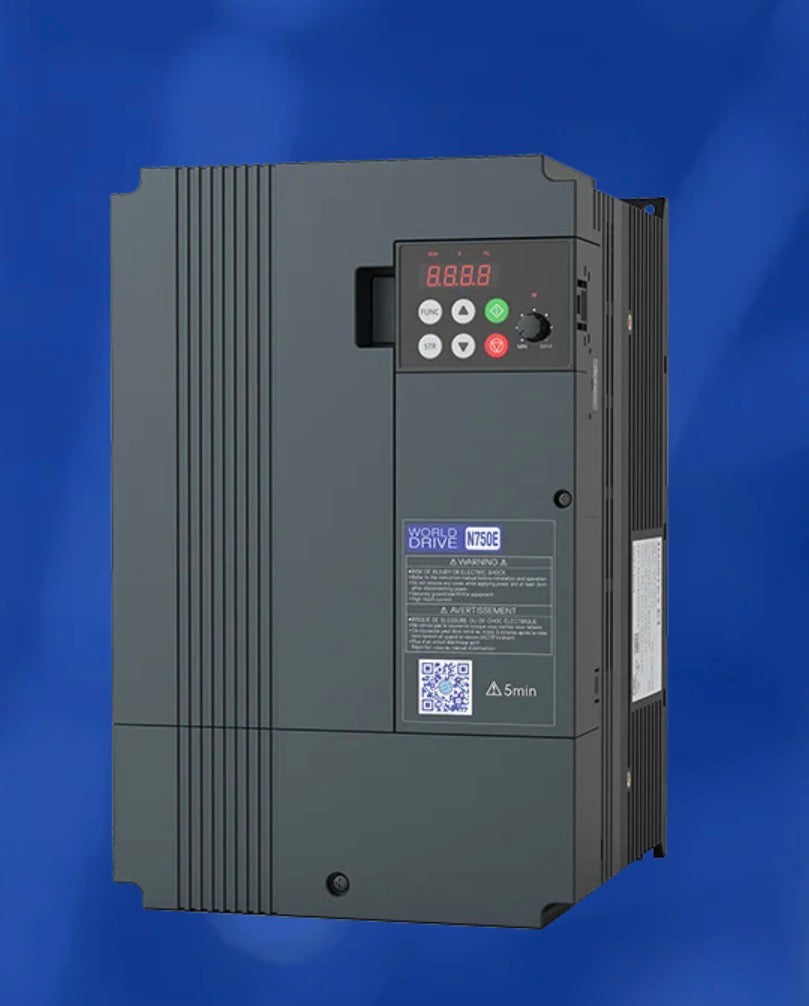

WDN750E-3500HF WORLD-WIDE ELECTRIC DRIVE N750E VARIABLE FREQUENCY DRIVE, 3-PHASE INPUT, 460V, 500HP 656AMPS, CONSTANT TORQUE OR 550HP 680A, VARIABLE TORQUE

WDN750E-3500HF WORLD-WIDE ELECTRIC DRIVE N750E VARIABLE FREQUENCY DRIVE, 3-PHASE INPUT, 460V, 500HP 656AMPS, CONSTANT TORQUE OR 550HP 680A, VARIABLE TORQUE

$30,583.00 USD
$35,785.00 USD $30,583.00 USD
Sale Sold out
Shipping calculated at checkout.

FEATURES

• Sensorless Vector, Constant Torque and Variable Torque Control Technology-Powerful & Versatile

• WorldDrive Reliability-Durable and Easy to Maintain

• 0.5 – 200 hp

• Output frequency: 0.01 - 400 Hz

• Starting current CT: 60 sec. 150% overload

• Starting current VT: 60 sec. 120% overload

• Starting torque: 100% / 3 Hz (V/f ) 200% / 1 Hz (SLV)

• Enclosure: IP20

• Permanent magnet (PM) sensorless control

• User display

• External brake control

• Changed parameter check

• Linear and s-curve functionality

• Independent torque boost for forward/reverse

• Temperature controlled fan and fan run-time Monitoring

• Analog output - 0~10 Vdc or 4~20 mA

• 24V Power terminal - 100mA max.

• Two (2) open-collector outputs

• Two (2) relay outputs

• Six (6) digital inputs

• Analog input - 0~10 Vdc or 4~20 mA

• Built-in EMC filter (7.5 hp – 30 hp)

• UL61800

• Built in MODBUS

• Other communications options available - Consult factory



FEATURES

• Sensorless Vector, Constant Torque and Variable Torque Control Technology-Powerful & Versatile

• WorldDrive Reliability-Durable and Easy to Maintain

• 0.5 – 200 hp

• Output frequency: 0.01 - 400 Hz

• Starting current CT: 60 sec. 150% overload

• Starting current VT: 60 sec. 120% overload

• Starting torque: 100% / 3 Hz (V/f ) 200% / 1 Hz (SLV)

• Enclosure: IP20

• Permanent magnet (PM) sensorless control

• User display

• External brake control

• Changed parameter check

• Linear and s-curve functionality

• Independent torque boost for forward/reverse

• Temperature controlled fan and fan run-time Monitoring

• Analog output - 0~10 Vdc or 4~20 mA

• 24V Power terminal - 100mA max.

• Two (2) open-collector outputs

• Two (2) relay outputs

• Six (6) digital inputs

• Analog input - 0~10 Vdc or 4~20 mA

• Built-in EMC filter (7.5 hp – 30 hp)

• UL61800

• Built in MODBUS

• Other communications options available - Consult factory



WORLD-WIDE ELECTRIC DRIVE N750E VARIABLE

FREQUENCY DRIVE, 3-PHASE INPUT,

460V, 500HP 656AMPS, CONSTANT

TORQUE OR 550HP 680A, VARIABLE

TORQUE
