Variable Frequency Drive, AC 220V Input 4KW Variable Frequency CNC Drive Inverter Converter, VFD 5.5HP 1 or 3 Phase Input, 3 Phase Output, CNC Motor Inverter Converter for Motor Speed Control

Variable Frequency Drive, AC 220V Input 4KW Variable Frequency CNC Drive Inverter Converter, VFD 5.5HP 1 or 3 Phase Input, 3 Phase Output, CNC Motor Inverter Converter for Motor Speed Control

$169.99 USD
$219.83 USD $169.99 USD
Sale Sold out
Shipping calculated at checkout.
Highlights:
1.Powerful Function: It has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes.
2.Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.
3.Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.
4.Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
5.Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.

Details:

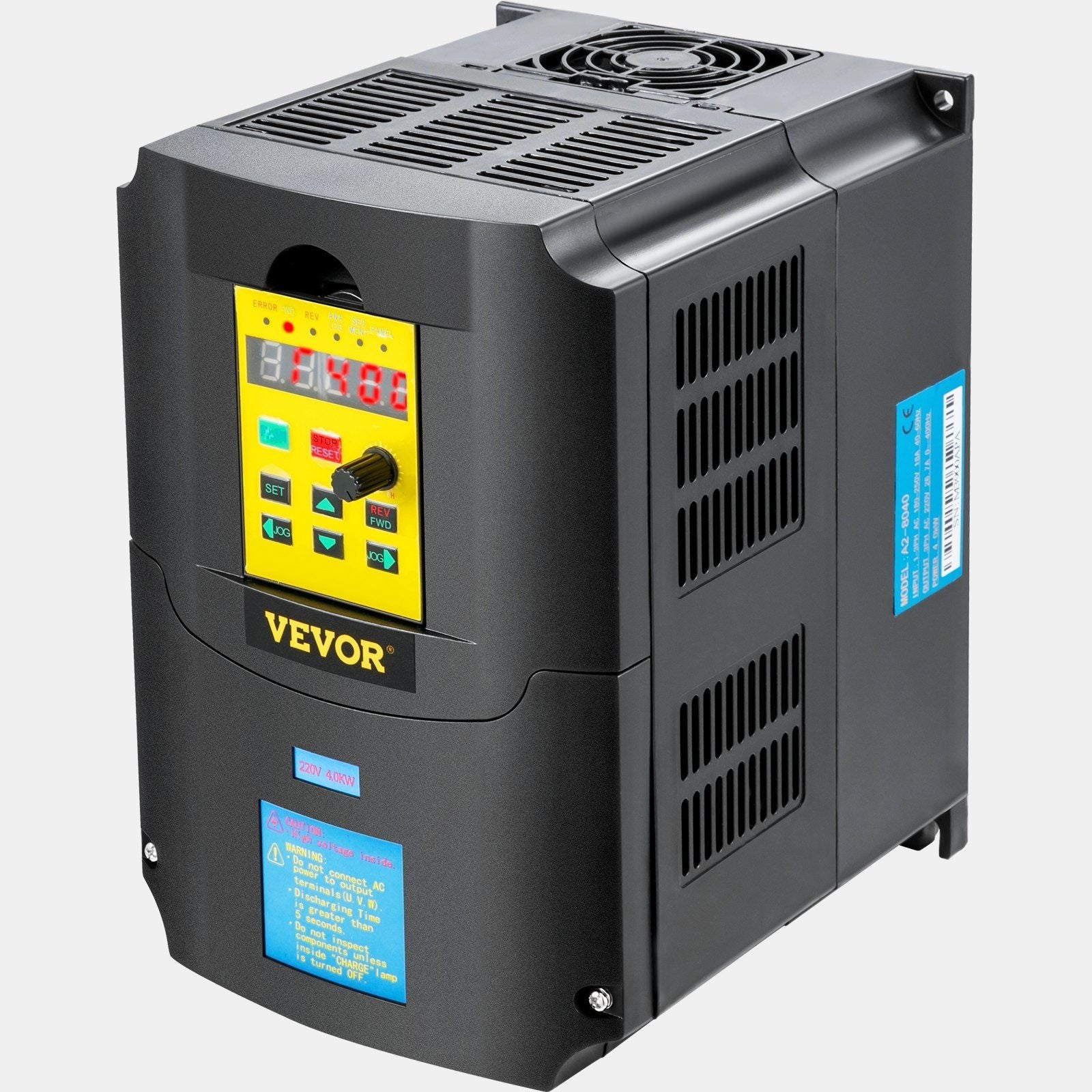

4 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
  • Note: This product is delivered randomly in black and white.
  • Powerful Function
  • Low-Noise Operation
  • Smart Digital Display
  • Multiple Protection
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105°C, higher than ordinary ones (80°C).
High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.
Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
Specifications
  • Model: H100-4S2-1B
  • Power: 4 kW
  • Input Voltage: 220V
  • Output Voltage: 0-220V
  • Input Current: 0-17A
  • Output Current: 0-17A
  • Input Phase: 1 or 3 Phase
  • Output Phase: 3 Phase
  • Input Frequency: 50/60 Hz
  • Output Frequency: 0-1000 Hz
  • Horsepower: 5.5 HP
  • Working Temperature: 23~104°F/-5 ~ 40 °C
  • Humidity: 0-90% Relative Humidity (without dew)
  • Vibration: Below 0.5 G
  • Net Weight: 5.73 lbs / 2.6 kg
  • Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
Package Content
  • 1 x 4 KW Variable Frequency Drive Inverter
  • 1 x English Manual
  • 1 x Extension Wire
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
4 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
  • Note: This product is delivered randomly in black and white.
  • Powerful Function
  • Low-Noise Operation
  • Smart Digital Display
  • Multiple Protection
Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105°C, higher than ordinary ones (80°C).
High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
