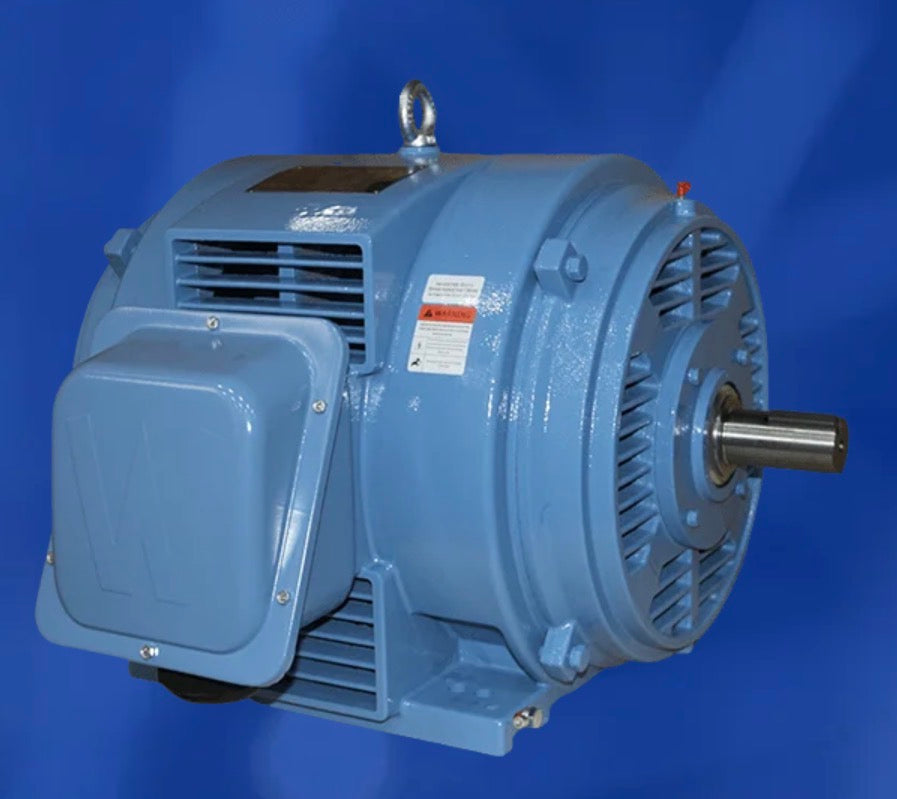

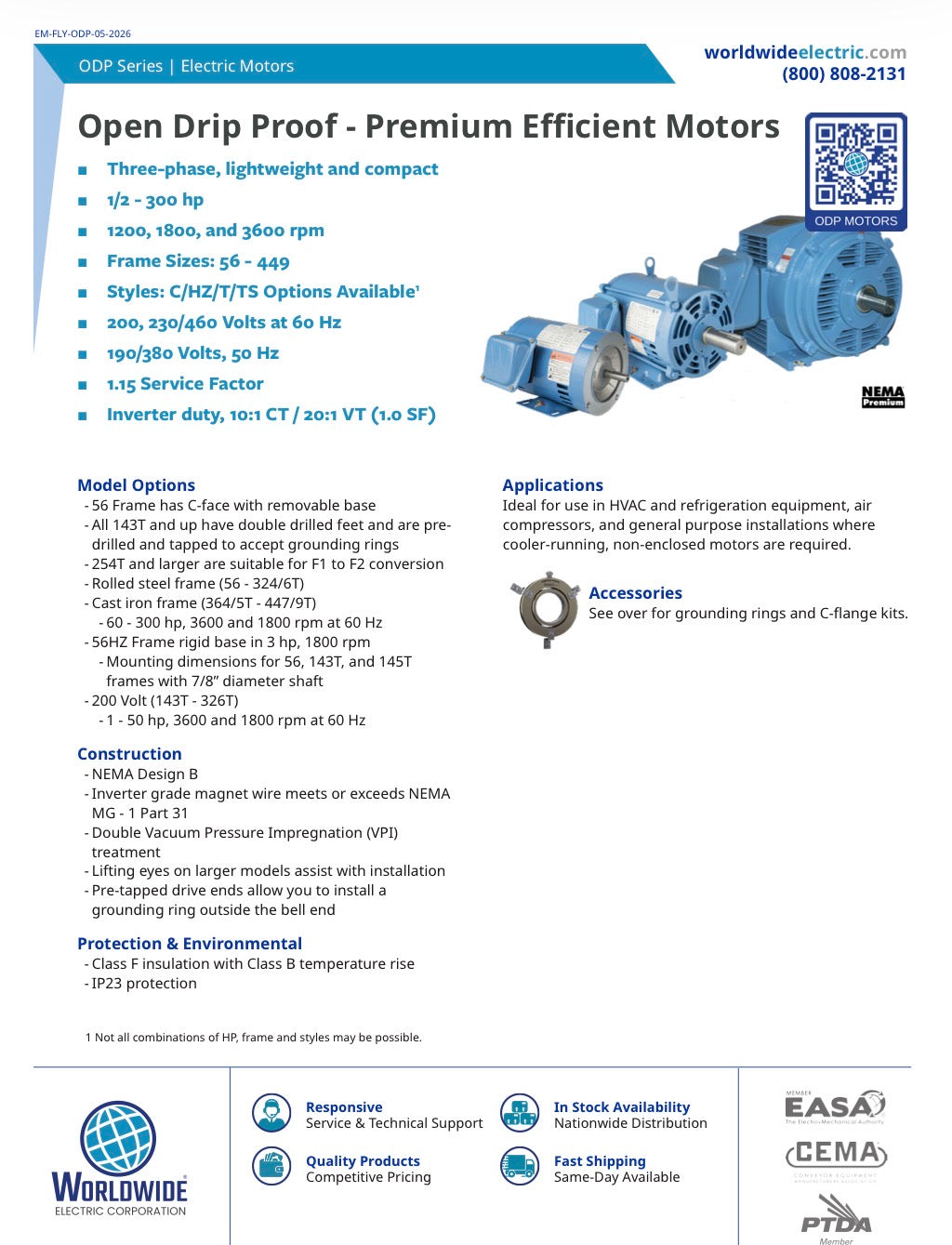

ODP100-18-404T

ODP 100 HP 1800 RPM 3 PH 60 Hz

230/460V 1.15 SF 404T FRAME, ODP, GENERAL PURPOSE MOTOR, CAST IRON, PREMIUM EFFICIENCY, RIGID MOUNTING

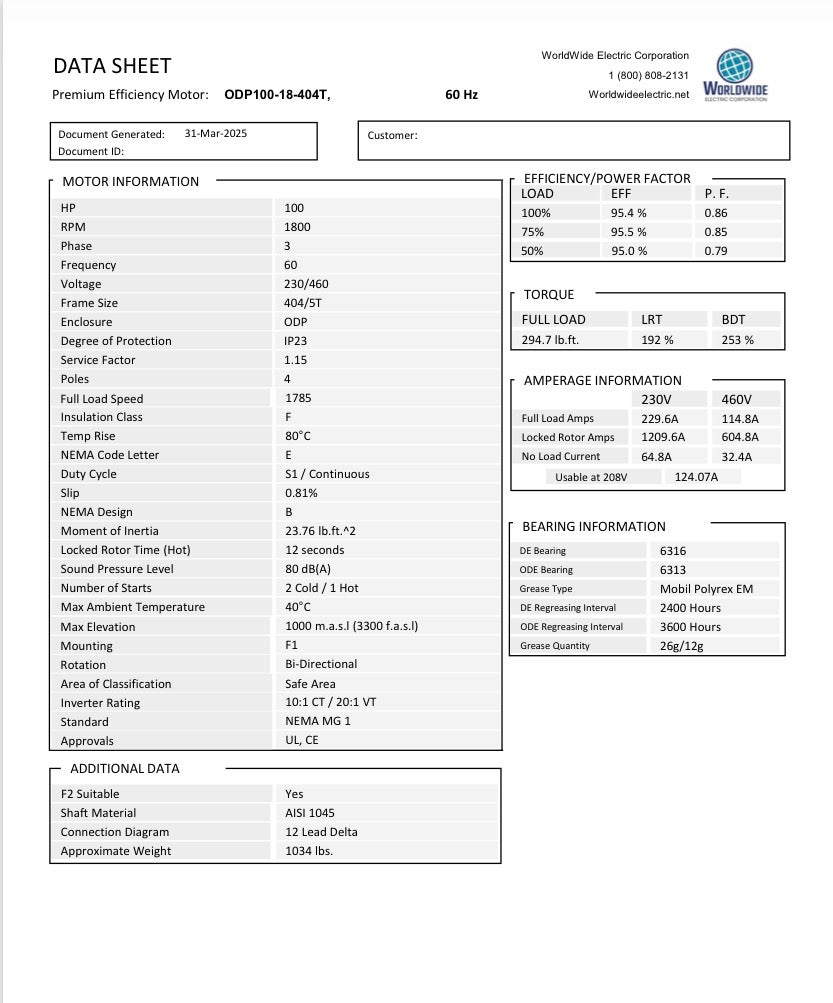

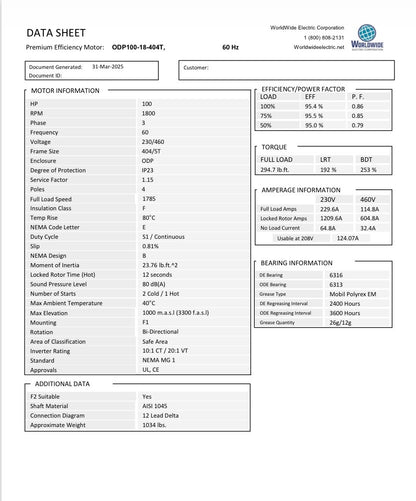

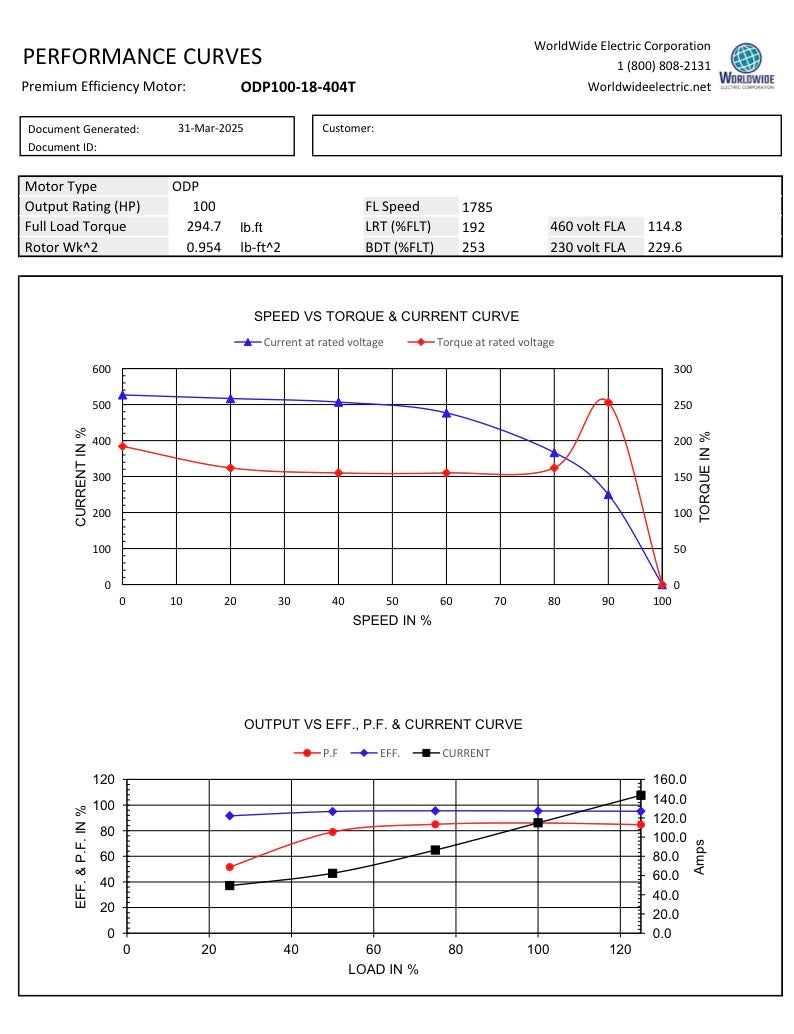

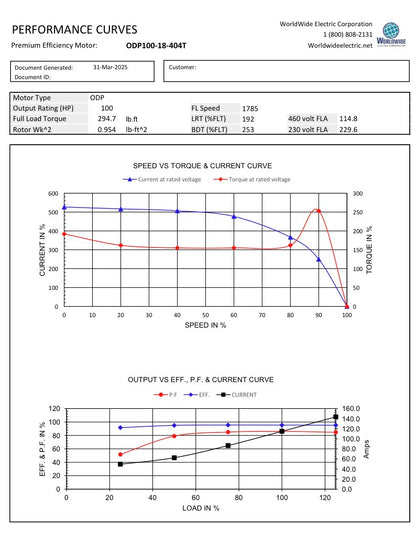

DATA SHEET

Premium Efficiency Motor:

ODP100-18-404T,



MOTOR INFORMATION EFFICIENCY/POWER FACTOR

HP 100

LOAD P. F.

EFF 0.86

100% 95.4 % RPM

1800

75% 95.5 % 0.85

Phase 3

50% 95.0 % 0.79

Frequency 60

Voltage 230/460

TORQUE

Frame Size 404/5T

Enclosure ODP

FULL LOAD LRT BDT

Degree of Protection

IP23 294.7 lb.ft. 192 % 253 %

Service Factor 1.15

Poles 4

AMPERAGE INFORMATION

Full Load Speed 1785

230V 460V

Insulation Class F

Full Load Amps 229.6A 114.8A

Temp Rise 80°C

Locked Rotor Amps

1209.6A 604.8A

NEMA Code Letter E

No Load Current

64.8A 32.4A

Duty Cycle S1 / Continuous Usable at 208V 124.07A

Slip 0.81%

NEMA Design B

Moment of Inertia

23.76 lb.ft.^2 BEARING INFORMATION

Locked Rotor Time (Hot) 12 seconds

DE Bearing 6316

Sound Pressure Level 80 dB(A)

ODE Bearing 6313

Number of Starts 2 Cold / 1 Hot

Grease Type Mobil Polyrex EM

Max Ambient Temperature 40°C

DE Regreasing Interval 2400 Hours

Max Elevation 1000 m.a.s.l (3300 f.a.s.l)

ODE Regreasing Interval 3600 Hours

Mounting F1

Grease Quantity 26g/12g

Rotation Bi-Directional

Area of Classification Safe Area

Inverter Rating 10:1 CT / 20:1 VT

Standard NEMA MG 1

Approvals UL, CE

ADDITIONAL DATA

F2 Suitable Yes

Shaft Material AISI 1045

Connection Diagram

12 Lead Delta

Approximate Weight 1034 lbs.
