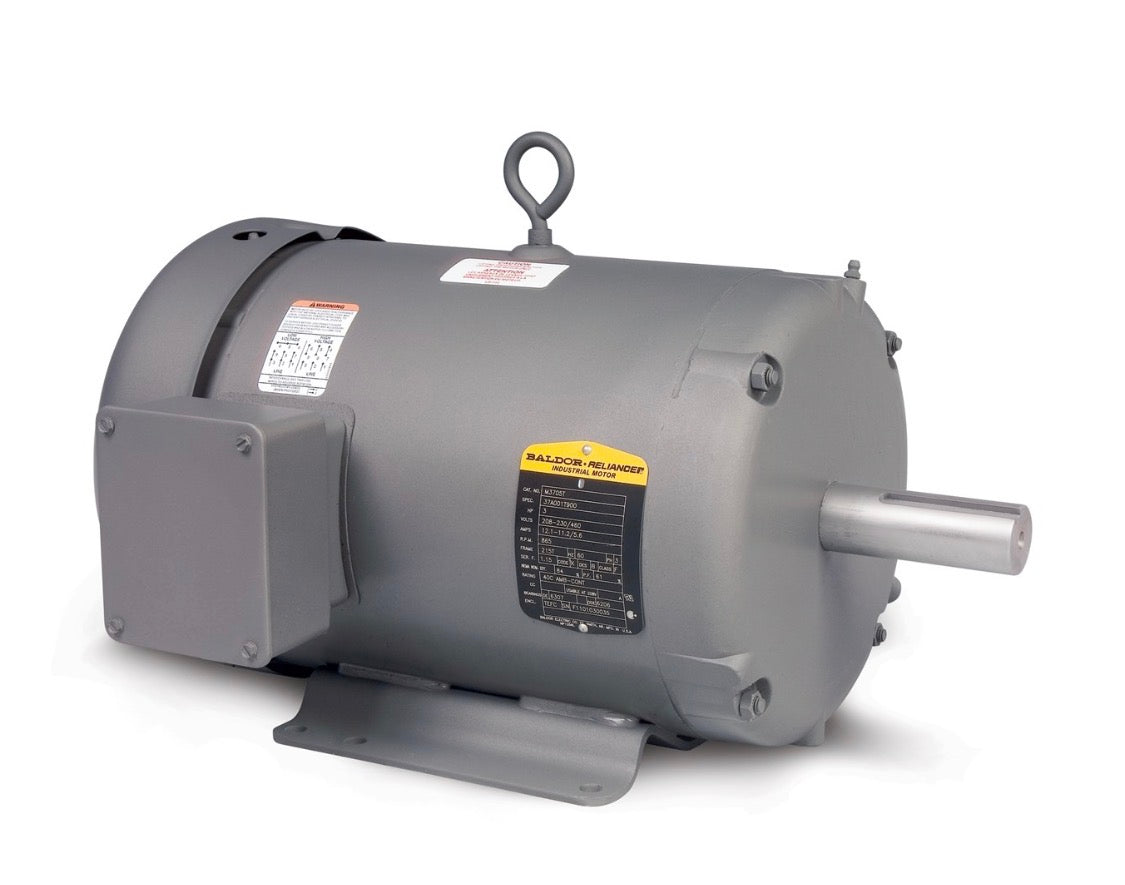

BALDOR M3539

BALDOR M3539

$648.00 USD
$648.00 USD
Sale Sold out
Shipping calculated at checkout.
Catalog NumberM3539
EnclosureTEFC
Frame56
Frame MaterialSteel
Frequency60.00 Hz
Motor Letter TypeThree Phase
Output @ Frequency.500 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1200 RPM @ 60 HZ
Voltage @ Frequency230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and GroupNone
Haz Area DivisionNot Applicable
Agency ApprovalsC UR US
Ambient Temperature40 °C
Auxiliary BoxNO AUXILLARY BOX
Auxiliary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage1.200 A @ 460.0 V
2.400 A @ 230.0 V
2.700 A @ 208.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load72.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps1.2 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassB
Inverter CodeNot Inverter
IP RatingNONE
KVA CodeJ
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Type3418M
Mounting ArrangementF1
Number of Poles6

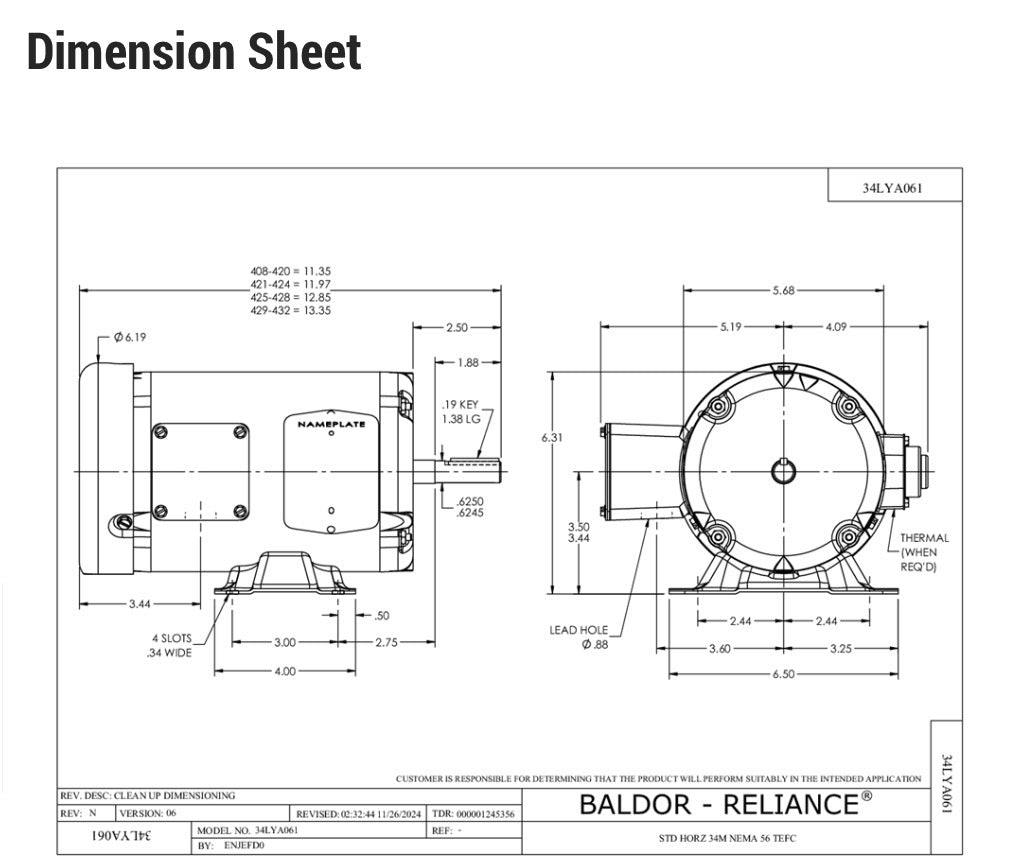

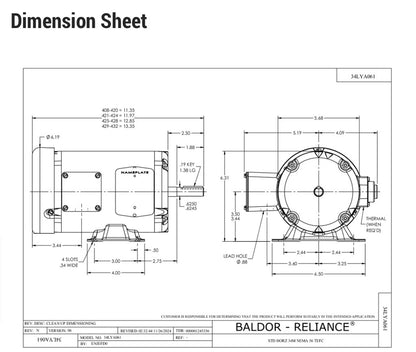

Overall Length11.35 IN
Power Factor55
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.25
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1140 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None
