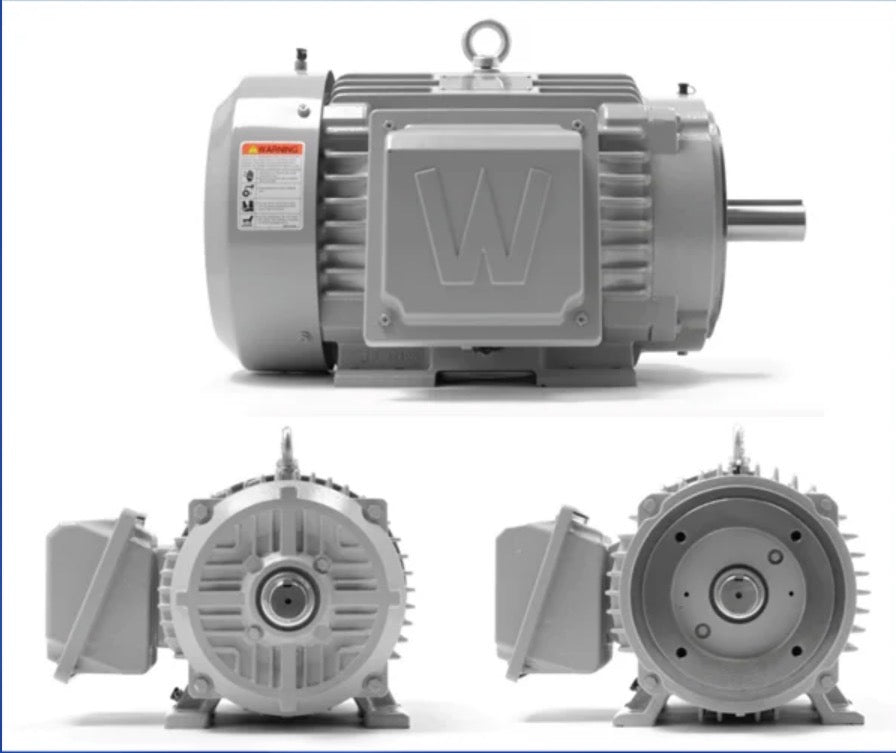

SD50-18-326T

SD50-18-326T

$3,249.00 USD
$3,750.00 USD $3,249.00 USD
Sale Sold out
Shipping calculated at checkout.

SD 50 HP 1800 RPM 3 PH 60 Hz

230/460V 1.15 SF 326T FRAME, TEFC, SEVERE DUTY MOTOR, CAST IRON, PREMIUM EFFICIENCY, RIGID MOUNTING



APPROXIMATE WEIGHT (LBS)

640

COLOR

Gray

DEGREE OF PROTECTION

IP55

ENCLOSURE TYPE

TEFC

FULL LOAD AMPS

60.3

FL EFFICIENCY (%)

94.5

FRAME SIZE

326T

FREQUENCY

60 HZ

HORSEPOWER

50

INSULATION CLASS

Class F

MOUNTING TYPE

Rigid Base

PHASE

Three-Phase

RPM

1800

SERVICE FACTOR

1.15

VOLTAGE

230/460

WARRANTY LENGTH

Three Year



FEATURES

• Three-phase NEMA Premium Efficiency

• 1-200 HP, 3600, 1800, and 1200 RPM

• 230/460 Volt, 60 Hz

• 1.15 Service Factor

• Inverter Duty, 10:1 CT / 20:1 VT at 1.0 SF

• Totally Enclosed Fan Cooled (TEFC) Enclosure

• Rigid base or C-face with feet

• Cast iron frame, end shields, & conduit box

• Rolled steel fan cover

• F1 (F1/F2 convertible)

• Vacuum Pressure Impregnation (VPI) system

• Metal clad V-ring seals

• Spike resistant inverter-grade magnet wire, per NEMA MG1 Part 30

• IP55 Ingress protection

• Class F Insulation

• Class I Division 2 Groups A, B, C, D, T3C Temp. Code

• Three-year warranty
