SD1.5-36-143T

SD1.5-36-143T

$355.00 USD
$480.88 USD $355.00 USD
Sale Sold out
Shipping calculated at checkout.
APPROXIMATE WEIGHT (LBS) 55
DEGREE OF PROTECTION IP55
ENCLOSURE TYPE TEFC
FULL LOAD AMPS 2.2
FL EFFICIENCY (%) 84.0
FRAME SIZE 143T
FREQUENCY 60 HZ
HORSEPOWER 1.5
IMAGE 1 c/2/a/d/c2ad8ac1ae5b166d3b376acec3c5c1472aab9952_WWE_SD_T_Frame_600px.png
INSULATION CLASS Class F
MARKETING TEXT • Three-phase NEMA Premium Efficiency<br>• 1-200 HP, 3600, 1800, and 1200 RPM<br>• 230/460 Volt, 60 Hz<br>• 1.15 Service Factor<br>• Inverter Duty, 10:1 CT / 20:1 VT at 1.0 SF<br>• Totally Enclosed Fan Cooled (TEFC) Enclosure<br>• Rigid base or C-face with feet<br>• Cast iron frame, end shields, & conduit box<br>• Rolled steel fan cover<br>• F1 (F1/F2 convertible) <br>• Vacuum Pressure Impregnation (VPI) system<br>• Metal clad V-ring seals<br>• Spike resistant inverter-grade magnet wire, per NEMA MG1 Part 30<br>• IP55 Ingress protection<br>• Class F Insulation<br>• Class I Division 2 Groups A, B, C, D, T3C Temp. Code<br>• Three-year warranty
MOUNTING TYPE Rigid Base
PHASE Three-Phase

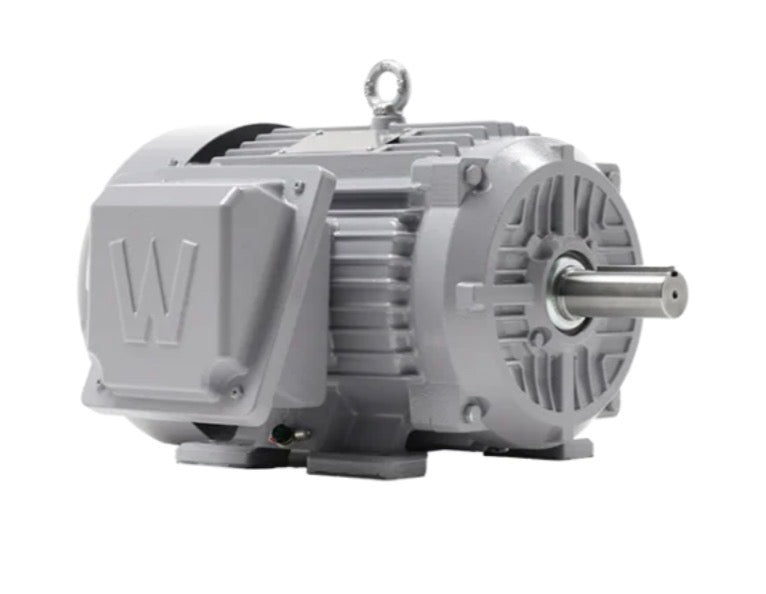

PRODUCT NAME Premium Efficient Severe Duty Motor, 1.5 HP, 3600 RPM, 230/460V, 143T Frame, Rigid Base
RPM 3600
SERVICE FACTOR 1.15
VOLTAGE 230/460
PRODUCT LINE CARD https://worldwideelectric.com/documents/603/product-brochures/82468/electric-motors-line-card.pdf
