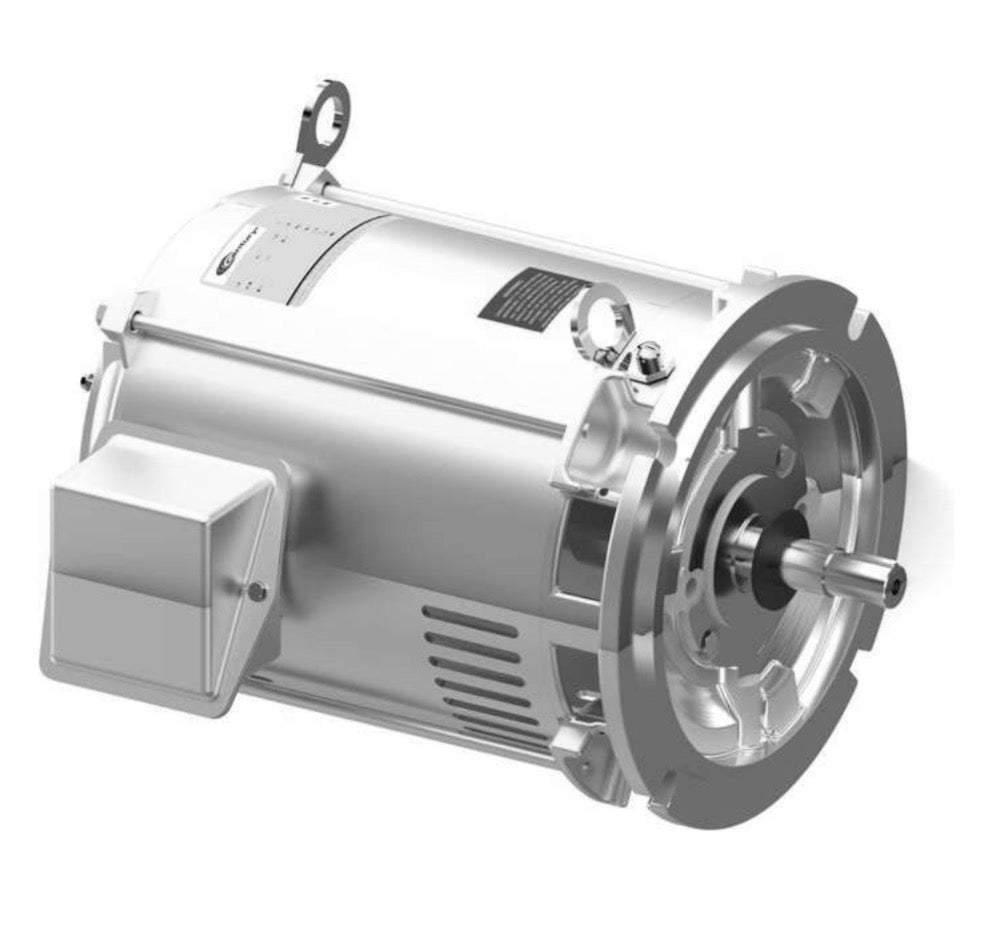

R338M2 10HP pool pump MOTOR ONLY

R338M2 10HP pool pump MOTOR ONLY

$1,875.00 USD
$2,450.00 USD $1,875.00 USD
Sale Sold out
Shipping calculated at checkout.
SKU UR338
UPC HEM786674029843
Availability IN STOCK, SHIP TODAY
Shipping Calculated At Checkout
Voltage 208/220/440V
Horsepower 10 HP
RPM 3450
Frame 213TYZ
Amperage 26.0/13.0 Amps
Bearings Ball Bearings
Speeds Single-Speed
Service Factor 1.15

R338M2 CENTURY POOL PUMP MOTOR 10 HP

The R338M2 Century Pool Pump Motor is a 10 HP replacement motor designed for commercial pool pump applications. It is compatible with Hydrotech (Purex) East Side "L" Series and "C" Series pumps, providing reliable performance for demanding environments.

Key Specifications

  • Horsepower: 10 HP
  • RPM: 3450
  • Voltage: 208-220/440 Volts
  • Amperage: 28.0-26.0/13.0 Amps
  • Frame / Diameter: 213TY Frame
  • Bearings: Ball Bearings
  • Insulation Class: B

Product Features & Fitment

This motor features a square flange design with an external slinger and is rated for operation in ambient temperatures up to 40°C with a service factor of 1.15. It is keyed for pump series C and cross-referenced as 353636. Shipping is restricted to freight truck delivery; please ensure the delivery address can accommodate a semi-truck.



Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for R338M2 10HP pool pump MOTOR ONLY

Efficiency Comparison Chart

Applications and Recommended Use Cases

Energy Cost Savings Over Time

Technical Specifications Breakdown

Maintenance Schedule and Requirements
