PEWWE5-36-184JM

PEWWE5-36-184JM

$865.00 USD
$865.00 USD
Sale Sold out
Shipping calculated at checkout.

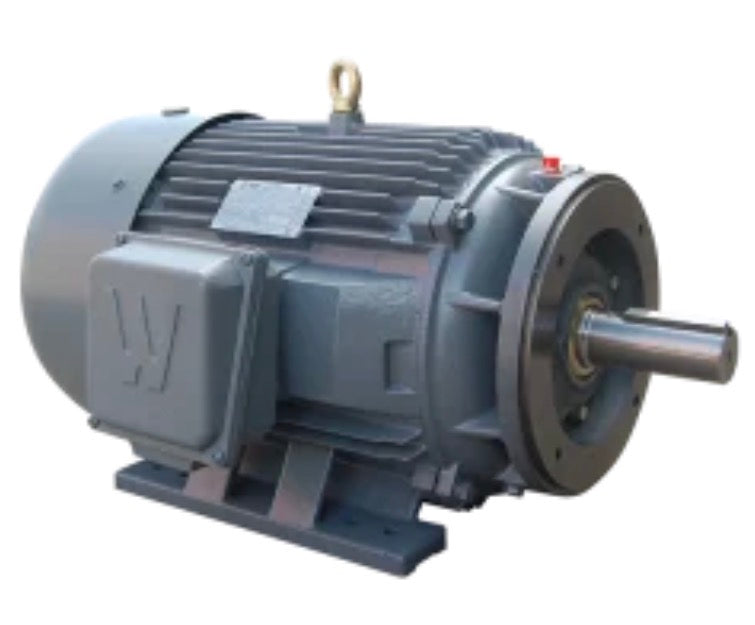

PEWWE 5 HP 3600 RPM 3 PH 60 Hz
230/460V 1.25 SF 184JM FRAME, TEFC,
CLOSE COUPLED PUMP MOTOR,
CAST IRON, PREMIUM EFFICIENCY,
C-FACE RIGID MOUNTING

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for PEWWE5-36-184JM

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 5 HP range, 3-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe totally enclosed fan-cooled (TEFC) design keeps dust, dirt, and moisture away from the windings, making it a solid fit for machine shops, manufacturing floors, and other environments where an open frame would let contaminants reach the motor.

Energy Cost Savings Over Time

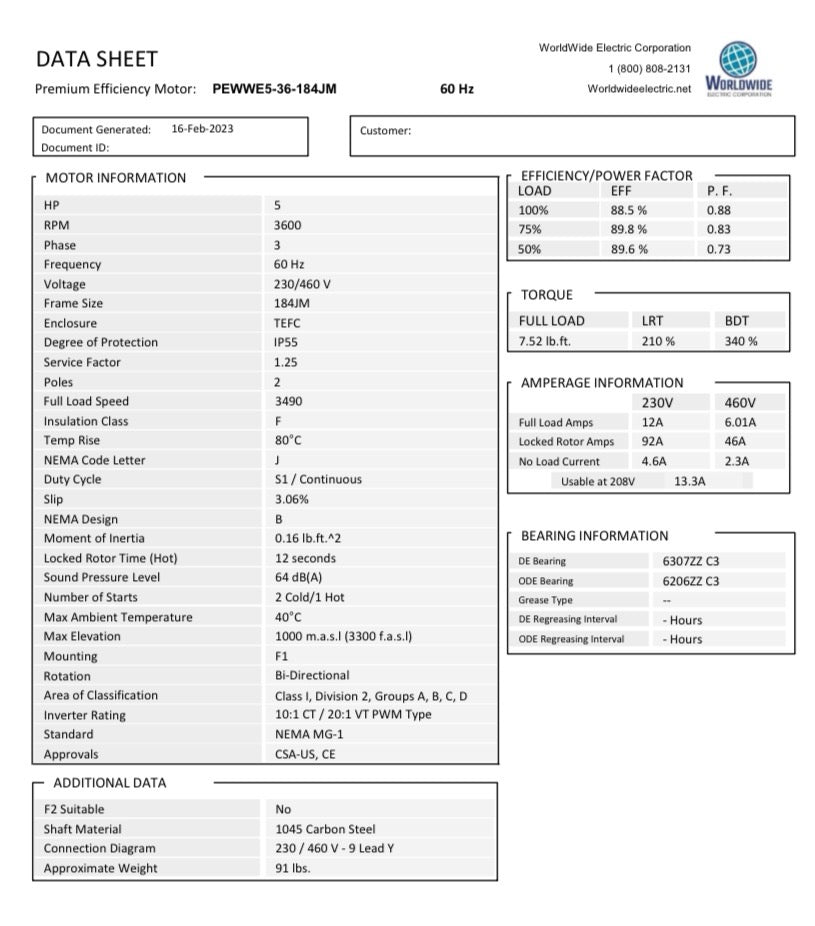

Technical Specifications Breakdown

Horsepower: 5 HP\nSpeed: 3600 RPM\nPoles: 2\nPhase: 3-Phase\nVoltage: 230/460V\nNEMA Frame: 184JM\nEnclosure: TEFC

Maintenance Schedule and Requirements
