1 3

OPE34-18-56

OPE34-18-56

$409.00 USD
$750.89 USD $409.00 USD
Sale Sold out
Shipping calculated at checkout.

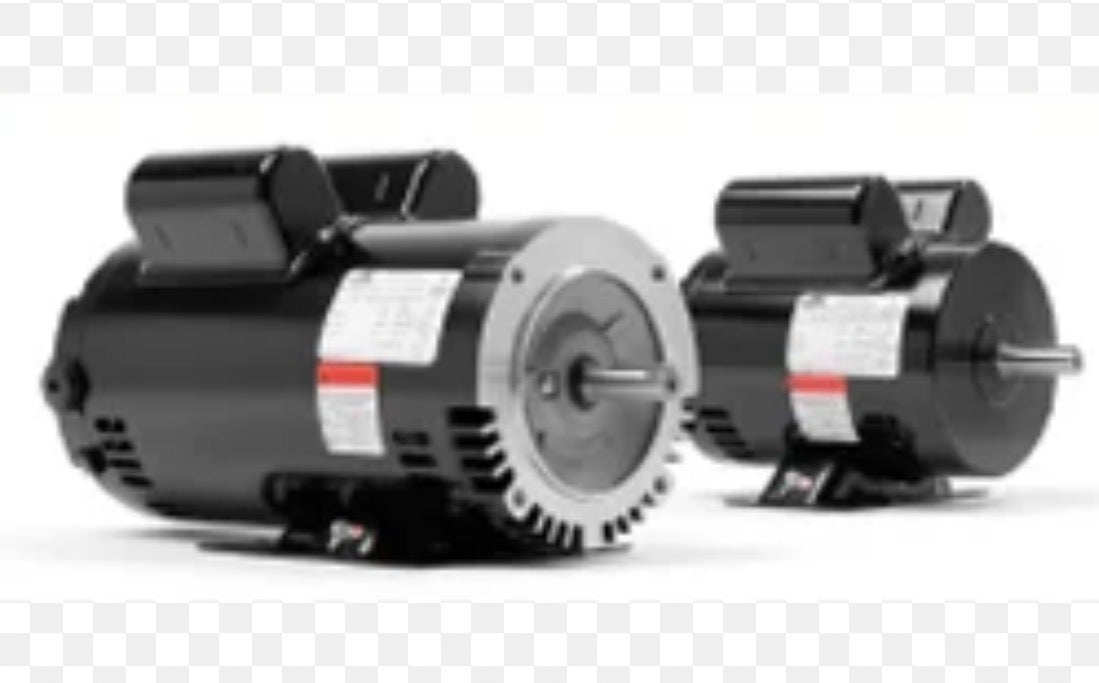

OPE .75 HP 1800 RPM 1 PH 60 Hz 115/230V 1.25 SF 56 FRAME, ODP, OPEN DRIP PROOF GENERAL PURPOSE MOTOR, PREMIUM EFFICIENCY, RIGID MOUNTING



APPROXIMATE WEIGHT (LBS)

34

DEGREE OF PROTECTION

IP23

ENCLOSURE TYPE

ODP

FULL LOAD AMPS

3.1

FL EFFICIENCY (%)

81.8

FRAME SIZE

56

FREQUENCY

60 HZ

HORSEPOWER

0.75

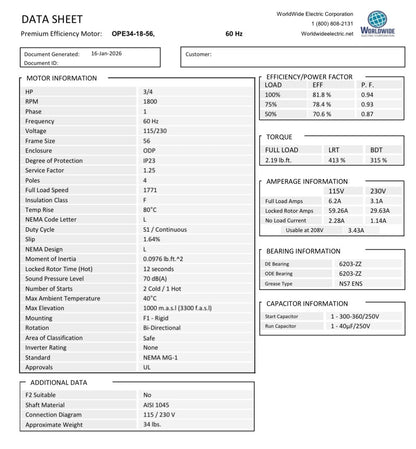

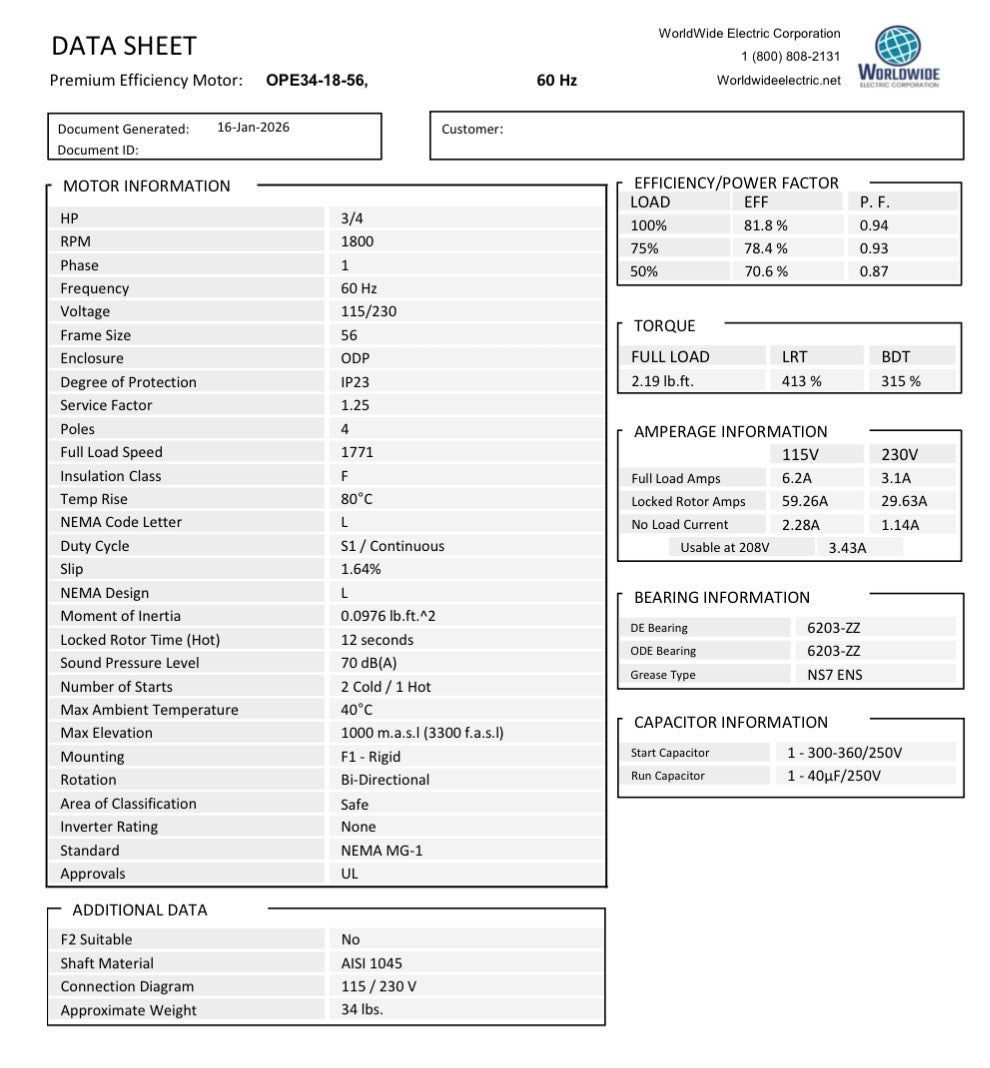

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for OPE34-18-56

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 0.75 HP range, 1-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe open drip-proof (ODP) design relies on extra airflow through the motor to manage operating temperature, and works best in clean, dry indoor settings such as HVAC equipment rooms and light manufacturing.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Horsepower: 0.75 HP\nSpeed: 1800 RPM\nPoles: 4\nPhase: 1-Phase\nVoltage: 115/230V\nNEMA Frame: 56\nEnclosure: ODP

Maintenance Schedule and Requirements
