ODP5-18-184T

ODP5-18-184T

$463.60 USD
$661.00 USD $463.60 USD
Sale Sold out
Shipping calculated at checkout.

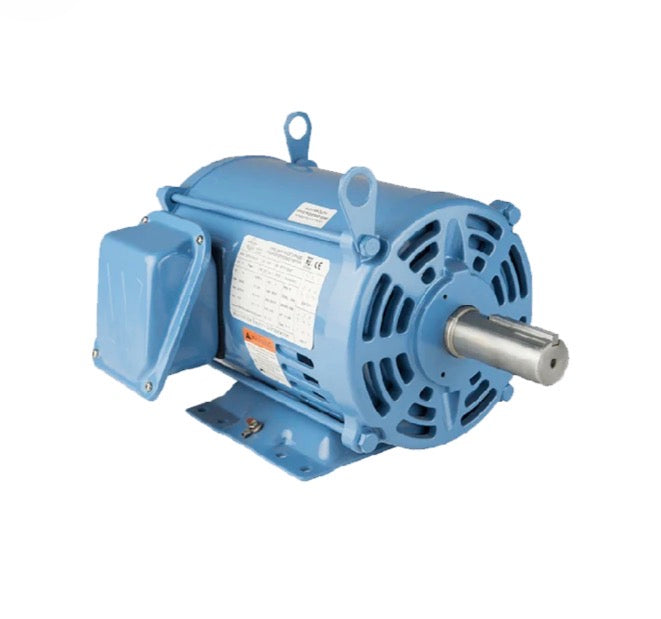

General Purpose Motor, ODP, 5 HP, 1800 RPM, 230/460V, 184T Frame, Rigid Base

Product #:

ODP5-18-184T

OVERVIEW

5HP 4P 3PH 208-230/460 184T ODP RS



SUPPLIER PART NUMBER

8501.52.4000

APPROXIMATE WEIGHT (LBS)

9.2

DEGREE OF PROTECTION

IP23

ENCLOSURE TYPE

ODP

FULL LOAD AMPS

6.2

FL EFFICIENCY (%)

89.5

FRAME SIZE

184T

FREQUENCY

60/50 HZ*

HORSEPOWER 5

INSULATION CLASS

Class F

MARKETING TEXT

‚ 1/2-300 HP <br>‚ 3600, 1800, 1200 RPM <br>‚ 230/460 Volt, 60 Hz (1/2-200 HP) <br>‚Ä¢ 460 Volt, 60 Hz (250-300 HP) <br>‚Ä¢ 190/380 Volt, 50 Hz (1/2-200 HP) <br>‚Ä¢ 380 Volt, 50 Hz (250-300 HP) <br>‚Ä¢ Open Drip Proof (ODP) Enclosure <br>‚Ä¢ - Rolled Steel Frame (1/2-50 HP) - Cast Iron Frame (364T-449T) <br>‚Ä¢ IP23 Protection <br>‚Ä¢ 1.15 SF (1.0 SF for 50 Hz Applications) <br>‚Ä¢ Class F Insulation <br>‚Ä¢ Rigid Base (56C-Face with Removable Base) <br>‚Ä¢ Premium Efficiency <br>‚Ä¢ Class B Temperature Rise <br>‚Ä¢ Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF) <br>‚Ä¢ Inverter Grade Magnet Wire Meets or Exceeds NEMA MG-1 Part 31 <br>‚Ä¢ Pre-Drilled and Tapped Drive Endbells on 143T Frame and Up to Accept Inpro¬Æ Current Diverter Rings; No Machining Required, Simple and Easy Installation <br>‚Ä¢ Exclusive Double Vacuum Pressure Impregnation (VPI) Insulation System<br>‚Ä¢ Double Drilled Feet to Accommodate Mounting Flexibility (143T-404T)<br>‚Ä¢ 254T and larger are suitable for F1 to F2 conversion

MOUNTING TYPE

Rigid Base

PHASE

Three-Phase

CATEGORY

Electric Motors

PRODUCT NAME

General Purpose Motor, ODP, 5 HP, 1800 RPM, 230/460V, 184T Frame, Rigid Base

RPM 1800

SERVICE FACTOR 1.15

SUBCATEGORY Open Drip Proof Motors

VOLTAGE 230/460

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for ODP5-18-184T

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 5 HP range, 3-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe open drip-proof (ODP) design relies on extra airflow through the motor to manage operating temperature, and works best in clean, dry indoor settings such as HVAC equipment rooms and light manufacturing.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Horsepower: 5 HP\nSpeed: 1800 RPM\nPoles: 4\nPhase: 3-Phase\nVoltage: 190/230/380/460V\nNEMA Frame: 184T\nEnclosure: ODP

Maintenance Schedule and Requirements
