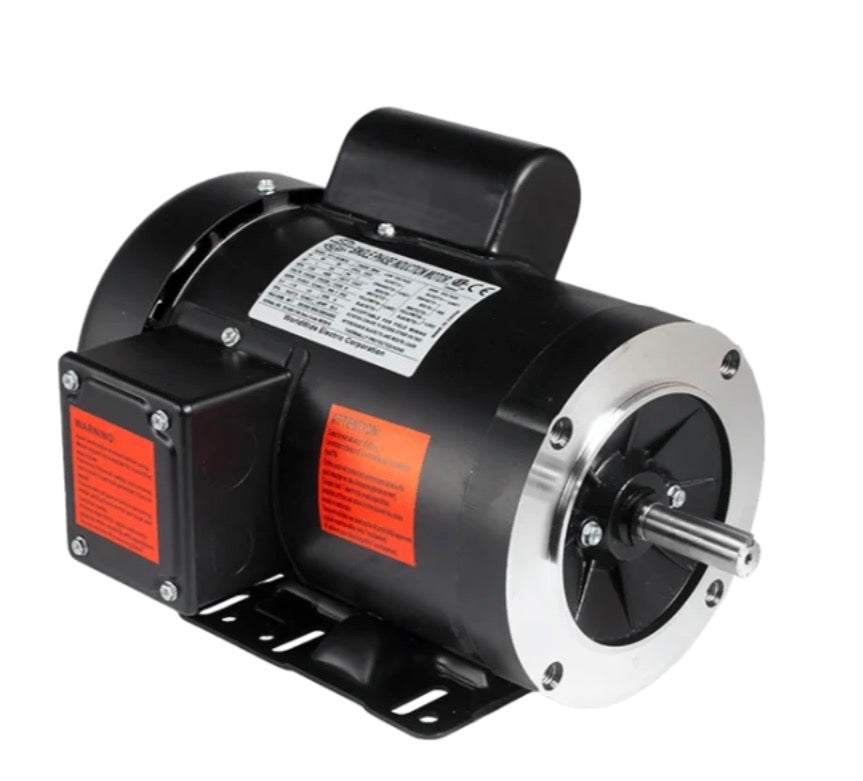

NT34-18-56CB General Purpose Motor, 0.75 HP, 1800 RPM, 115/230V, 56C Frame, C-Face with Removable Base

NT34-18-56CB General Purpose Motor, 0.75 HP, 1800 RPM, 115/230V, 56C Frame, C-Face with Removable Base

$380.00 USD
$525.00 USD $380.00 USD
Sale Sold out
Shipping calculated at checkout.

OVERVIEW

.75HP 4P 1PH 115/208-230 56CB TEFC RS



NT .75 HP 1800 RPM 1 PH 60 Hz 115/208-230V 1.15 SF 56C FRAME, TEFC, GENERAL PURPOSE MOTOR, ROLLED STEEL, STANDARD EFFICIENCY, C-FACE REMOVABLE BASE MOUNTING



APPROXIMATE WEIGHT (LBS)

29

DEGREE OF PROTECTION

IP43

ENCLOSURE TYPE

TEFC

FULL LOAD AMPS

5

FL EFFICIENCY (%)

67.0

FRAME SIZE

56C

FREQUENCY

60 HZ

HORSEPOWER

0.75





MOUNTING TYPE

C-Face with Removable Base

PHASE

Single-Phase

CATEGORY

Electric Motors

PRODUCT NAME

General Purpose Motor, 0.75 HP, 1800 RPM, 115/230V, 56C Frame, C-Face with Removable Base

RPM

1800

SERVICE FACTOR

1.15

SUBCATEGORY

General Purpose Motors

VOLTAGE

115/230

PRODUCT LINE CARD

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for NT34-18-56CB General Purpose Motor, 0.75 HP, 1800 RPM, 115/230V, 56C Frame, C-Face with Removable Base

Efficiency Comparison Chart

Applications and Recommended Use Cases

Energy Cost Savings Over Time

Technical Specifications Breakdown

Maintenance Schedule and Requirements
