NSSE34-18-56C

NSSE34-18-56C

$764.00 USD
$1,077.00 USD $764.00 USD
Sale Sold out
Shipping calculated at checkout.

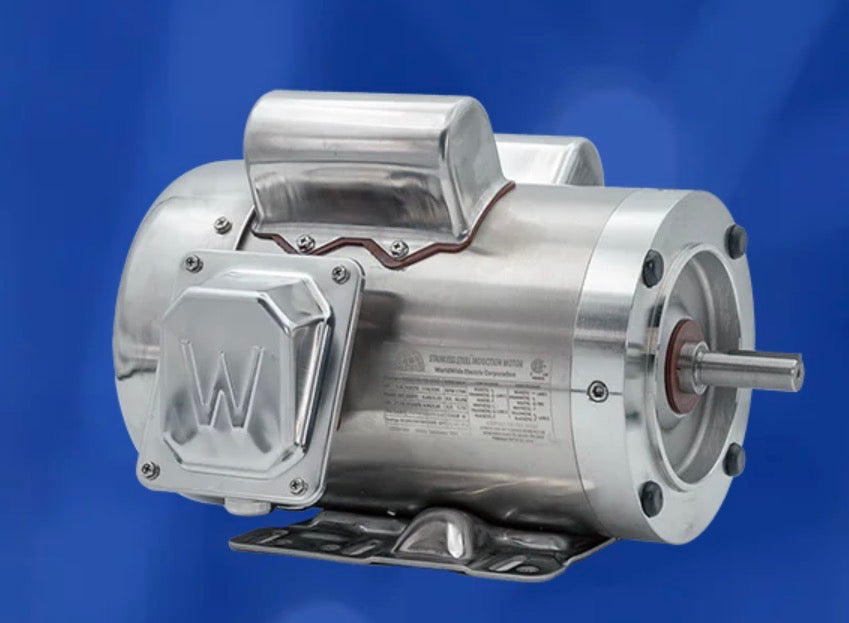

SS .75 HP 1800 RPM 1 PH 60 Hz

115/230V 1.15 SF 56C FRAME, TEFC,

WASHDOWN MOTOR, STAINLESS

STEEL, PREMIUM EFFICIENCY,

C-FACE RIGID MOUNTING



WorldWide Electric manufactures a wide range of three-phase stainless steel motors for wash-down, high-pressure, high-temperature applications, including premium efficient, IP69K rated, BISSC/BEAG certification, TEFC or TENV, close-coupled JM, and fractional motor options.

FEATURES

• 1/3 - 2 HP
• 3600 and 1800 RPM
• 115/230 Volt at 60 Hz
• 1.15 Service Factor
• TEFC Enclosure
• C-Face with Feet
• IP55 Protection
• Class F insulation
• Capacitor Start / Capacitor Run
• 304 Stainless Steel Construction
• Oil Seal on DE and ODE
• CSA Certification
• Premium Efficiency
APPROXIMATE WEIGHT (LBS)
43.9
DEGREE OF PROTECTION
IP55
ENCLOSURE TYPE
TEFC
FULL LOAD AMPS
6.6
FL EFFICIENCY (%)
78.5
FRAME SIZE
56C
FREQUENCY
60 HZ
HORSEPOWER
0.75
INSULATION CLASS
Class F
MOUNTING TYPE
C-Face with Feet
PHASE
Single-Phase
RPM
1800
SERVICE FACTOR
1.15
VOLTAGE
115/230

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for NSSE34-18-56C

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 0.75 HP range, 3-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe totally enclosed fan-cooled (TEFC) design keeps dust, dirt, and moisture away from the windings, making it a solid fit for machine shops, manufacturing floors, and other environments where an open frame would let contaminants reach the motor.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Horsepower: 0.75 HP\nSpeed: 1800 RPM\nPoles: 4\nPhase: 3-Phase\nVoltage: 115/230V\nNEMA Frame: 56C\nEnclosure: TEFC

Maintenance Schedule and Requirements
