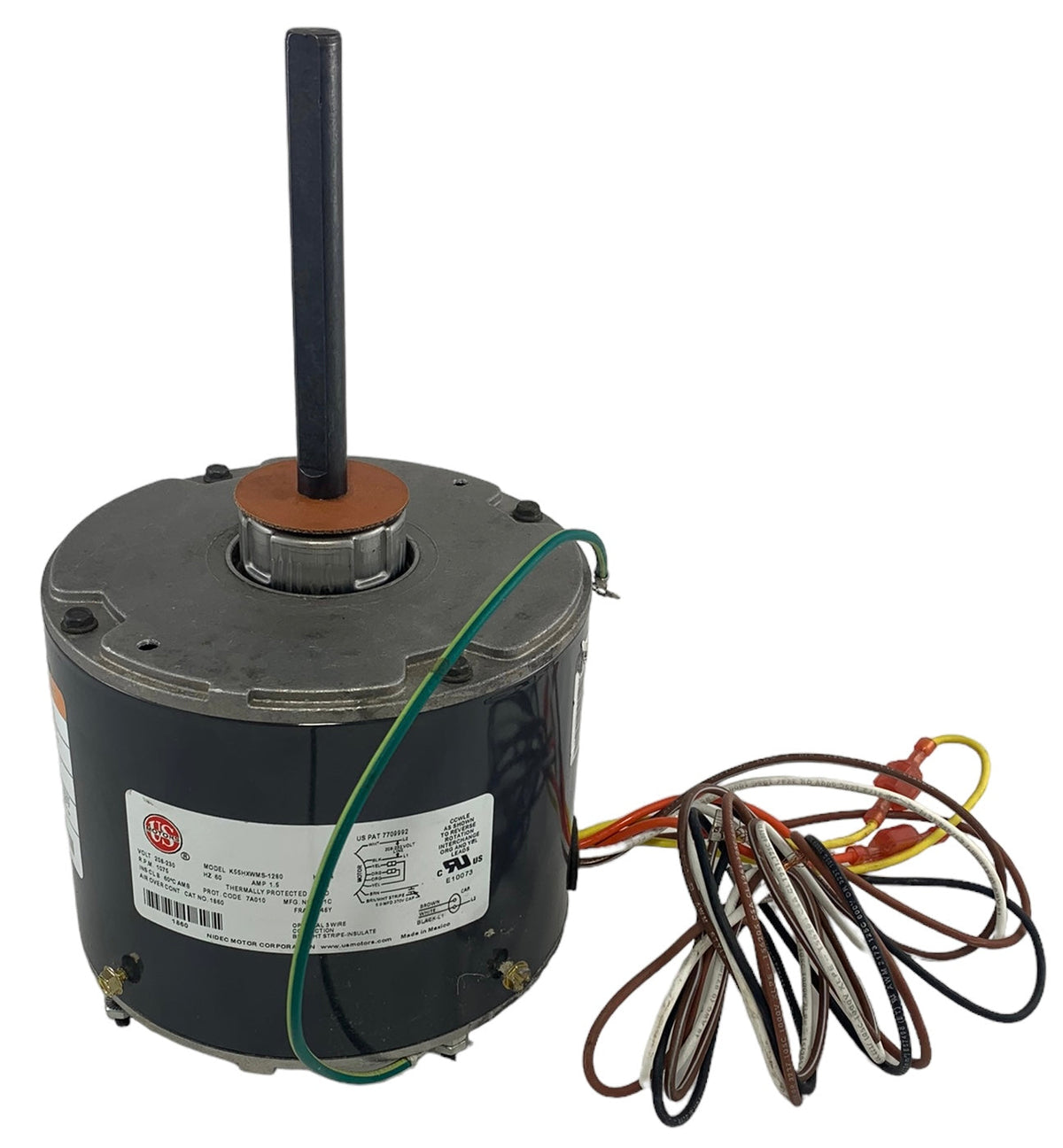

NIDEC CORP K55HXWMS-1280 - Motors/GearBox/Clutch & Motor Supplies

NIDEC CORP K55HXWMS-1280 - Motors/GearBox/Clutch & Motor Supplies

$89.96 USD
$89.96 USD
Sale Sold out
Shipping calculated at checkout.

K55HXWMS1280
MOTOR
CAT NO.: 1860
TYPE OF ELECTRICAL MOTOR: K=PERMANENT SPLIT CAPACITOR
DIAMETER OF STATOR: 5.5"
THERMAL PROTECTOR: HX
MODEL CODE: WMS
STYLE: 1280
1/4HP
1PH
60HZ
1.5AMP
208-230VAC
1075 RPM
FACTORY WARRANTY MAY NOT APPLY. 180 Day Warranty Provided by Short Circuit Solution

Location: 3J4

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for NIDEC CORP K55HXWMS-1280 - Motors/GearBox/Clutch & Motor Supplies

Efficiency Comparison Chart

Applications and Recommended Use Cases

This 0.25 HP, 1075 RPM motor is a direct-fit replacement part for residential and light-commercial HVAC equipment -- furnaces, air handlers, condensing units, or fan coils -- rather than a general-purpose industrial motor.\nBecause HVAC blower and draft motors are matched to a specific application by shaft size, rotation direction (CW/CCW), and mounting, confirm the original part or OEM cross-reference number against this listing before ordering, rather than matching on horsepower alone.\nDual-rated for 208/230V supply, matching common residential and light-commercial HVAC electrical service.\nTypical uses: furnace blower replacement, air handler fan replacement, condenser/evaporator fan replacement, and draft inducer replacement in gas furnaces.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Model/SKU: K55HXWMS-1280\nHorsepower: 0.25 HP\nSpeed: 1075 RPM\nPhase: 1-Phase\nVoltage: 208/230V

Maintenance Schedule and Requirements
