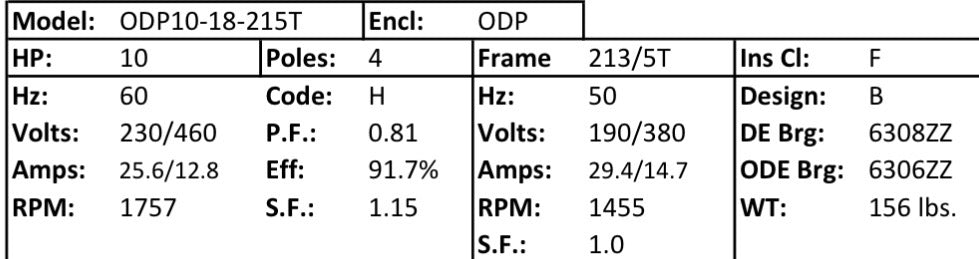

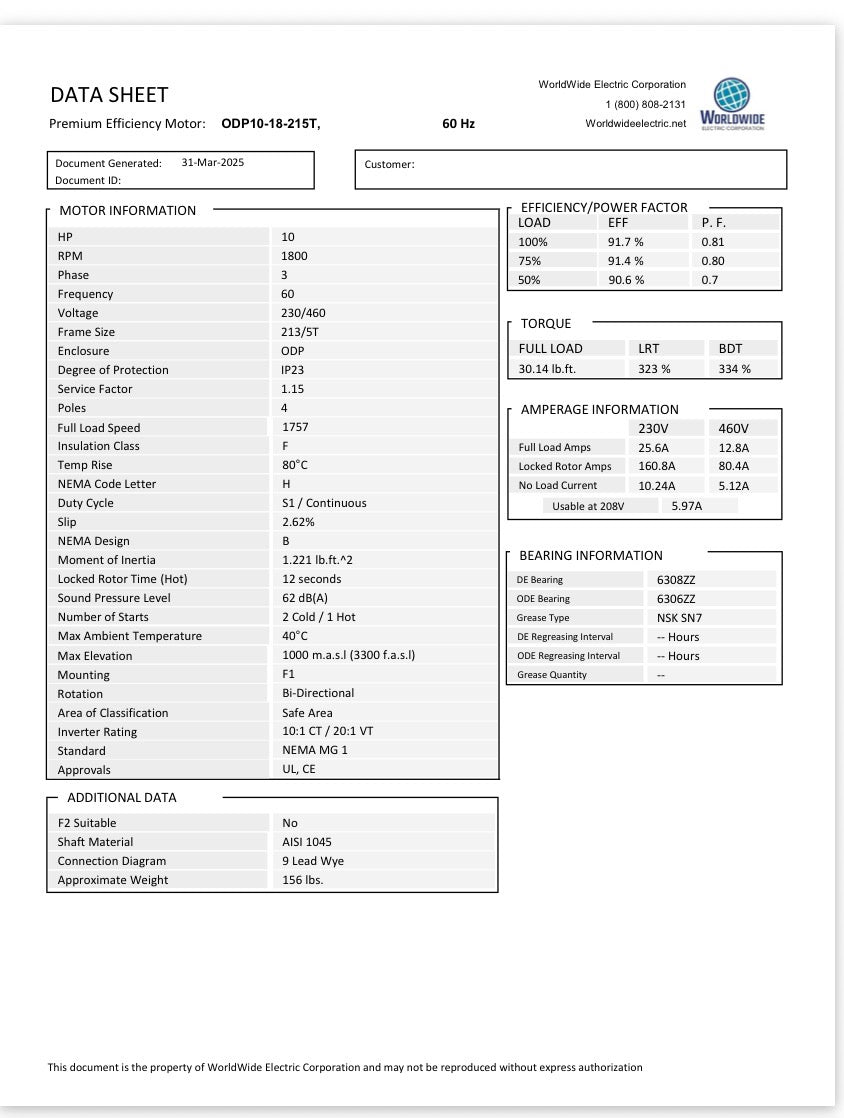

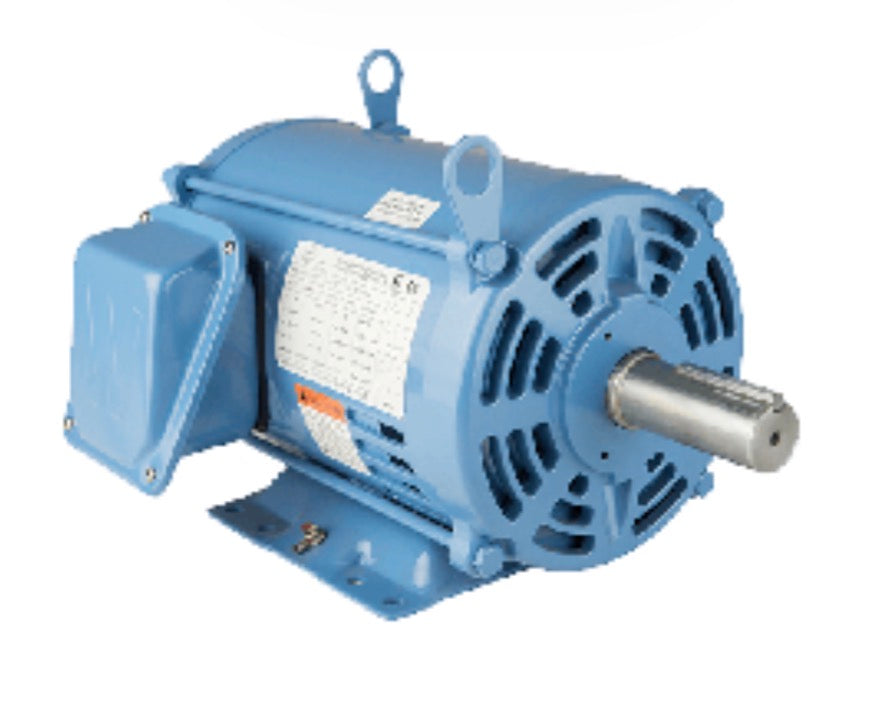

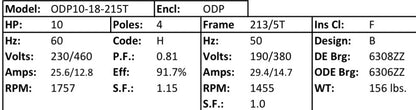

Model# ODP10-18-215T Catalog#ODP10-18-215T

ODP10-18-215T

ODP 10 HP 1800 RPM 3 PH 60 Hz

230/460V 1.15 SF 215T FRAME, ODP, GENERAL PURPOSE MOTOR, ROLLED STEEL, PREMIUM EFFICIENCY, RIGID MOUNTING

Model# ODP10-18-215T

Catalog#

ODP10-18-215T

HP

10

RPM

1800

Frame Size

215T

Voltage

230/460

Type

General Purpose

Motor Type

ODP

Web Type

WWE Horizontals

Web Brand

WorldWide Electric

Weight (lbs)

156

• Enclosure: Open Drip Proof (ODP)
• Frame Material:
• Rolled steel frame (1/2-50 HP)
• Cast iron frame (60-100 HP)
• Protection: IP23 rating
• Service Factor (SF):
• 1.15 SF (standard applications)
• 1.0 SF for 50 Hz applications
• Insulation: Class F insulation
• Base: Rigid base (56C-Face with removable base)
• Efficiency: Premium efficiency
• Temperature Rise: Class B
• Inverter Duty:
• 10:1 constant torque (CT)
• 20:1 variable torque (VT) at 1.0 SF
• Magnet Wire: Inverter grade, meets or exceeds NEMA MG-1 Part 31
• Drive Endbells: Pre-drilled and tapped on 143T frame and up
• Current Diverter Rings: No machining required
• Installation: Simple and easy installation
• Insulation System: Exclusive double Vacuum Pressure Impregnation (VPI)
• Mounting Flexibility: Double-drilled feet (143T-404T)
• Frame Conversion: 254T and larger are suitable for F1 to F2 conversion
