Mitsubishi F800E VFD - 50 HP, 460V, 3-Phase Input/Output | Model FR-F840-00770-E360

Mitsubishi F800E VFD - 50 HP, 460V, 3-Phase Input/Output | Model FR-F840-00770-E360

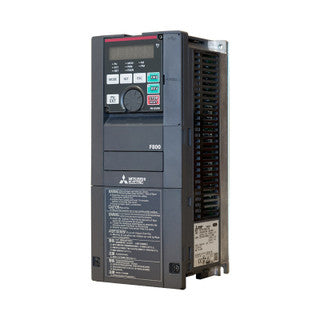

The Mitsubishi F800E VFD (Model FR-F840-00770-E360) is a high-performance 50 HP, 460V Variable Frequency Drive designed for industrial applications requiring variable torque motor control. With a rated output of 77A at 460V and 110% overload capacity up to 60 HP, this drive is ideal for heavy-duty equipment like compressors, pumps, and HVAC systems. Featuring advanced communication protocols, including Modbus TCP/IP and CC-Link IE, this VFD integrates seamlessly into complex systems. The IP00 enclosure and Mitsubishi's trusted F800E series ensure energy-efficient, reliable motor performance for large-scale operations.

  • Features and Benefits:
    • Horsepower: 50 HP with 120% overload and 60 HP at 110% overload for versatile industrial use.
    • Voltage Compatibility: 460V input/output for standard industrial motor systems.
    • Variable Torque: Optimized for applications with fluctuating load requirements.
    • Three-Phase Input/Output: Provides consistent, efficient motor performance.
    • Advanced Communication: Includes Modbus TCP/IP and CC-Link IE protocols for system integration.

Product Specifications

The Mitsubishi F800E VFD (FR-F840-00770-E360) is a robust 50 HP, 460V AC drive designed for demanding industrial variable torque applications, delivering precise and efficient motor control.

Applications and Uses

Ideal for heavy-duty variable torque applications, such as pumps, compressors, and HVAC systems, this VFD ensures reliable and efficient motor control for industrial environments.

Key Features and Benefits

  • 50 HP Capacity (60 HP Overload): Supports heavy-duty industrial applications with 120% overload at 50 HP and 110% overload at 60 HP.
  • Variable Torque: Designed for energy-efficient operation in fluctuating load environments.
  • Three-Phase Input/Output: Ensures stable motor performance in demanding setups.
  • Advanced Communication Protocols: Modbus TCP/IP and CC-Link IE for seamless system connectivity.
  • IP00 Enclosure: Requires installation within a protective enclosure or panel.

Installation and Maintenance Guidelines

Install the F800E VFD in a protected location within a compliant enclosure (IP00-rated). Ensure proper grounding and follow all setup instructions outlined in the user manual. Routine maintenance includes inspecting connections and clearing dust every 6 months, with an annual diagnostic check to maintain optimal efficiency.

Warranty and Support

The Mitsubishi F800E VFD includes a 1-year warranty covering defects in materials and workmanship. Haran Electric Motors provides full support for installation, troubleshooting, and maintenance inquiries.

View full details

In-Depth Product Information and Specifications for Mitsubishi F800E VFD - 50 HP, 460V, 3-Phase Input/Output | Model FR-F840-00770-E360

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 50 HP.\nIts variable-torque rating fits centrifugal pump and fan loads well, where torque demand falls off at lower speeds, letting the drive deliver strong energy savings under partial-load operation.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 50 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 460V\nTorque Rating: Variable Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
