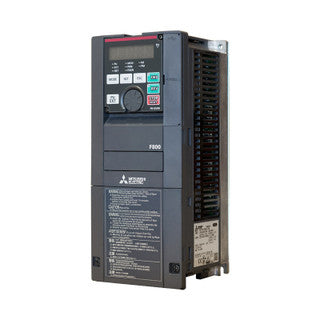

Mitsubishi F800E VFD - 40 HP, 460V, 3-Phase Input/Output | Model FR-F840-00620-E3N6

Mitsubishi F800E VFD - 40 HP, 460V, 3-Phase Input/Output | Model FR-F840-00620-E3N6

The Mitsubishi F800E VFD (Model FR-F840-00620-E3N6) is a powerful 40 HP, 460V Variable Frequency Drive engineered for industrial applications requiring variable torque motor control. With a rated output of 62A at 460V, this drive is optimized for heavy-duty equipment such as pumps, HVAC systems, and compressors. Featuring advanced Modbus TCP/IP and CC-Link IE communication protocols, three-phase input/output, and a UL Type 1-rated enclosure, this F800E series VFD delivers reliable, energy-efficient performance for large-scale industrial environments. Mitsubishi’s F800E series is renowned for its exceptional durability and cutting-edge features.

  • Features and Benefits:
    • Horsepower: 40 HP with 110% and 120% overload capabilities for demanding applications.
    • Voltage Compatibility: 460V input/output, ideal for standard industrial motor systems.
    • Variable Torque: Perfect for applications with fluctuating load requirements.
    • Three-Phase Input/Output: Ensures efficient, consistent motor performance.
    • Advanced Communication: Modbus TCP/IP and CC-Link IE protocols for enhanced integration.

Product Specifications

The Mitsubishi F800E VFD (FR-F840-00620-E3N6) is a 40 HP, 460V AC drive built for variable torque applications, delivering precise motor control in demanding industrial environments.

Applications and Uses

Designed for large-scale variable torque applications such as HVAC systems, pumps, and compressors, this VFD provides efficient motor control for reliable, continuous operation in industrial environments.

Key Features and Benefits

40 HP Capacity: Suited for heavy-duty industrial applications with 110% and 120% overload capabilities.

Variable Torque: Ideal for load-sensitive applications requiring energy efficiency.

Three-Phase Input/Output: Delivers stable, efficient motor performance.

Advanced Communication Protocols: Modbus TCP/IP and CC-Link IE integration for seamless system connectivity.

UL Type 1 Enclosure: Ensures safe, durable operation in indoor environments.

Installation and Maintenance Guidelines

Install the F800E VFD in an environment compliant with UL Type 1 standards. Ensure proper grounding and follow all setup instructions in the user manual. Routine maintenance includes inspecting connections and clearing dust every 6 months, with an annual performance diagnostic check to maintain efficiency.

Warranty and Support

The Mitsubishi F800E VFD comes with a 1-year warranty covering defects in materials and workmanship. Haran Electric Motors provides full support for installation, troubleshooting, and maintenance inquiries.

View full details

In-Depth Product Information and Specifications for Mitsubishi F800E VFD - 40 HP, 460V, 3-Phase Input/Output | Model FR-F840-00620-E3N6

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 40 HP.\nIts variable-torque rating fits centrifugal pump and fan loads well, where torque demand falls off at lower speeds, letting the drive deliver strong energy savings under partial-load operation.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 40 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 460V\nTorque Rating: Variable Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
