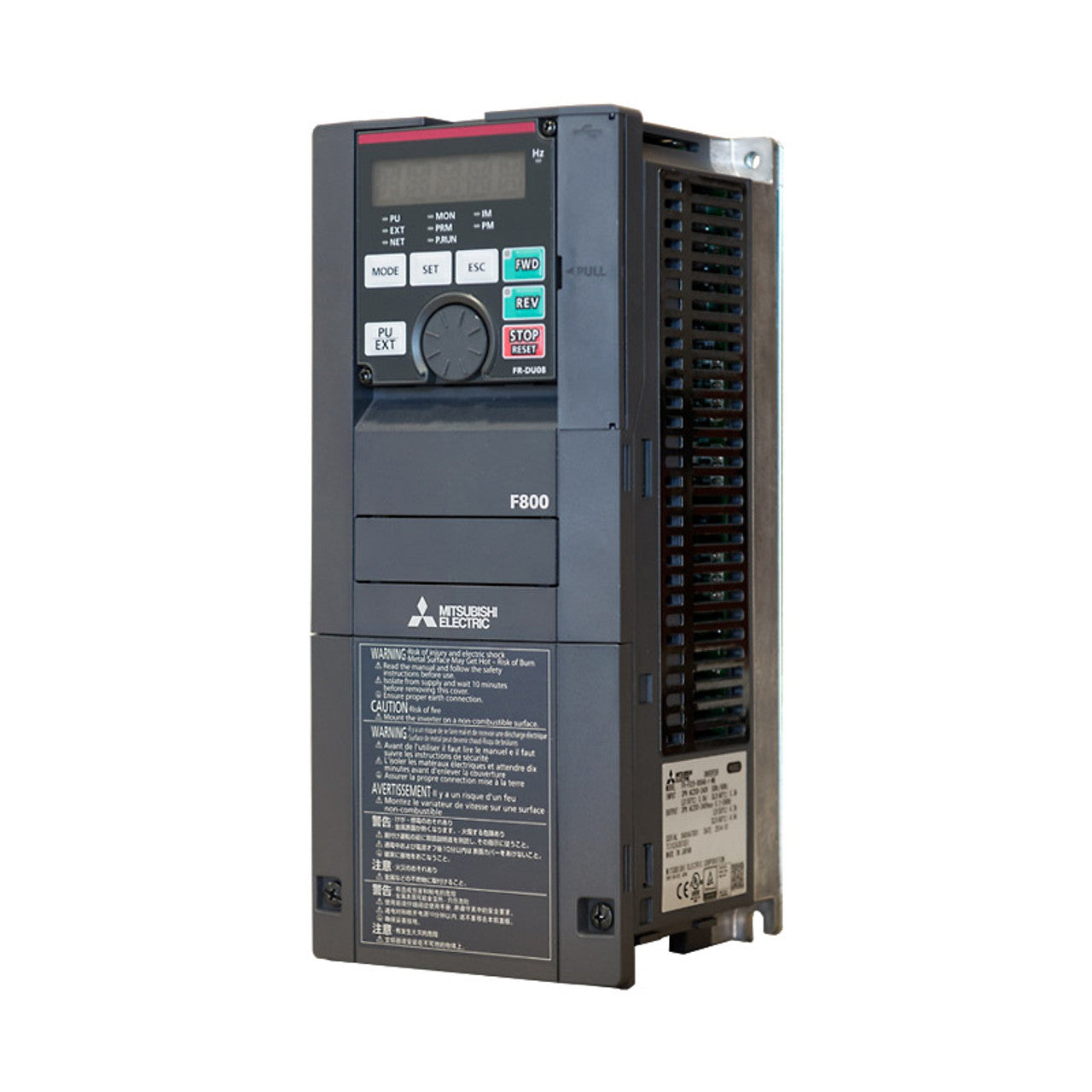

Mitsubishi F800E VFD - 30 HP, 230V, Variable Torque, UL Type 1 | Model FR-F820-00930-E3N6

Mitsubishi F800E VFD - 30 HP, 230V, Variable Torque, UL Type 1 | Model FR-F820-00930-E3N6

The Mitsubishi F800E VFD (Model FR-F820-00930-E3N6) delivers robust motor control for 30 HP applications, operating at 230V input and providing up to 93A output. With advanced variable torque capabilities, this inverter is ideal for energy-efficient motor control in demanding environments. Featuring a UL Type 1 enclosure, Modbus TCP/IP, and CC-Link IE communication protocols, this versatile drive offers seamless integration and reliable performance for industrial and commercial use.

Product Specifications

  • Horsepower: Supports up to 30 HP for powerful motor control.
  • Voltage Compatibility: 230V input and output for consistent performance.
  • Amperage Capacity: Rated at 93A output for demanding applications.
  • Variable Torque: Optimized for energy-efficient load adjustments.
  • Advanced Communication: Supports Modbus TCP/IP and CC-Link IE protocols for easy integration.
  • Robust Construction: UL Type 1 enclosure for indoor industrial environments.
  • Compact Design: Frame Size F for easier installation and space efficiency.

Applications and Uses

Ideal for fans, pumps, HVAC systems, and industrial machinery requiring efficient variable torque motor control.

Key Features and Benefits

Energy Efficient: Designed for variable torque, reducing power consumption and operational costs.

Reliable Performance: Handles up to 93A for high-demand applications.

Smart Communication: Integrated Modbus TCP/IP and CC-Link IE for smooth automation.

Durable Enclosure: UL Type 1 rated for protection in controlled environments.

Compact and Lightweight: At 37 lbs, the drive is easy to handle and install.

Installation and Maintenance Guidelines

Install in a ventilated indoor location with stable ambient conditions. Ensure proper grounding and adhere to Mitsubishi's wiring and installation standards. Conduct regular inspections to ensure longevity and optimal performance.

Warranty and Support

This Mitsubishi F800E VFD includes a 1-year warranty and full support from Denver Electric Motor Depot for installation, maintenance, and troubleshooting.

View full details

In-Depth Product Information and Specifications for Mitsubishi F800E VFD - 30 HP, 230V, Variable Torque, UL Type 1 | Model FR-F820-00930-E3N6

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 30 HP.\nIts variable-torque rating fits centrifugal pump and fan loads well, where torque demand falls off at lower speeds, letting the drive deliver strong energy savings under partial-load operation.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 30 HP\nOutput Phase: 3-Phase\nVoltage: 230V\nTorque Rating: Variable Torque

Maintenance Schedule and Requirements

Inspect Electrical Connections - Every 6 Months

Ensure all connections are secure and free of wear or corrosion.

Cooling System Maintenance - Annually

Check fans and heat sinks for dust or debris and clean as necessary.

Exterior Cleaning - Annually

Wipe down the enclosure and ventilation slots to prevent overheating.

Performance Diagnostics - Every 12 Months

Run diagnostics to verify optimal performance and address any irregularities.
