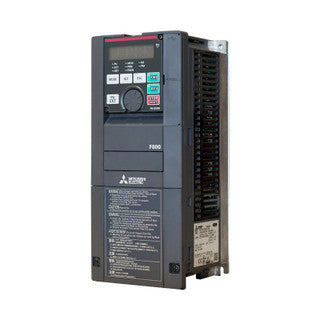

Mitsubishi F800E VFD - 3 HP, 460V, 3-Phase Input/Output | Model FR-F840-00052-E3N6

Mitsubishi F800E VFD - 3 HP, 460V, 3-Phase Input/Output | Model FR-F840-00052-E3N6

The Mitsubishi F800E VFD (Model FR-F840-00052-E3N6) is a versatile 3 HP, 460V Variable Frequency Drive designed to handle variable torque applications with precision and reliability. Rated for 5A at 460V, this VFD is ideal for small-scale applications such as fans, pumps, and HVAC systems. With advanced features like Modbus TCP/IP and CC-Link IE communication protocols, three-phase input/output, and a UL Type 1-rated enclosure, this drive integrates seamlessly into complex systems, ensuring efficient and consistent motor control. Mitsubishi’s F800E series is recognized for high-quality performance in both commercial and industrial environments.

Features and Benefits:

  • Horsepower: 3 HP with overload capabilities of 110% and 120%, ideal for small- to medium-duty applications.
  • Voltage Compatibility: 460V input/output, designed for standard industrial motor setups.
  • Variable Torque: Perfect for applications with changing load demands.
  • Three-Phase Input/Output: Supports stable, efficient motor performance.
  • Communication: Integrated Modbus TCP/IP and CC-Link IE protocols for streamlined system integration.

Product Specifications

The Mitsubishi F800E VFD (FR-F840-00052-E3N6) is a 3 HP, 460V AC drive optimized for variable torque applications, providing reliable motor control for small industrial and commercial systems.

Applications and Uses

Ideal for small-scale variable torque applications such as fans, pumps, and HVAC systems, this VFD delivers efficient motor control for consistent performance in commercial and industrial settings

Key Features and Benefits

3 HP Capacity: Supports small- to medium-duty applications with 110% and 120% overload capability.

Variable Torque: Suited for applications with fluctuating load requirements.

Three-Phase Input/Output: Ensures efficient, stable motor performance.

Advanced Communication: Includes Modbus TCP/IP and CC-Link IE protocols for enhanced connectivity.

Durable Enclosure: UL Type 1-rated for safe indoor use.

Installation and Maintenance Guidelines

Install the F800E VFD in a UL Type 1-compliant indoor environment. Ensure proper grounding and follow all setup guidelines as outlined in the user manual. Routine maintenance includes inspecting connections and clearing dust every 6 months, with an annual performance diagnostic check to maintain peak performance.

Warranty and Support

The Mitsubishi F800E VFD includes a 1-year warranty covering defects in materials and workmanship. Denver Electric Motor Depot provides full support for installation, troubleshooting, and maintenance inquiries.

View full details

In-Depth Product Information and Specifications for Mitsubishi F800E VFD - 3 HP, 460V, 3-Phase Input/Output | Model FR-F840-00052-E3N6

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 3 HP.\nIts variable-torque rating fits centrifugal pump and fan loads well, where torque demand falls off at lower speeds, letting the drive deliver strong energy savings under partial-load operation.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 3 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 460V\nTorque Rating: Variable Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
