Mitsubishi F800E VFD - 20HP, 230V, 3-Phase | Model FR-F820-00630-E3N6

Mitsubishi F800E VFD - 20HP, 230V, 3-Phase | Model FR-F820-00630-E3N6

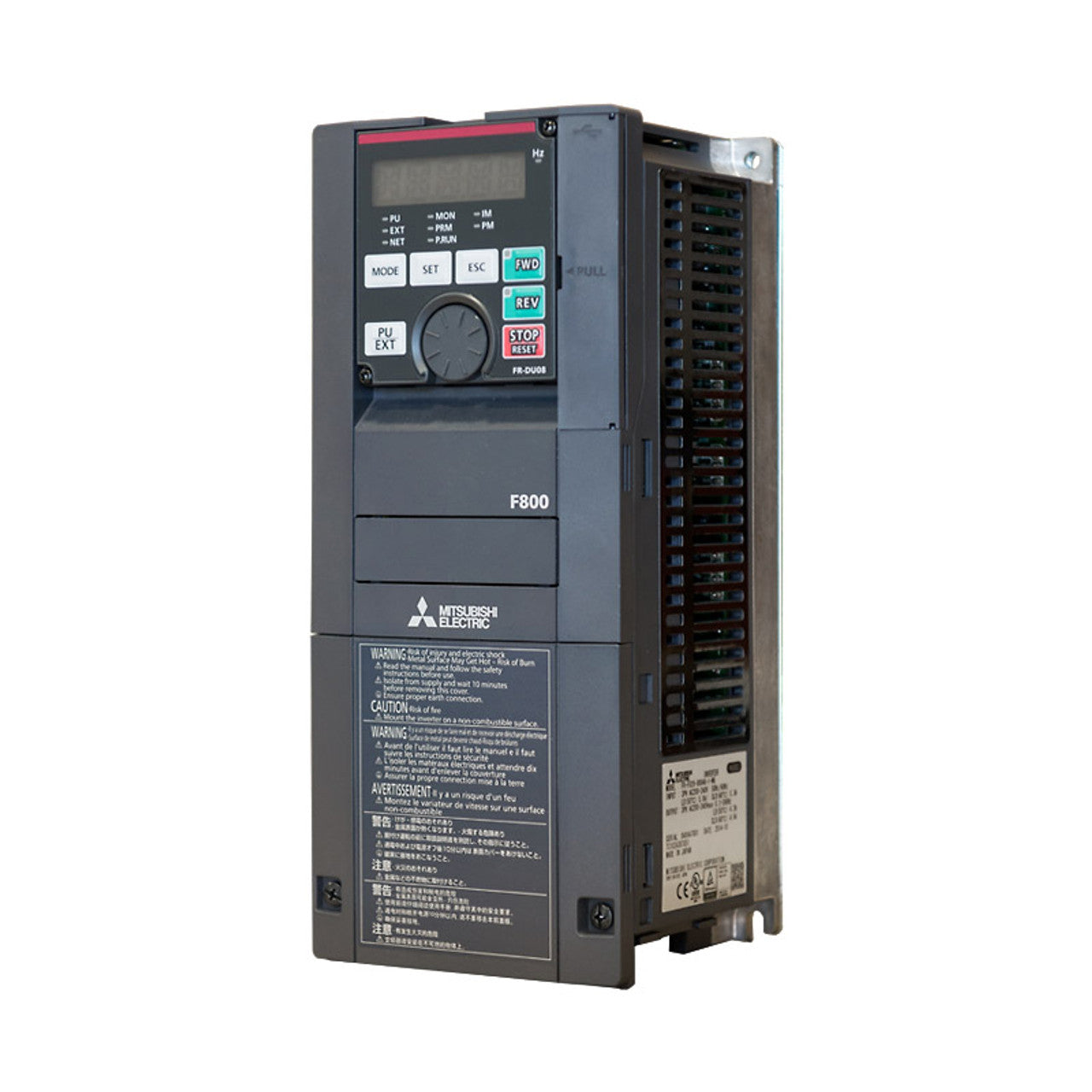

The Mitsubishi F800E VFD (Model FR-F820-00630-E3N6) offers superior motor control with a 20HP capacity and advanced communication features. Designed for high efficiency and reliability, this inverter drive is perfect for demanding industrial applications requiring variable torque performance

Product Specifications

Powerful Performance: Handles up to 20HP with consistent efficiency under variable torque applications.

Advanced Overload Capacity: Operates reliably with 110% and 120% overload ratings.

Connectivity Options: Equipped with Modbus TCP/IP and CC-Link IE for seamless integration.

Compact and Durable: UL Type 1 enclosure ensures durability for indoor use.

Precision Control: Optimized motor speed management enhances energy savings and operational accuracy.

Applications and Uses

HVAC Systems: Perfect for controlling fans and blowers.

Pumping Solutions: Ideal for water and fluid management systems.

Material Handling: Efficient for conveyor and material transport systems.

Industrial Automation: Supports a range of automated processes in manufacturing and processing plants.

Key Features and Benefits

Voltage Compatibility: Supports 230V input and output, ideal for standard industrial power systems.

Overload Ratings: Handles 63A at 110% overload and 58A at 120% overload for robust performance.

Enhanced Communication: Features Modbus TCP/IP and CC-Link IE protocols for system integration.

Energy Efficiency: Reduces power consumption with precise variable speed control.

Durable Frame: Frame size E design for compact, efficient operation.

Installation and Maintenance Guidelines

Installation Guidelines

  • Pre-Installation Checklist:
  • Step-by-Step Installation:
  • Safety Notes:

Maintenance Requirements

Routine Maintenance

  • Monthly Checks:
  • Quarterly Checks:
  • Annual Maintenance:

Replacement Parts and Accessories

  • Mitsubishi provides readily available spare parts, including cooling fans and communication modules, ensuring minimal downtime in the event of maintenance or repairs.

Warranty and Support

This Mitsubishi F800E VFD comes with a 1-Year Manufacturer's Warranty, covering any defects in materials or workmanship under normal use.

View full details

In-Depth Product Information and Specifications for Mitsubishi F800E VFD - 20HP, 230V, 3-Phase | Model FR-F820-00630-E3N6

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 20 HP.\nIts variable-torque rating fits centrifugal pump and fan loads well, where torque demand falls off at lower speeds, letting the drive deliver strong energy savings under partial-load operation.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 20 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 230V\nTorque Rating: Variable Torque

Maintenance Schedule and Requirements

Inspect Electrical Connections - Every 6 Months

Check for loose, damaged, or corroded connections.

Clean VFD Exterior - Every 6 Months

Dust off the unit and ensure proper ventilation by cleaning cooling vents.

Monitor Performance - Monthly

Review operational parameters to ensure proper load and speed control.

Firmware Updates - As Needed

Install updates for enhanced performance and bug fixes.

Run Full Diagnostics - Annually

Perform a full system test to identify and rectify potential issues.
