Mitsubishi F800E VFD - 10 HP, 460V, 3-Phase Input/Output, Modbus TCP/IP | Model FR-F840-00170-E3N6

Mitsubishi F800E VFD - 10 HP, 460V, 3-Phase Input/Output, Modbus TCP/IP | Model FR-F840-00170-E3N6

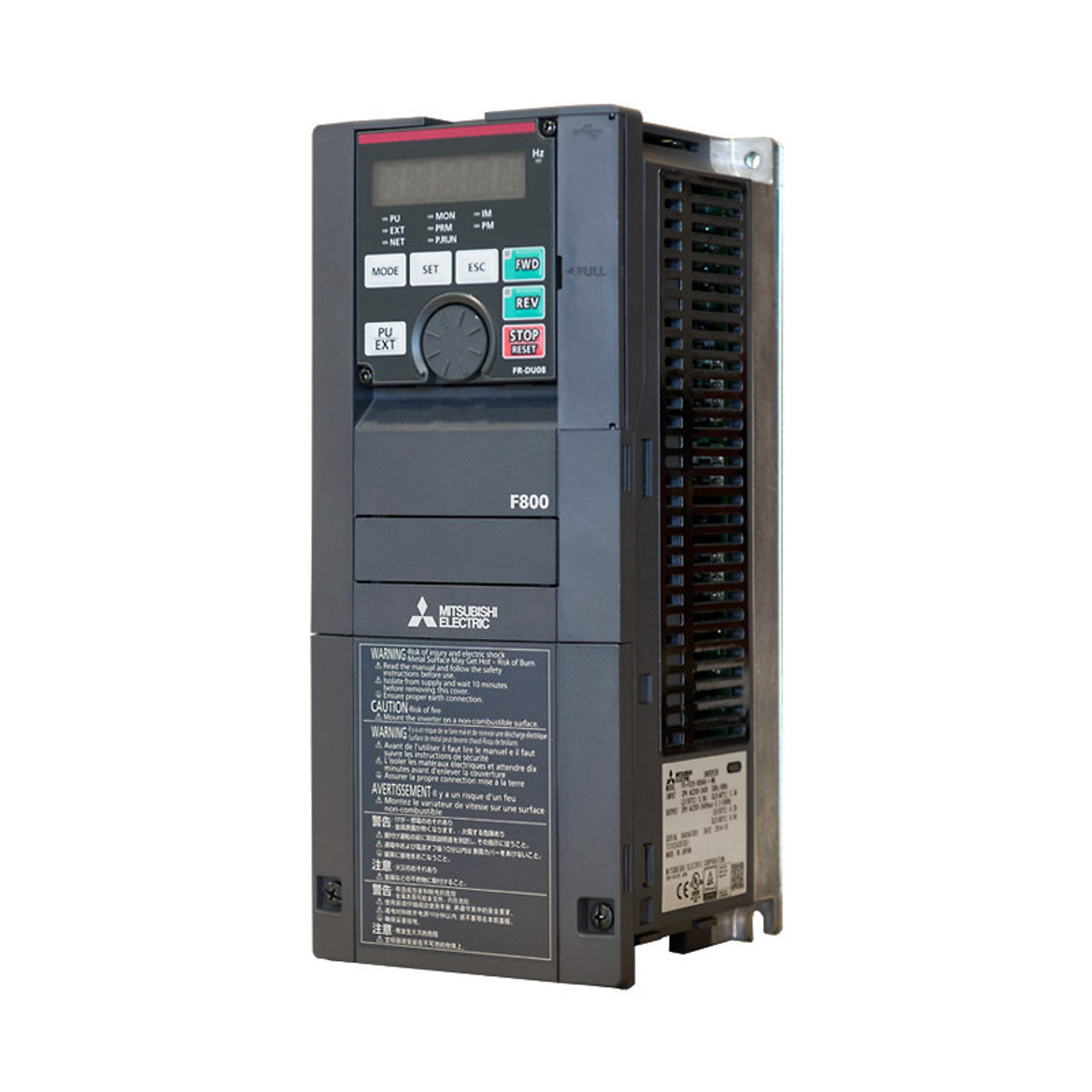

The Mitsubishi F800E VFD (Model FR-F840-00170-E3N6) is a versatile 10 HP, 460V Variable Frequency Drive built for industrial applications that demand efficient variable torque control. This VFD is rated for 17A at 110% overload and 16A at 120% overload, making it ideal for applications such as HVAC systems, fans, and pumps. Featuring Modbus TCP/IP and CC-Link IE communication protocols, the F800E is perfect for connected systems requiring remote monitoring and control. Its UL Type 1 enclosure ensures safe indoor use, while the compact frame size D allows for easy integration. Supported by a 1-year warranty, the F800E provides reliable, efficient motor control for high-demand environments."

  • Features and Benefits:
    • Horsepower: Rated at 10 HP with both 110% and 120% overload capabilities for variable load demands.
    • Voltage Compatibility: 460V input/output, suitable for industrial motor systems.
    • Variable Torque Control: Ideal for applications with variable load demands, such as HVAC, fans, and pumps.
    • Advanced Communication: Supports Modbus TCP/IP and CC-Link IE, allowing seamless integration in networked systems.
    • Enclosure: UL Type 1-rated for safe indoor installations.

Product Specifications

The Mitsubishi F800E VFD (FR-F840-00170-E3N6) is a 10 HP, 460V AC drive with three-phase input and output. With support for Modbus TCP/IP and CC-Link IE, this drive is optimized for connected applications where efficient variable torque control is essential.

Applications and Uses

This VFD is designed for industrial systems that require variable torque, such as HVAC systems, fans, and pumps. It is ideal for installations needing remote connectivity, energy savings, and precise motor control

Key Features and Benefits

10 HP Capacity: Suitable for medium-duty applications with both 110% and 120% overload support.

Variable Torque: Optimized for variable load applications, enhancing energy efficiency.

Three-Phase Input/Output: Standard for industrial motor systems, offering consistent power.

Communication Protocols: Supports Modbus TCP/IP and CC-Link IE for networked applications.

Durable Indoor Design: UL Type 1-rated enclosure for safe use in controlled environments.

Installation and Maintenance Guidelines

Install the F800E VFD in a well-ventilated indoor environment suitable for UL Type 1-rated equipment. Follow grounding and installation instructions per the manual. Maintenance includes inspecting connections and cleaning dust buildup every 6 months, with an annual full diagnostic test to maintain performance.

Warranty and Support

This Mitsubishi F800E VFD includes a 1-year warranty. Haran Electric Motors provides installation and maintenance support to ensure dependable operation.

View full details

In-Depth Product Information and Specifications for Mitsubishi F800E VFD - 10 HP, 460V, 3-Phase Input/Output, Modbus TCP/IP | Model FR-F840-00170-E3N6

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 10 HP.\nIts variable-torque rating fits centrifugal pump and fan loads well, where torque demand falls off at lower speeds, letting the drive deliver strong energy savings under partial-load operation.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 10 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 460V\nTorque Rating: Variable Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Listen for unusual sounds or vibrations that could indicate wear or potential issues.

Firmware Update Check - Every 12 Months

Verify if any firmware updates are available and apply them to ensure compatibility with connected systems and optimal performance.
