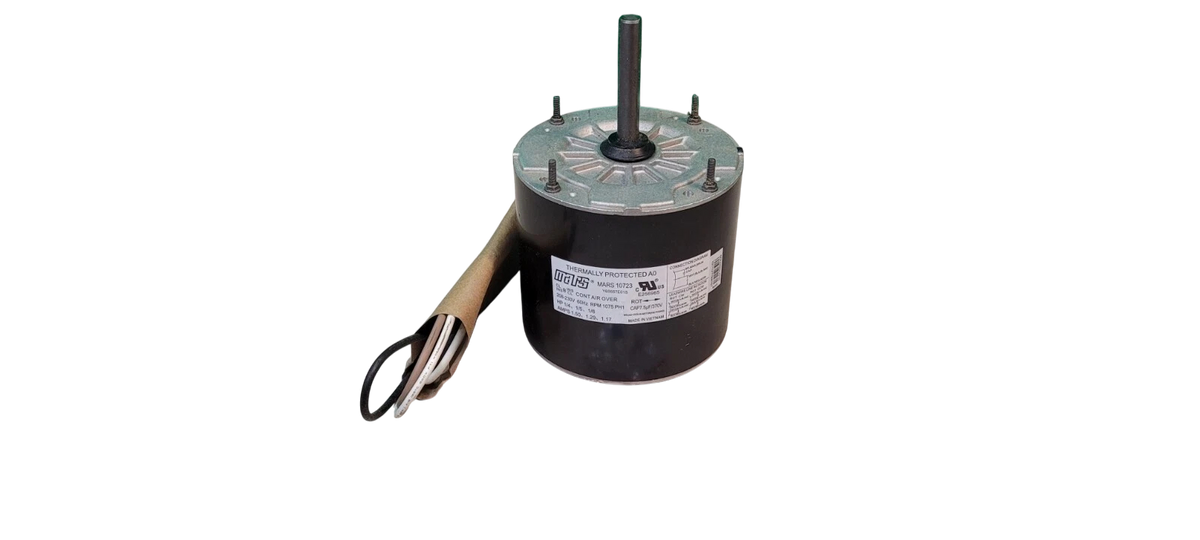

MARS 10723 Multi-HP Condenser Fan Motor Super-Fit 1/6 to 1/4 HP 208 to 230V, 1 Speed

MARS 10723 Multi-HP Condenser Fan Motor Super-Fit 1/6 to 1/4 HP 208 to 230V, 1 Speed

$79.96 USD
$79.96 USD
Sale Sold out
Shipping calculated at checkout.

180-Day Warranty!

Model: MARS Multi-HP Super-Fit

Location: 01K4

Horsepower: 1/6 → 1/4 HP

Voltage: 208–230V

Phase: 1 PH

RPM: 1075

Speed: 1-Speed

Frame: 42

Rotation: Reversible

Mounting: All-angle / Super-Fit mount

Shaft: 1/2" diameter

Enclosure: TEAO (Totally Enclosed Air-Over)

Application: Condenser fan motor

Notice: Pulled from a working unit and fully tested. Guaranteed to function as intended.

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for MARS 10723 Multi-HP Condenser Fan Motor Super-Fit 1/6 to 1/4 HP 208 to 230V, 1 Speed

Efficiency Comparison Chart

Applications and Recommended Use Cases

This 0.25 HP motor is a direct-fit replacement part for residential and light-commercial HVAC equipment -- furnaces, air handlers, condensing units, or fan coils -- rather than a general-purpose industrial motor.\nBecause HVAC blower and draft motors are matched to a specific application by shaft size, rotation direction (CW/CCW), and mounting, confirm the original part or OEM cross-reference number against this listing before ordering, rather than matching on horsepower alone.\nTypical uses: furnace blower replacement, air handler fan replacement, condenser/evaporator fan replacement, and draft inducer replacement in gas furnaces.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Model/SKU: '10723\nHorsepower: 0.25 HP\nPhase: 1-Phase\nVoltage: 230V\nEnclosure: TEAO

Maintenance Schedule and Requirements
