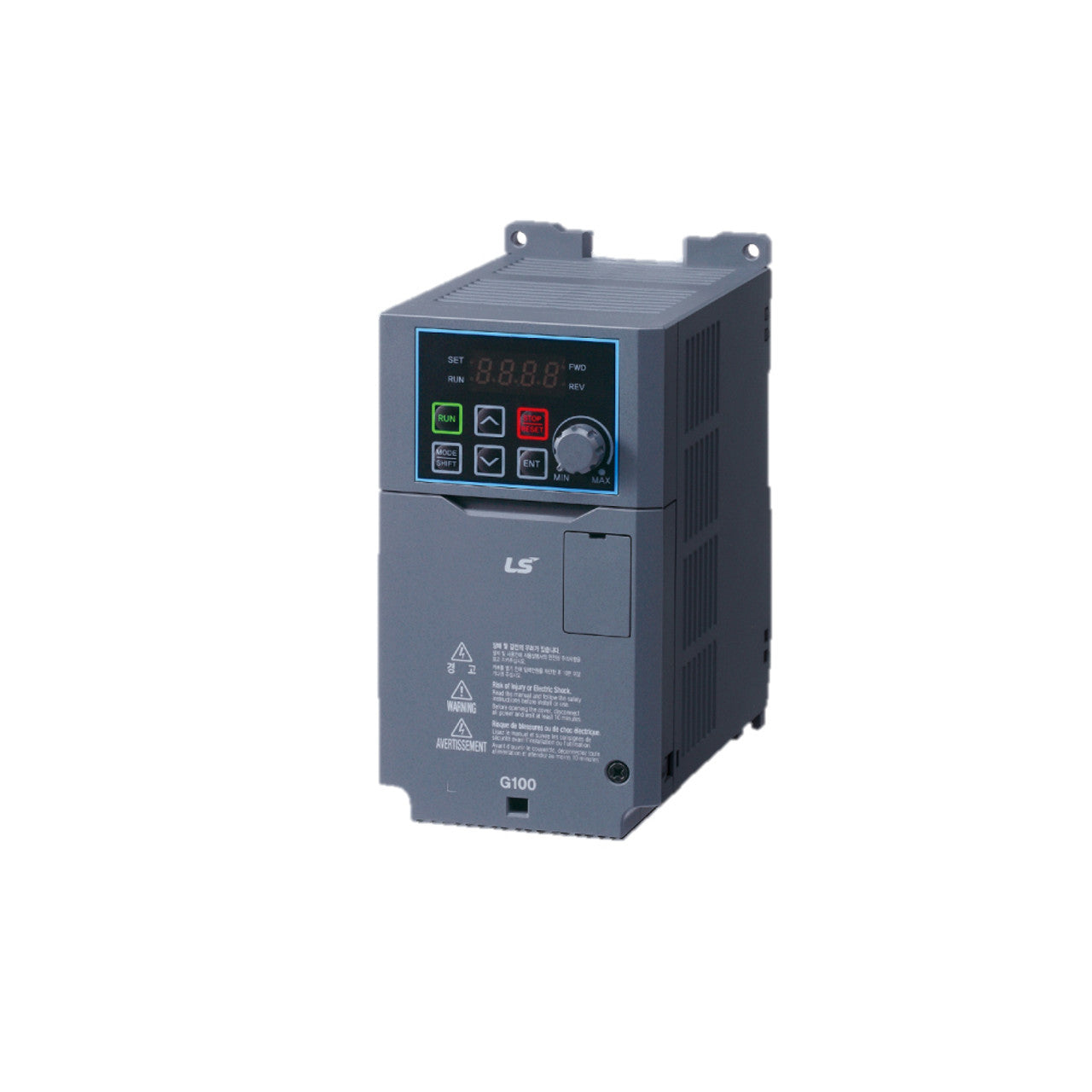

LS Electric G100 VFD - 7.5HP & 5HP, 460V, Variable/Constant Torque | Model LSLV0040G100-4EOFN

LS Electric G100 VFD - 7.5HP & 5HP, 460V, Variable/Constant Torque | Model LSLV0040G100-4EOFN

Optimize motor control with the LS Electric G100 VFD (Model LSLV0040G100-4EOFN). Supporting dual horsepower ratings of 7.5HP at 120% overload and 5HP at 150% overload, this VFD delivers unmatched performance for a variety of industrial and commercial applications.

Product Specifications

Dual Horsepower Ratings: Suitable for 7.5HP at 120% OL and 5HP at 150% OL, accommodating various motor loads.

Efficient Current Management: Handles up to 10A output current for reliable motor operation.

Compact and Durable: Weighs only 5.88 lbs, with an IP 20 enclosure for controlled environments.

Energy-Efficient Design: Reduces power consumption through advanced motor control technology.

Reliable Warranty: Backed by a 2-year warranty from LS Electric for peace of mind.

Applications and Uses

HVAC Systems: Enhances the efficiency of fans, pumps, and compressors.

Industrial Processes: Ideal for conveyors, mixers, and material-handling equipment.

Agricultural Use: Supports irrigation systems and agricultural machinery.

OEM and Retrofitting: Great for new installations or upgrading older systems.

Key Features and Benefits

High Voltage Operation: Compatible with 480V three-phase systems.

Overload Capacity: Designed for demanding industrial start-ups and consistent load performance.

User-Friendly Interface: Simplifies setup and operation with intuitive controls.

Rugged Design: Built to last with high-quality components and an IP 20 rating.

Installation and Maintenance Guidelines

Install in a clean, well-ventilated space. Regularly inspect connections and clear cooling vents for optimal performance. Follow all local codes and safety standards during installation and maintenance.

Warranty and Support

Covered by a 2-year warranty from LS Electric, ensuring expert support and reliable service from Denver Electric Motor Depot.

View full details

In-Depth Product Information and Specifications for LS Electric G100 VFD - 7.5HP & 5HP, 460V, Variable/Constant Torque | Model LSLV0040G100-4EOFN

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 5 HP.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 5 HP\nOutput Phase: 3-Phase\nVoltage: 460V\nTorque Rating: Both Torque

Maintenance Schedule and Requirements

Inspect Electrical Connections - Every 6 Months

Verify all terminal connections are secure and free from corrosion or debris.

Clean Cooling Vents and Fans - Annually

Remove dust buildup to maintain proper ventilation and prevent overheating.

Firmware Updates - As Needed

Check for and apply firmware updates to ensure optimal performance and features.

Run Diagnostics - Annually

Utilize system diagnostic tools to identify and resolve potential issues early.
