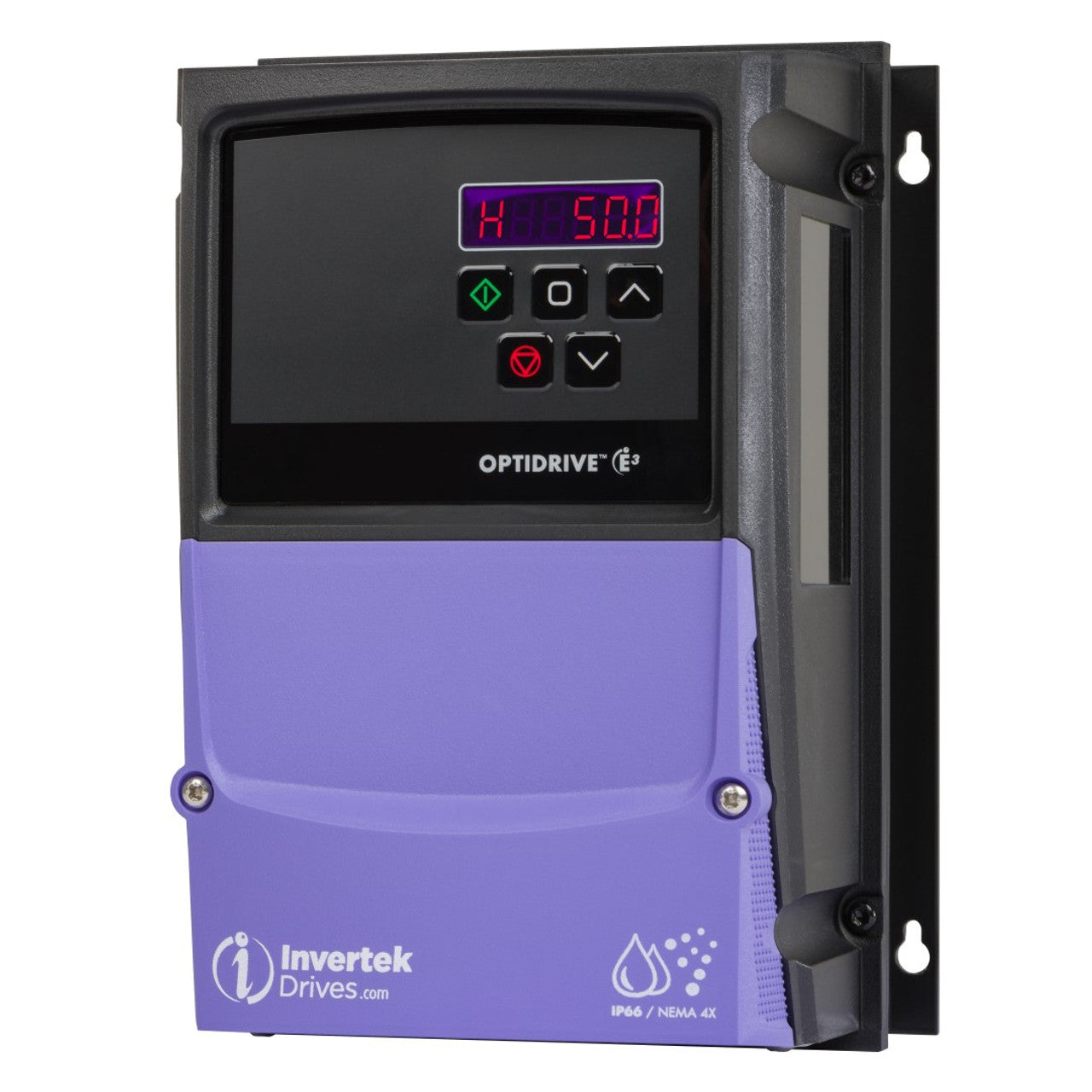

Invertek Optidrive E3 VFD - 1 HP, 115V Input, IP66 Enclosure | Model ODE-3-110043-101A

Invertek Optidrive E3 VFD - 1 HP, 115V Input, IP66 Enclosure | Model ODE-3-110043-101A

The Invertek Optidrive E3 VFD (Model ODE-3-110043-101A) is a reliable and compact 1 HP, 115V Variable Frequency Drive designed for precision motor control and energy efficiency. It features a 240V output and a rated current of 4.3A, making it suitable for both constant and variable torque applications such as fans, pumps, and small conveyors. Its rugged IP66 enclosure provides protection against dust and water, ensuring durability in harsh environments. Backed by a 2-year warranty, this drive delivers exceptional performance for industrial and commercial applications.

Features and Benefits:

  • Horsepower: 1 HP for small-scale motor control tasks.
  • Voltage Flexibility: Accepts 115V input and provides 240V output.
  • Energy Efficiency: Supports both constant and variable torque operations.
  • Rugged IP66 Design: Resistant to dust and water for long-lasting durability.
  • Compact and Lightweight: Easy to install and maintain.

Product Specifications

The Invertek Optidrive E3 VFD (ODE-3-110043-101A) combines advanced motor control, energy efficiency, and robust design for industrial and commercial environments.

Applications and Uses

Perfect for applications such as fans, pumps, and small conveyors, this VFD provides efficient and reliable motor control for both indoor and outdoor use.

Key Features and Benefits

  • 1 HP Capacity: Ideal for smaller motors.
  • Wide Voltage Compatibility: Operates with a 115V input and delivers 240V output.
  • Dual Torque Operation: Suitable for both constant and variable torque needs.
  • Rugged IP66 Enclosure: Withstands exposure to dust and water for outdoor and industrial environments.
  • Warranty Assurance: Comes with a 2-year warranty for peace of mind.

Installation and Maintenance Guidelines

Install the Optidrive E3 VFD in a secure, ventilated location that meets IP66 standards. Follow proper wiring and grounding practices as outlined in the user manual. Perform regular inspections of connections and clean the enclosure every 6 months. An annual diagnostic review is recommended for optimal performance.

Warranty and Support

This Invertek Optidrive E3 VFD includes a 2-year warranty covering defects in materials and workmanship. Denver Electric Motor Depot provides comprehensive support for installation, troubleshooting, and maintenance inquiries

View full details

In-Depth Product Information and Specifications for Invertek Optidrive E3 VFD - 1 HP, 115V Input, IP66 Enclosure | Model ODE-3-110043-101A

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, stepping down from a 1-phase supply, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 1 HP.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 1 HP\nInput Phase: 1-Phase\nOutput Phase: 3-Phase\nVoltage: 115V\nTorque Rating: Both Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from the enclosure and vents to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a diagnostic test to ensure optimal operation. Address any unusual noise, vibration, or overheating promptly.
