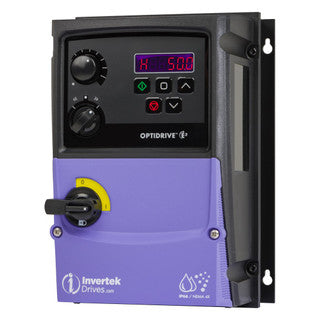

Invertek OptiDrive E3 VFD - 0.5 HP, 480V, 3-Phase Input/Output | Model ODE-3-140012-3F1B

Invertek OptiDrive E3 VFD - 0.5 HP, 480V, 3-Phase Input/Output | Model ODE-3-140012-3F1B

The Invertek OptiDrive E3 VFD (Model ODE-3-140012-3F1B) is a compact and efficient 0.5 HP, 480V Variable Frequency Drive designed for industrial and commercial motor control applications. Rated for 1.2A at 480V, this drive delivers reliable performance for small motors in HVAC, conveyor systems, and fan control. Featuring an IP66-rated enclosure for superior protection against dust and water, the OptiDrive E3 series ensures durability in challenging environments. Backed by a 2-year warranty, this VFD combines energy efficiency, precision control, and ease of use.

  • Features and Benefits:
    • Horsepower: 0.5 HP for small motor applications.
    • Voltage Compatibility: 480V input/output for industrial systems.
    • Energy Efficiency: Optimized for variable and constant torque applications.
    • Three-Phase Input/Output: Provides stable and reliable power delivery.
    • Rugged Design: IP66-rated enclosure offers protection against dust and water for outdoor and harsh environments.

Product Specifications

The Invertek OptiDrive E3 VFD (ODE-3-140012-3F1B) is a high-performance 0.5 HP, 480V AC drive delivering precise motor control and energy efficiency in demanding environments.

Applications and Uses

Ideal for small motors in applications such as conveyors, fans, and HVAC systems, this VFD provides precise motor control and superior protection in industrial and commercial settings.

Key Features and Benefits

0.5 HP Capacity: Compact and efficient for small motor control applications.

Energy-Efficient Operation: Reduces energy costs with optimized variable torque performance.

Three-Phase Input/Output: Provides stable and reliable power for consistent motor operation.

Durable Design: IP66-rated enclosure ensures protection from dust, water, and harsh environments.

Extended Warranty: Includes a 2-year warranty for dependable performance.

Installation and Maintenance Guidelines

Install the OptiDrive E3 VFD in a secure location compliant with IP66 standards. Follow proper grounding and wiring practices as outlined in the user manual. Routine maintenance includes inspecting connections and clearing dust every 6 months, with an annual diagnostic check for optimal performance.

Warranty and Support

The Invertek OptiDrive E3 VFD includes a 2-year warranty covering defects in materials and workmanship. Haran Electric Motors provides full support for installation, troubleshooting, and maintenance inquiries.

View full details

In-Depth Product Information and Specifications for Invertek OptiDrive E3 VFD - 0.5 HP, 480V, 3-Phase Input/Output | Model ODE-3-140012-3F1B

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 0.5 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 0.5 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 480V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
