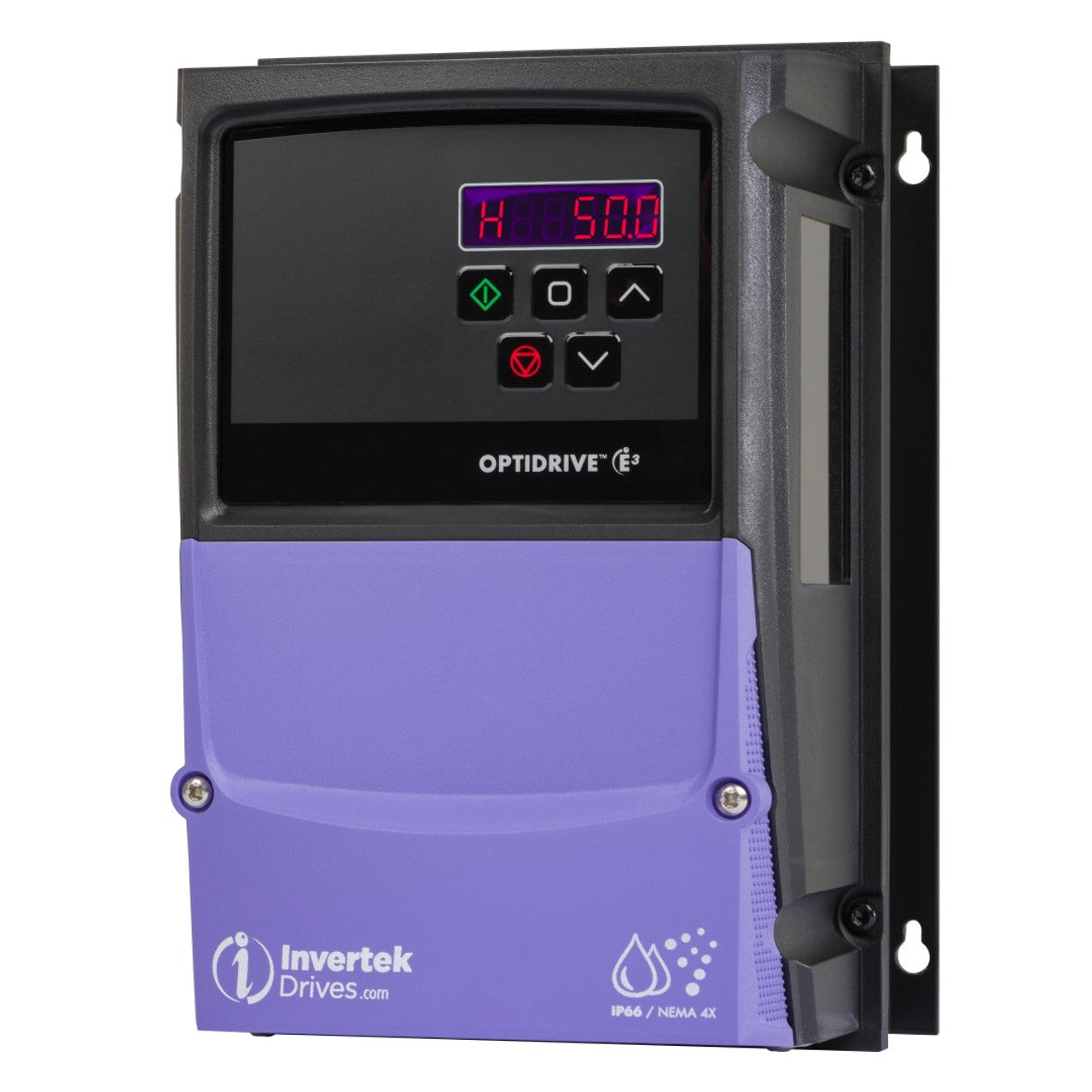

Invertek Optidrive E3 VFD - 0.5 HP, 230V, IP66 Enclosure | Model ODE-3-120023-301A

Invertek Optidrive E3 VFD - 0.5 HP, 230V, IP66 Enclosure | Model ODE-3-120023-301A

The Invertek Optidrive E3 VFD (Model ODE-3-120023-301A) is a compact and reliable 0.5 HP, 230V Variable Frequency Drive tailored for industrial and commercial motor control applications. Rated for 2.3A at 240V, this drive supports both constant and variable torque setups, making it ideal for fans, small conveyors, and pumps. With an IP66-rated enclosure, it offers exceptional protection against dust and water, ensuring reliable operation in demanding environments. Backed by a 2-year warranty, the Optidrive E3 series provides outstanding energy efficiency and dependable performance for smaller motor applications."

Features and Benefits:

  • Horsepower: 0.5 HP, ideal for small industrial motor control needs.
  • Voltage Compatibility: 230V input, 240V output for versatile operation.
  • Energy Efficiency: Supports both constant and variable torque applications.
  • Durable Construction: IP66-rated enclosure for robust environmental protection.
  • Compact Design: Built for precision and reliable operation in demanding settings.

Product Specifications

The Invertek Optidrive E3 VFD (ODE-3-120023-301A) combines durability, efficiency, and advanced motor control features to meet industrial and commercial needs in challenging environments.

Applications and Uses

Ideal for fans, small conveyors, and pumps, this VFD is designed to provide precision motor control and energy savings for demanding industrial and commercial applications

Key Features and Benefits

0.5 HP Capacity: Suitable for smaller motor control tasks.

Dual Torque Operation: Handles both constant and variable torque setups.

High Voltage Compatibility: Operates at 230V input and 240V output.

Rugged IP66 Enclosure: Offers superior protection from dust and water for use in challenging environments.

Dependable Warranty: Includes a 2-year warranty for peace of mind.

Installation and Maintenance Guidelines

Install the Optidrive E3 VFD in a location that meets IP66 standards. Follow proper wiring and grounding practices as per the user manual. Regular maintenance includes checking electrical connections and cleaning the enclosure exterior every 6 months, with a comprehensive diagnostic check annually

Warranty and Support

This Invertek Optidrive E3 VFD comes with a 2-year warranty covering defects in materials and workmanship. Haran Electric Motors provides complete support for installation, troubleshooting, and maintenance.

View full details

In-Depth Product Information and Specifications for Invertek Optidrive E3 VFD - 0.5 HP, 230V, IP66 Enclosure | Model ODE-3-120023-301A

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 0.5 HP.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 0.5 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 230V\nTorque Rating: Both Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
