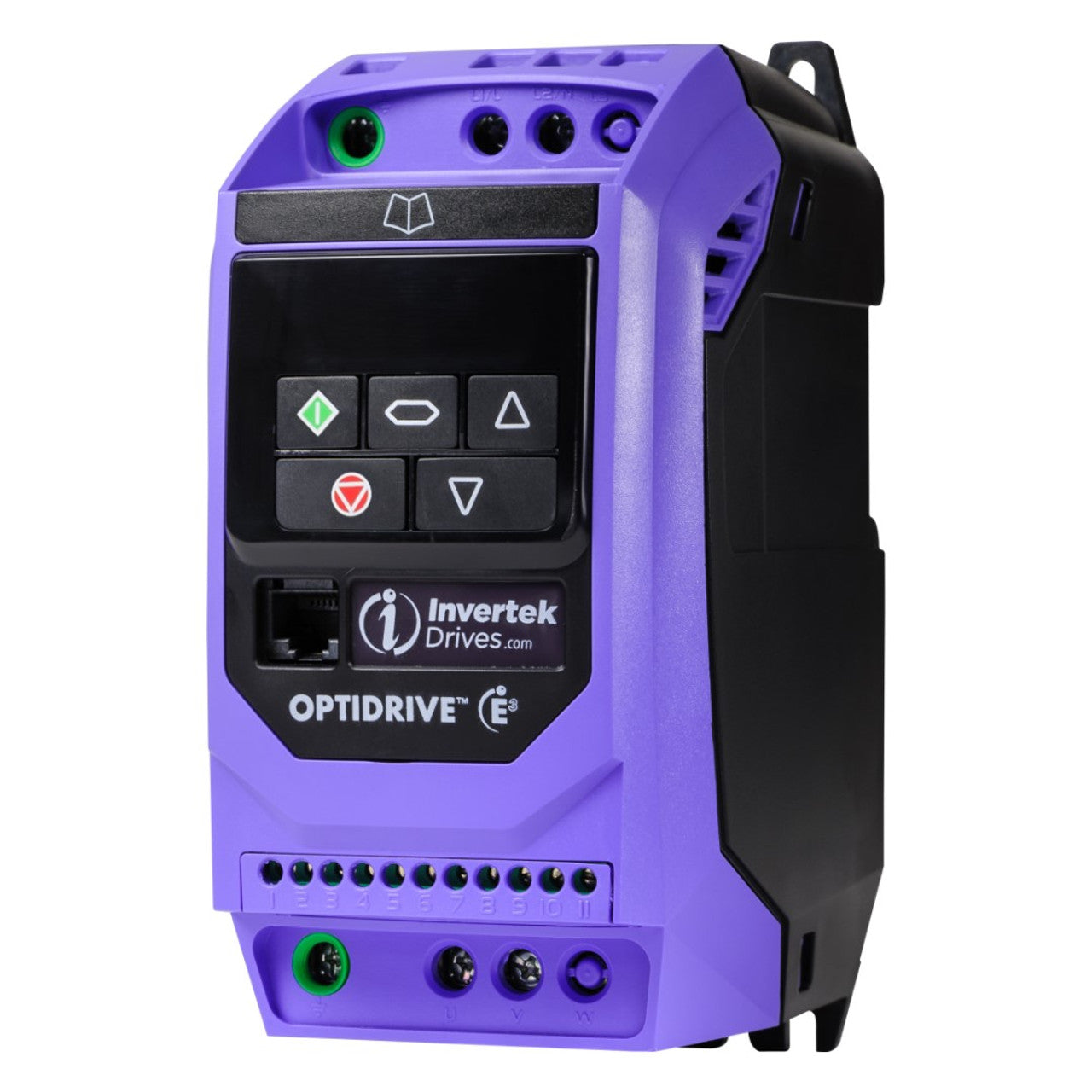

Invertek Optidrive E3 VFD - 0.5 HP, 230V, IP20 Enclosure | Model ODE-3-120023-3012

Invertek Optidrive E3 VFD - 0.5 HP, 230V, IP20 Enclosure | Model ODE-3-120023-3012

The Invertek Optidrive E3 VFD (Model ODE-3-120023-3012) is a compact and energy-efficient 0.5 HP, 230V Variable Frequency Drive designed for industrial and commercial motor control. Rated for 2.3A at 240V, this drive supports both constant and variable torque applications, making it perfect for fans, pumps, and small conveyors. The IP20-rated enclosure makes it ideal for indoor use in controlled environments. Backed by a 2-year warranty, the Optidrive E3 series ensures reliable performance, precise motor control, and energy savings.

Features and Benefits:

  • Horsepower: 0.5 HP for small motor control applications.
  • Voltage Compatibility: 230V input and 240V output for versatile use.
  • Energy Efficiency: Supports both constant and variable torque operations.
  • Compact and Lightweight: IP20 enclosure for secure indoor installations.
  • Reliable Performance: Backed by a 2-year warranty for dependable operation.

Product Specifications

The Invertek Optidrive E3 VFD (ODE-3-120023-3012) delivers efficient and dependable motor control for smaller industrial and commercial applications.

Applications and Uses

Perfect for applications such as fans, pumps, and small conveyors, this VFD is engineered for reliable and energy-efficient motor control in controlled indoor environments.

Key Features and Benefits

0.5 HP Capacity: Ideal for small motor applications.

Dual Torque Operation: Supports constant and variable torque setups.

High Voltage Compatibility: Operates efficiently at 230V input and 240V output.

Compact IP20 Enclosure: Designed for secure indoor use.

Trusted Warranty: Includes a 2-year warranty for peace of mind.

Installation and Maintenance Guidelines

Install the Optidrive E3 VFD in a ventilated location that meets IP20 standards. Follow the wiring and grounding instructions in the user manual. Maintenance includes inspecting connections and cleaning dust every 6 months, with an annual diagnostic review for optimal performance.

Warranty and Support

This Invertek Optidrive E3 VFD includes a 2-year warranty covering defects in materials and workmanship. Haran Electric Motors provides full support for installation, troubleshooting, and maintenance inquiries.

View full details

In-Depth Product Information and Specifications for Invertek Optidrive E3 VFD - 0.5 HP, 230V, IP20 Enclosure | Model ODE-3-120023-3012

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 0.5 HP.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 0.5 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 230V\nTorque Rating: Both Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
