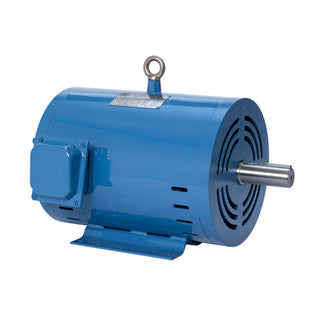

Galt Electric GDP0075-4-213T-K ODP Motor - 7.5 HP, 1800 RPM, 3-Phase, 213T Frame

Galt Electric GDP0075-4-213T-K ODP Motor - 7.5 HP, 1800 RPM, 3-Phase, 213T Frame

  • Description: "Delivering reliable power, the Galt Electric GDP0075-4-213T-K ODP Motor offers 7.5 HP at 1800 RPM, designed for industrial applications that require steady, continuous performance. This 3-phase motor is compatible with 208V, 230V, and 460V setups, providing flexibility for diverse installation needs. Its Open Drip Proof (ODP) enclosure is ideal for indoor, clean environments, ensuring optimal cooling during prolonged use. Constructed with rolled steel and featuring a 1.25 service factor, Class F insulation, and an impressive 91.7% efficiency, this motor is built for energy savings and durability. The GDP0075-4-213T-K is an excellent choice for powering compressors, pumps, and other industrial equipment requiring robust and dependable output.

    Key Features:

    • Power: 7.5 HP
    • Speed: 1800 RPM
    • Phase: 3-Phase
    • Frequency: 60 Hz
    • Enclosure: ODP (Open Drip Proof)
    • Frame: 213T
    • Voltage: 208V, 230V, 460V
    • Efficiency: 91.7%
    • Service Factor: 1.25

    Applications: Ideal for applications in controlled, indoor environments, including pumps, compressors, and light machinery that demand reliable and continuous power."

Product Specifications

  • Model: GDP0075-4-213T-K
  • Power: 7.5 HP
  • Speed: 1800 RPM (synchronous speed 1800 RPM)
  • Phase: Three Phase
  • Frequency: 60 Hz
  • Frame Size: 213T
  • Motor Enclosure Type: Open Drip Proof (ODP)
  • Voltage: 208V, 230V, 460V
  • Efficiency: 91.7%
  • Service Factor: 1.25
  • Full Load Torque: 22.51 lb-ft
  • Power Factor: 0.8
  • Insulation Class: F
  • Ambient Temperature Rating: 40°C
  • Duty Cycle: Continuous
  • Construction: Rolled Steel
  • Special Features: Energy-efficient design, high service factor, and oversized bearings for long-lasting performance.

Applications and Uses

Industrial Applications: Suitable for:

  • Air Compressors
  • Pumps
  • Light Industrial Machinery

Use Case: Perfect for environments requiring continuous, moderate power in controlled conditions.

Key Features and Benefits

Dependable Power: Provides 7.5 HP at 1800 RPM for steady performance in demanding applications.

Voltage Compatibility: Operates on 208V, 230V, and 460V, suitable for various industrial power systems.

Durable Construction: Built with rolled steel housing and Class F insulation, designed for continuous duty.

High Efficiency: Achieves 91.7% efficiency, reducing energy costs.

ODP Enclosure: Ideal for use in clean, ventilated indoor settings.

Installation and Maintenance Guidelines

Installation: F1 mounting configuration; compatible with multiple voltages (208V, 230V, 460V).

Maintenance: ODP enclosure requires periodic cleaning to maintain airflow, especially in dust-free environments. Built with oversized bearings for added durability.

Tip: Following recommended maintenance schedules helps maximize efficiency and prolong motor lifespan.

Warranty and Support

Warranty: Covered by a 3-year warranty.

Support: Full technical support for installation, operation, and maintenance.

View full details

In-Depth Product Information and Specifications for Galt Electric GDP0075-4-213T-K ODP Motor - 7.5 HP, 1800 RPM, 3-Phase, 213T Frame

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 7.5 HP range, 3-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe open drip-proof (ODP) design relies on extra airflow through the motor to manage operating temperature, and works best in clean, dry indoor settings such as HVAC equipment rooms and light manufacturing.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Horsepower: 7.5 HP\nSpeed: 1800 RPM\nPoles: 4\nPhase: 3-Phase\nVoltage: 208/230/460V\nNEMA Frame: 213T\nEnclosure: ODP

Maintenance Schedule and Requirements

Task Freq. Details
Lubrication Every 6 months Apply grease to bearings for continuous-duty performance in clean environments.
Insulation Resistance Test Annually Conduct insulation testing to maintain efficiency and prevent electrical issues.
Motor Alignment Check Annually Inspect alignment if coupled to prevent wear on bearings and shafts.
Vibration Analysis Every 6 months Monitor for vibrations to detect potential issues, especially in continuous-duty setups.
Temperature Monitoring Periodic Check motor temperature regularly to avoid overheating in ODP environments.
Cleaning of Enclosure Quarterly Clean the ODP enclosure to ensure effective airflow and cooling.
Electrical Connections Inspection Every 6 months Inspect and secure electrical connections to prevent power interruptions or arcing.
