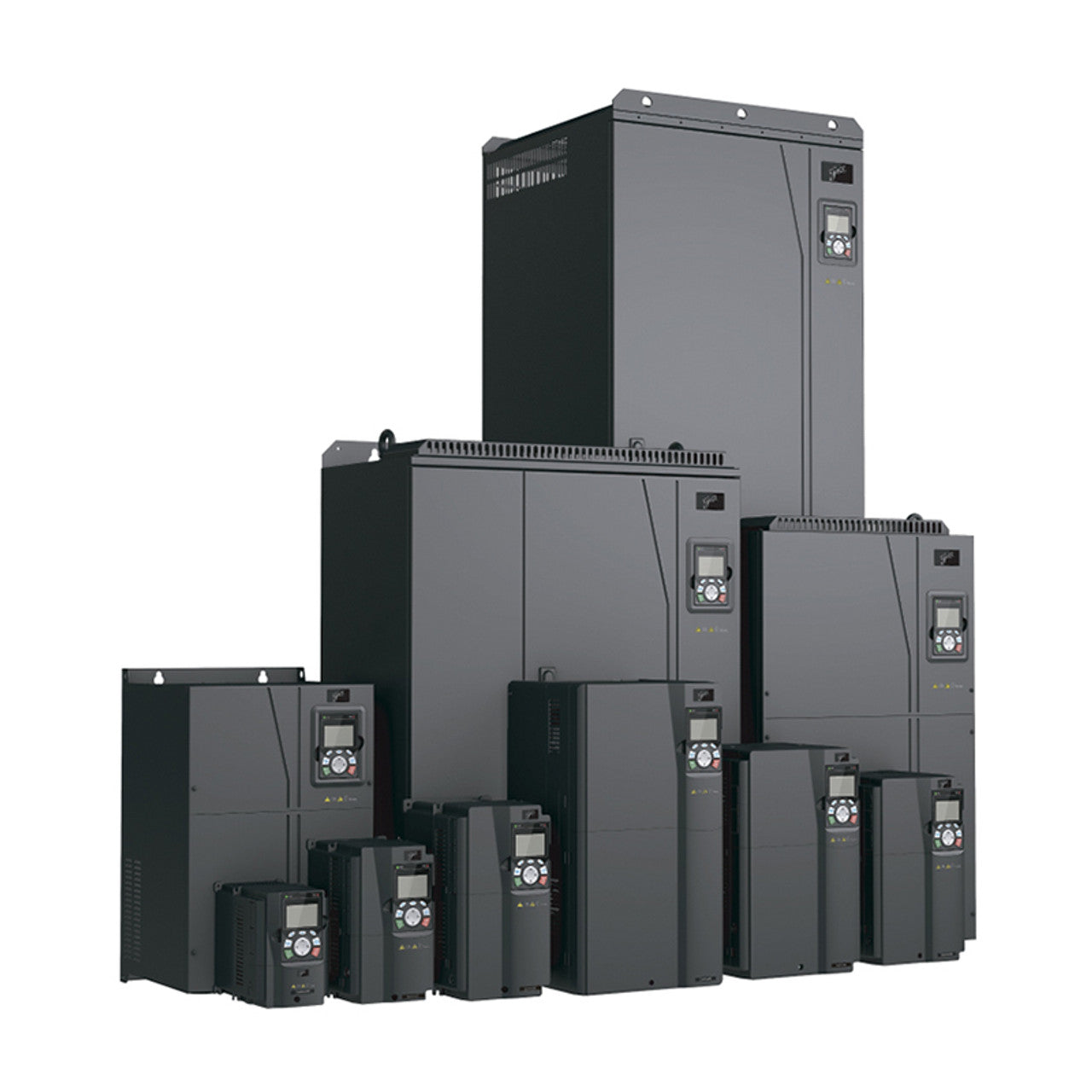

Galt Electric G500 VFD - 350 HP, 480V Input, IP20 Enclosure | Model G540-04250UL-03

Galt Electric G500 VFD - 350 HP, 480V Input, IP20 Enclosure | Model G540-04250UL-03

The Galt Electric G500 VFD (Model G540-04250UL-03) is a high-capacity 350 HP Variable Frequency Drive designed for industrial motor control in demanding applications. With a 460V input and 425A rated output, this drive delivers reliable performance for variable and constant torque systems. Ideal for large-scale applications such as industrial pumps, compressors, and HVAC systems, the G500 VFD is equipped with an IP20 enclosure for indoor environments. Backed by a 3-year warranty, it offers durability, energy efficiency, and precision control for high-power motors.

Features and Benefits:

  • Horsepower: 350 HP @ 120% OL; 300 HP @ 150% OL.
  • Voltage Compatibility: Supports 460V input and output.
  • High Current Capacity: Rated for 425A output for powerful motor control.
  • Variable and Constant Torque: Efficient across various applications.
  • Durable Design: IP20 enclosure for safe indoor installation.
  • Extended Warranty: Includes a 3-year warranty for peace of mind.

Product Specifications

The Galt Electric G500 VFD (G540-04250UL-03) provides robust motor control with advanced features, making it ideal for heavy-duty industrial environments.

Applications and Uses

Recommended for high-power applications such as industrial pumps, compressors, conveyors, and HVAC systems requiring precise motor control and energy efficiency.

Key Features and Benefits

  • 350 HP Capacity: Designed for large motor operations.
  • Voltage Range: Compatible with 460V input and output.
  • Enhanced Performance: Variable and constant torque options for flexibility in operation.
  • High Current Handling: Rated for 425A output to support heavy-duty motors.
  • IP20 Enclosure: Suitable for clean and controlled indoor environments.
  • Warranty Coverage: Backed by a 3-year manufacturer’s warranty for reliability.

Installation and Maintenance Guidelines

Install the Galt Electric G500 VFD in a well-ventilated indoor location, adhering to IP20 standards. Ensure proper wiring and grounding as per the manual. Schedule bi-annual inspections of electrical connections and cooling systems to maintain performance and longevity.

Warranty and Support

This Galt Electric G500 VFD comes with a 3-year warranty covering material and workmanship defects. Denver Electric Motor Depot provides full technical support for installation, troubleshooting, and maintenance.

View full details

In-Depth Product Information and Specifications for Galt Electric G500 VFD - 350 HP, 480V Input, IP20 Enclosure | Model G540-04250UL-03

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 350 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 350 HP\nOutput Phase: 3-Phase\nVoltage: 480V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe and consistent operation.

Cooling System Check - Every 6 Months

Inspect fans and heat sinks to ensure proper cooling and prevent overheating.

Dust Cleaning - Annually

Clean the enclosure and ventilation areas to prevent dust buildup and ensure optimal airflow.

Performance Diagnostics - Annually

Conduct full system diagnostics to ensure the drive operates at peak efficiency and meets application requirements.
