Galt Electric G200 VFD - 3 HP, 480V, IP20 Enclosure | Model G240-00055EU-02

Galt Electric G200 VFD - 3 HP, 480V, IP20 Enclosure | Model G240-00055EU-02

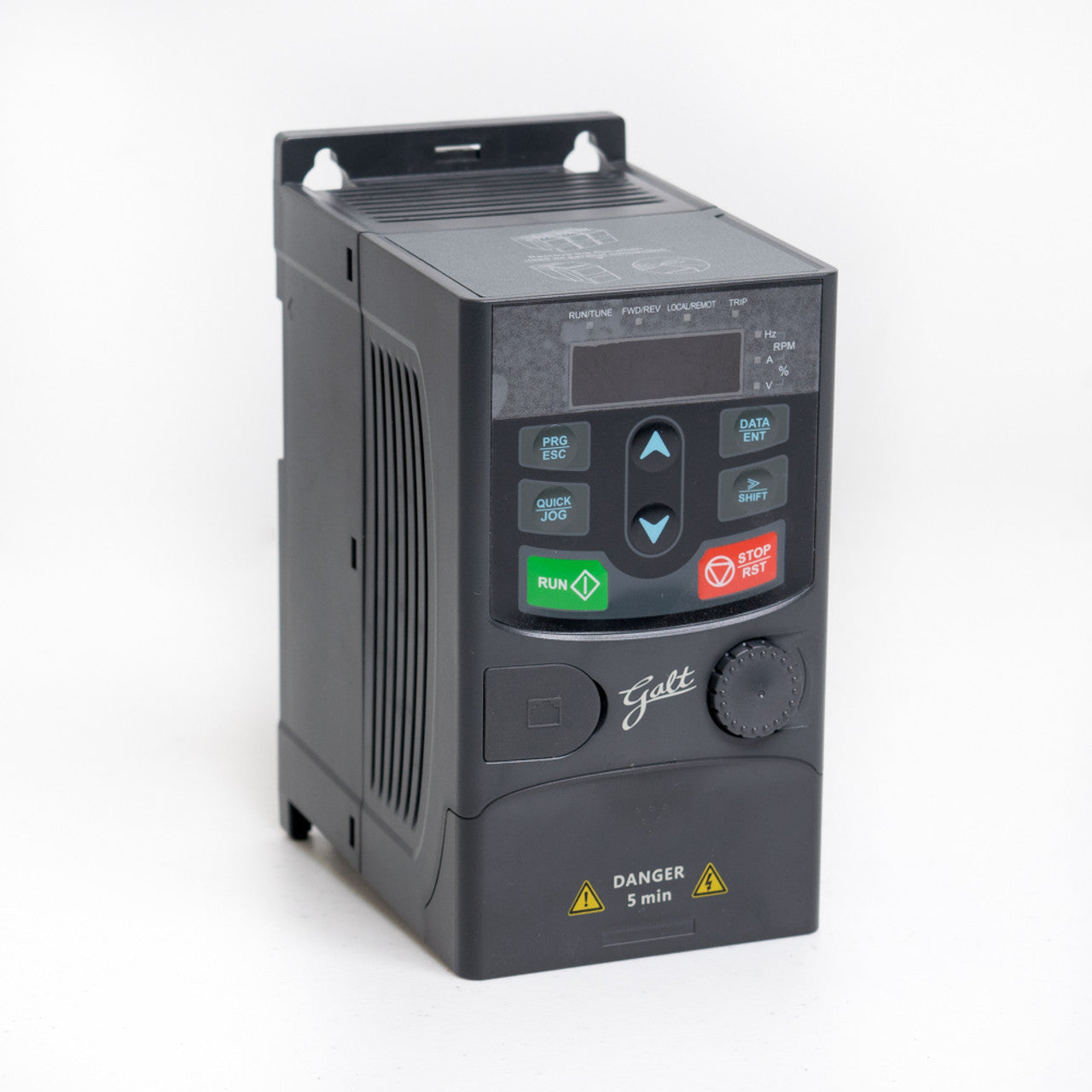

The Galt Electric G200 VFD (Model G240-00055EU-02) is a reliable and efficient variable frequency drive designed for 3 HP motors in industrial applications. Operating with a 480V input and delivering 5.5A output, this VFD is perfect for constant torque requirements. Its lightweight design and IP20-rated enclosure make it suitable for controlled indoor environments. Backed by a 3-year warranty, the G200 series ensures consistent performance and energy efficiency

Product Specifications

Horsepower: Supports 3 HP motors for medium-duty operations.

Voltage Compatibility: Designed for 480V input and 460V output systems.

Current Capacity: Provides 5.5A output for reliable motor control.

Constant Torque: Ideal for applications requiring steady load performance.

Compact Design: Lightweight at 1.36 lbs for easy installation.

Warranty: Includes a 3-year manufacturer’s warranty for peace of mind.

Applications and Uses

The Galt Electric G200 VFD is suitable for conveyor systems, HVAC units, fans, and other industrial applications requiring consistent and efficient motor performance.

Key Features and Benefits

3 HP Motor Capacity: Handles small-to-medium motor loads with precision.

Three-Phase Input and Output: Ensures compatibility with industrial-grade systems.

Efficient Torque Management: Perfect for constant torque operations.

Durable Enclosure: IP20-rated for safe indoor use.

3-Year Warranty: Comprehensive coverage to support long-term usage.

Installation and Maintenance Guidelines

Install the Galt Electric G200 VFD in a well-ventilated indoor location that meets IP20 standards. Ensure proper wiring and grounding as per the user manual. Conduct periodic inspections and cleaning to maintain peak performance.

Warranty and Support

This Galt Electric G200 VFD comes with a 3-year warranty. Denver Electric Motor Depot provides dedicated technical support for installation, troubleshooting, and maintenance.

View full details

In-Depth Product Information and Specifications for Galt Electric G200 VFD - 3 HP, 480V, IP20 Enclosure | Model G240-00055EU-02

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 3 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 3 HP\nOutput Phase: 3-Phase\nVoltage: 480V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check electrical connections for tightness and inspect for any signs of wear or damage.

Dust Cleaning - Annually

Clean the VFD's external surfaces and ventilation openings to prevent overheating.

Cooling System Inspection - Every 12 Months

Ensure fans and heat sinks are functioning properly and free of obstructions.

Run Diagnostics - Annually

Perform a system diagnostic check to verify VFD performance and detect issues early.
