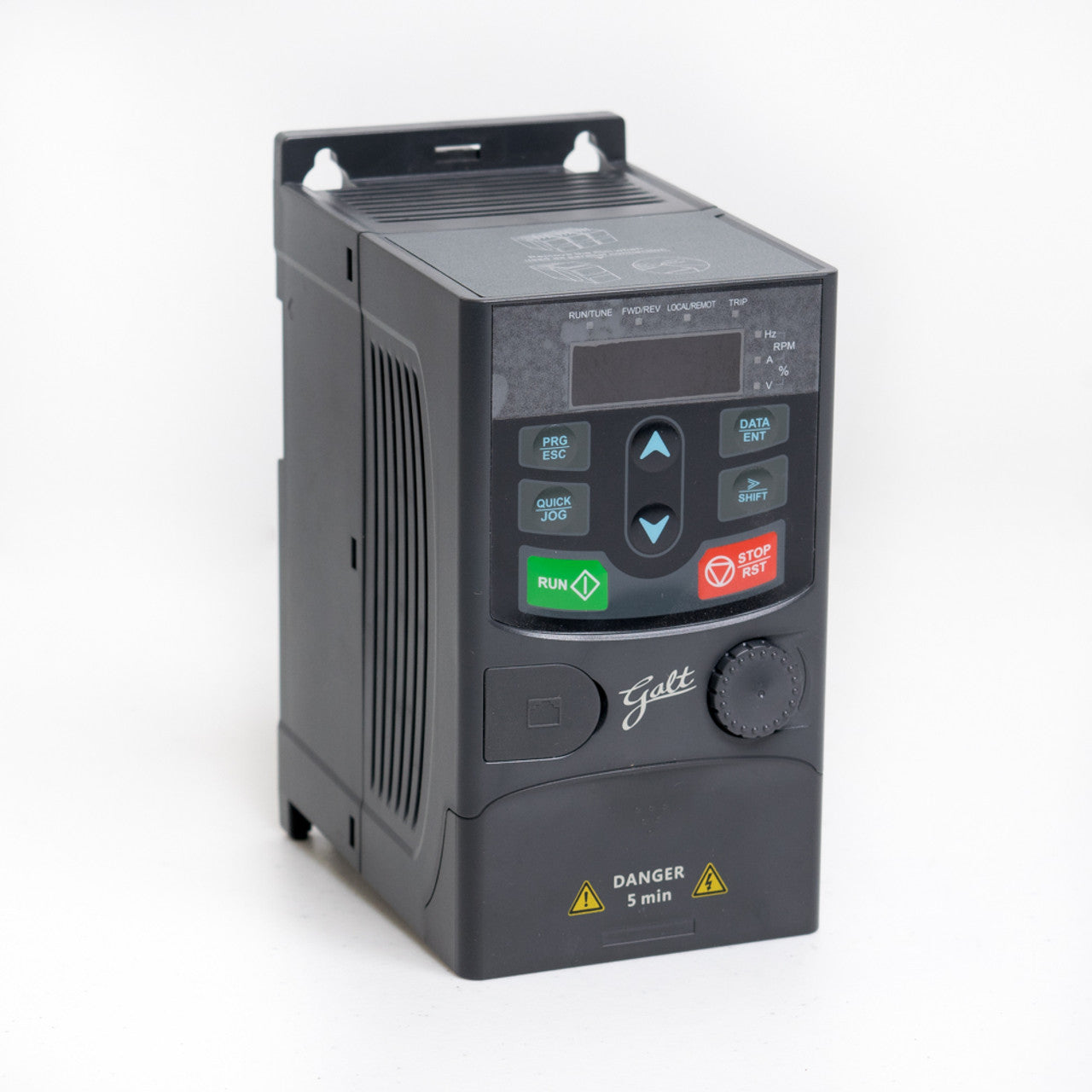

Galt Electric G200 VFD - 3 HP, 240V, Single Phase Input, 3 Phase Output | Model G22S0-00100EU-02

Galt Electric G200 VFD - 3 HP, 240V, Single Phase Input, 3 Phase Output | Model G22S0-00100EU-02

The Galt Electric G200 VFD (G22S0-00100EU-02) is a 3 HP, 240V Variable Frequency Drive engineered for single-phase input and three-phase output, providing smooth motor control and energy savings. With constant torque, 10A output, and a compact IP20-rated enclosure, this VFD is ideal for small machinery, custom applications, and HVAC systems operating in controlled indoor environments. The G200 series is known for reliability and versatility, allowing users to convert single-phase power to three-phase with precise speed control and consistent performance. With a 3-year warranty and lightweight design, the Galt Electric G200 VFD offers long-term efficiency and ease of use in both residential and light industrial applications."

  • Features and Benefits:
    • Horsepower: 3 HP at 150% overload capacity, suitable for moderate power requirements.
    • Input/Output Voltage: 240V input, 230V output for compatibility with most motor setups.
    • Phase Conversion: Single-phase input to three-phase output, supporting diverse applications.
    • Constant Torque Design: Provides steady, reliable torque for stable motor performance.
    • Enclosure: IP20 rating for indoor, protected installations.

Product Specifications

The Galt Electric G200 VFD model G22S0-00100EU-02 is a 3 HP drive, designed to operate with 240V single-phase input and convert to 230V three-phase output, with a rated output amperage of 10A. Its constant torque and IP20 enclosure make it ideal for indoor environments requiring moderate power and reliable motor control.

Applications and Uses

Ideal for small to medium-scale motor control applications including HVAC systems, pumps, conveyors, and custom machinery. The VFD’s ability to convert single-phase to three-phase power expands its use in areas with limited access to three-phase power, making it versatile for both residential and light commercial use.

Key Features and Benefits

3 HP Power: Provides ample horsepower for moderate motor needs.

Single-Phase Input / Three-Phase Output: Allows for flexible use in areas without direct three-phase access.

Constant Torque: Ensures steady performance for reliable motor operation.

Durable Construction: Lightweight but robust, with IP20-rated enclosure.

Warranty: Comes with a 3-year warranty for dependable performance.

Installation and Maintenance Guidelines

Install the Galt Electric G200 VFD in a well-ventilated indoor environment, as the IP20 rating offers limited protection. Ensure proper grounding during installation and adhere to all safety guidelines in the user manual. Maintenance includes checking connections and cleaning dust buildup every 6 months, with a full performance check annually.

Warranty and Support

This VFD comes with a 3-year manufacturer warranty, covering defects in materials and workmanship. Denver Electric Motor Depot offers additional support for installation, troubleshooting, and maintenance guidance.

View full details

In-Depth Product Information and Specifications for Galt Electric G200 VFD - 3 HP, 240V, Single Phase Input, 3 Phase Output | Model G22S0-00100EU-02

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, stepping down from a 1-phase supply, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 3 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 3 HP\nInput Phase: 1-Phase\nOutput Phase: 3-Phase\nVoltage: 240V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and wear to ensure safe and consistent operation.

Dust Cleaning - Every 6 Months

Remove dust buildup on vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Run a full diagnostic test to ensure the VFD is operating at peak performance. Check for unusual noises or vibrations that may indicate wear or potential issues.
