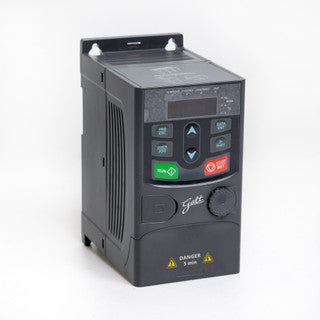

Galt Electric G200 VFD - 3 HP, 240V, 1-Phase Input / 3-Phase Output | Model G22S0-00100UL-02

Galt Electric G200 VFD - 3 HP, 240V, 1-Phase Input / 3-Phase Output | Model G22S0-00100UL-02

The Galt Electric G200 VFD (Model G22S0-00100UL-02) is a compact 3 HP, 240V Variable Frequency Drive designed for constant torque applications. Rated for 10A output at 230V, this drive is well-suited for light- to medium-duty equipment, such as fans, pumps, and small conveyors. Featuring a single-phase input and three-phase output configuration, this VFD provides dependable, efficient motor control for industrial setups. Housed in an IP20-rated enclosure and backed by a 3-year warranty, the G200 series delivers performance and reliability for continuous-duty operations in protected environments.

  • Features and Benefits:
    • Horsepower: Rated at 3 HP with 150% overload capacity, suitable for a range of industrial applications.
    • Voltage Compatibility: 240V input with 230V output, ideal for standard motor systems.
    • Constant Torque: Designed for applications with steady load requirements.
    • Single-Phase Input / Three-Phase Output: Offers versatility in diverse motor setups.
    • Enclosure: IP20-rated for safe indoor installations.

Product Specifications

The Galt Electric G200 VFD (G22S0-00100UL-02) is a durable 3 HP, 240V AC drive with a 10A rating at 230V, optimized for constant torque applications in smaller industrial environments.

Applications and Uses

Ideal for light- to medium-duty applications such as fans, pumps, and conveyors, this VFD provides reliable and efficient motor control for continuous operation in industrial settings.

Key Features and Benefits

3 HP Capacity: Supports light- to medium-duty applications with a 150% overload capability.

Constant Torque: Optimized for steady load applications.

Single-Phase Input / Three-Phase Output: Allows for integration with diverse motor configurations.

Compact, Durable Design: IP20-rated enclosure suitable for safe indoor use in controlled environments.

Extended Warranty: Comes with a 3-year warranty for reliable long-term performance.

Installation and Maintenance Guidelines

Install the G200 VFD in a ventilated indoor environment that meets IP20 standards. Follow all grounding and setup guidelines as specified in the user manual. Routine maintenance includes inspecting connections and clearing dust every 6 months, with an annual diagnostic check for peak performance.

Warranty and Support

The Galt Electric G200 VFD includes a 3-year warranty covering defects in materials and workmanship. Denver Electric Motor Depot provides full support for installation, troubleshooting, and maintenance inquiries.

View full details

In-Depth Product Information and Specifications for Galt Electric G200 VFD - 3 HP, 240V, 1-Phase Input / 3-Phase Output | Model G22S0-00100UL-02

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, stepping down from a 1-phase supply, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 3 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 3 HP\nInput Phase: 1-Phase\nOutput Phase: 3-Phase\nVoltage: 240V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
