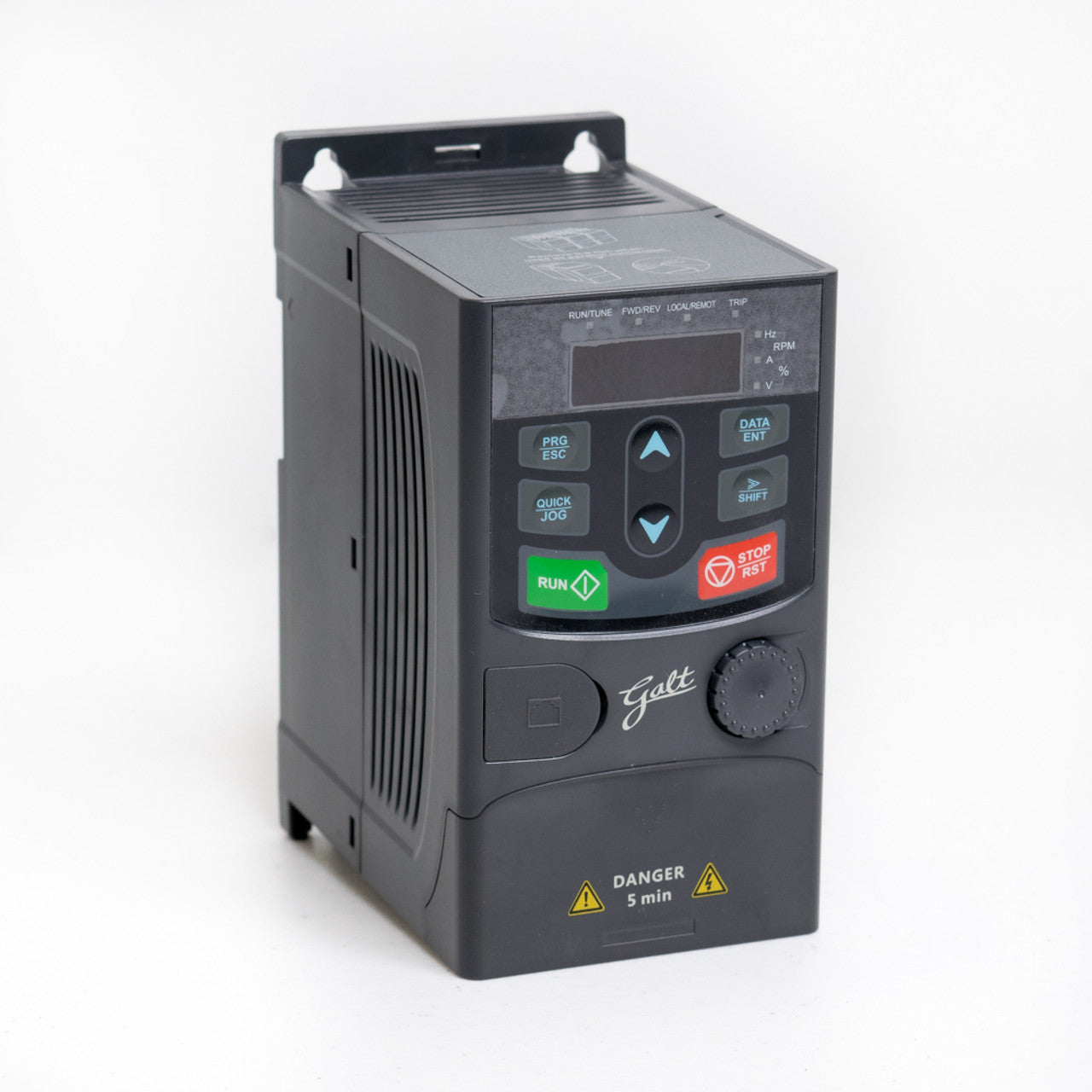

Galt Electric G200 VFD - 2 HP, 240V, Single Phase Input, 3 Phase Output | Model G22S0-00075EU-02

Galt Electric G200 VFD - 2 HP, 240V, Single Phase Input, 3 Phase Output | Model G22S0-00075EU-02

The Galt Electric G200 VFD (Model G22S0-00075EU-02) is a 2 HP, 240V Variable Frequency Drive tailored for single-phase input and three-phase output, delivering efficient and reliable motor control. With constant torque capabilities, a compact frame, and a rated output of 7.5A, this VFD is ideal for applications requiring precise speed management, such as HVAC systems, small machinery, and custom motor setups. The IP20-rated enclosure is designed for indoor use in protected environments. Backed by a 3-year warranty and engineered for dependable performance, the G200 series offers ease of use, energy efficiency, and enhanced control for residential and light industrial applications."

  • Features and Benefits:
    • Horsepower: Rated at 2 HP, suitable for moderate motor control requirements.
    • Voltage: 240V input, converting to 230V output for flexible motor compatibility.
    • Phase Conversion: Single-phase input to three-phase output for versatility.
    • Constant Torque Design: Ensures steady, reliable operation for applications needing consistent speed.
    • Enclosure: IP20-rated for indoor, protected installations.

Product Specifications

The Galt Electric G200 VFD (G22S0-00075EU-02) is a 2 HP, 240V AC drive with single-phase input and three-phase output, delivering a constant torque performance with a 7.5A rated output amperage. Compact and lightweight, this VFD is suitable for protected indoor use in residential or light commercial environments

Applications and Uses

Ideal for HVAC systems, small machinery, and custom applications, this VFD provides reliable motor control in environments that require single-phase input but benefit from three-phase motor performance.

Key Features and Benefits

  • 2 HP Power: Provides stable, moderate power output.
  • Single-Phase to Three-Phase Conversion: Expands flexibility for motor use in areas without three-phase power access.
  • Constant Torque: Maintains consistent torque for steady motor control.
  • Durable Construction: Lightweight and compact with an IP20-rated enclosure for safe indoor use.
  • Extended Warranty: Comes with a 3-year warranty for long-lasting performance.

Installation and Maintenance Guidelines

Install the G200 VFD in a ventilated indoor environment suitable for the IP20 enclosure rating. Ensure proper grounding, and follow all safety and setup guidelines in the user manual. Maintenance includes inspecting connections and cleaning any dust accumulation every 6 months, with a full diagnostic and performance review annually

Warranty and Support

This Galt Electric G200 VFD comes with a 3-year manufacturer’s warranty, covering materials and workmanship. Denver Electric Motor Depot offers support for installation, troubleshooting, and maintenance needs.

View full details

In-Depth Product Information and Specifications for Galt Electric G200 VFD - 2 HP, 240V, Single Phase Input, 3 Phase Output | Model G22S0-00075EU-02

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, stepping down from a 1-phase supply, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 2 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 2 HP\nInput Phase: 1-Phase\nOutput Phase: 3-Phase\nVoltage: 240V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and signs of wear to ensure safe and reliable operation.

Dust Cleaning - Every 6 Months

Remove any dust buildup from vents and surfaces to maintain proper airflow and prevent overheating.
