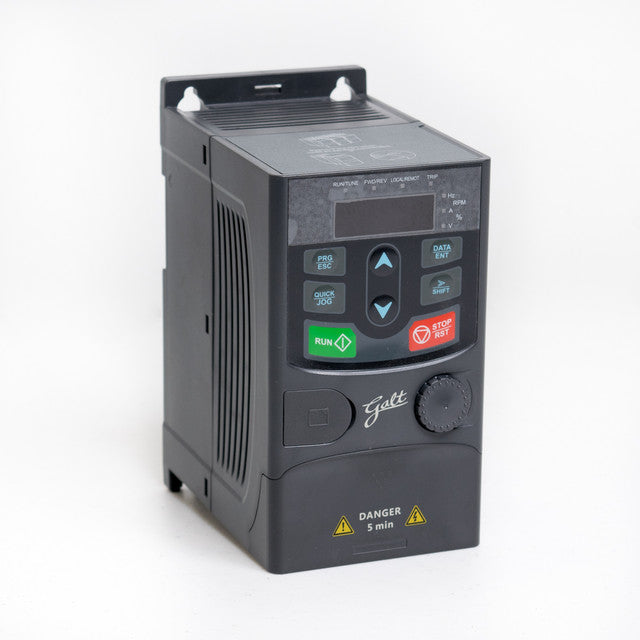

Galt Electric G200 VFD - 2 HP, 240V, 3-Phase Input/Output | Model G220-00075UL-02

Galt Electric G200 VFD - 2 HP, 240V, 3-Phase Input/Output | Model G220-00075UL-02

The Galt Electric G200 VFD (Model G220-00075UL-02) is a dependable 2 HP, 240V Variable Frequency Drive designed for industrial applications needing constant torque. With a 7.7A output at 230V, this VFD provides efficient and stable motor control in demanding environments. Designed for three-phase input/output with an IP20-rated enclosure, this drive is ideal for applications such as compressors, conveyors, and machine tools. Backed by a 3-year warranty, the G200 series offers robust performance and reliability for industrial systems."

  • Features and Benefits:
    • Horsepower: Rated at 2 HP with 150% overload capability for dependable power.
    • Voltage Compatibility: 240V input with 230V output, compatible with industrial motor setups.
    • Constant Torque: Suitable for applications that require steady load performance.
    • Three-Phase Input/Output: Supports industrial power systems for efficient motor operation.
    • Enclosure: IP20-rated, designed for protected indoor environments.

Product Specifications

The Galt Electric G200 VFD (G220-00075UL-02) is a 2 HP, 240V AC drive that supports three-phase input/output. Rated for 7.7A output at 230V, this VFD is optimized for constant torque applications in controlled indoor environments.

Applications and Uses

Ideal for industrial applications such as compressors, conveyors, and machine tools, this VFD offers consistent, reliable motor control for stable performance in demanding environments.

Key Features and Benefits

2 HP Capacity: Provides reliable power with 150% overload capacity for steady-duty applications.

Constant Torque: Optimized for applications needing stable torque output.

Three-Phase Input/Output: Standard for industrial setups, offering reliable performance.

Compact, Durable Design: IP20-rated for safe indoor use in protected environments.

Extended Warranty: Comes with a 3-year warranty for added reliability.

Installation and Maintenance Guidelines

Install the G200 VFD in a well-ventilated indoor environment suitable for IP20-rated equipment. Follow all grounding and installation guidelines in the manual. Maintenance should include inspecting connections and cleaning dust buildup every 6 months, with an annual diagnostic check to maintain performance.

Warranty and Support

The Galt Electric G200 VFD includes a 3-year warranty covering defects in materials and workmanship. Denver Electric Motor Depot offers support for installation, troubleshooting, and maintenance.

View full details

In-Depth Product Information and Specifications for Galt Electric G200 VFD - 2 HP, 240V, 3-Phase Input/Output | Model G220-00075UL-02

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 2 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 2 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 240V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Maintenance Schedule

Proper maintenance ensures the Galt Electric G200 VFD operates efficiently and maintains a long lifespan. Follow this recommended schedule to avoid downtime and costly repairs:

Monthly Maintenance

  • Inspect the VFD for dust buildup and clean if necessary.
  • Check the cooling fan operation to ensure adequate airflow.

Quarterly Maintenance

  • Inspect all wiring connections for wear, looseness, or damage.
  • Verify programming parameters to ensure they match operational requirements.

Annual Maintenance

  • Perform a full thermal inspection to identify any overheating components.
  • Test the motor performance to confirm compatibility with the VFD output.
  • Replace the cooling fan if it has reached the recommended operating hours.

Adhering to this maintenance schedule will help maximize the efficiency and longevity of your Galt Electric G200 VFD, ensuring consistent performance in demanding applications.
