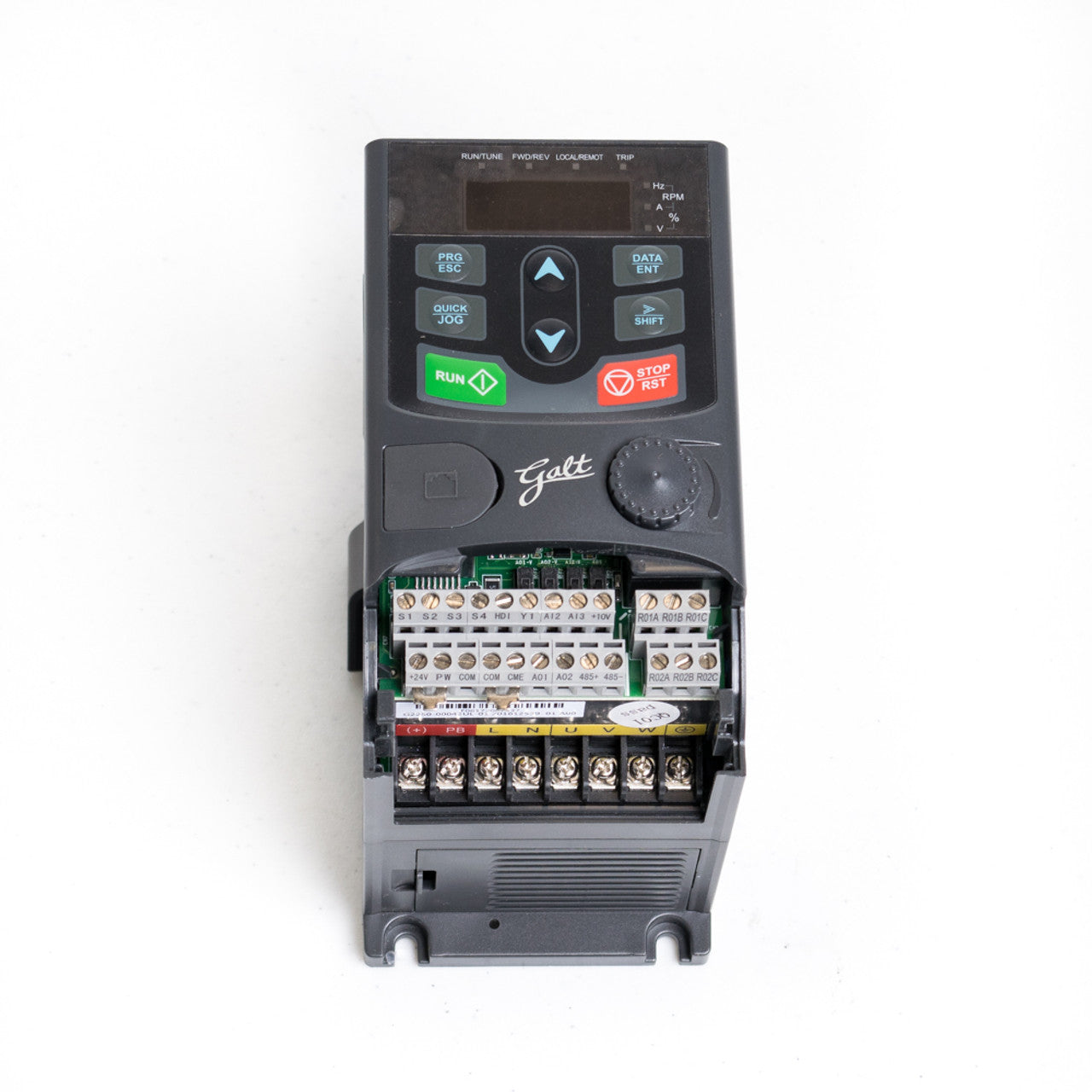

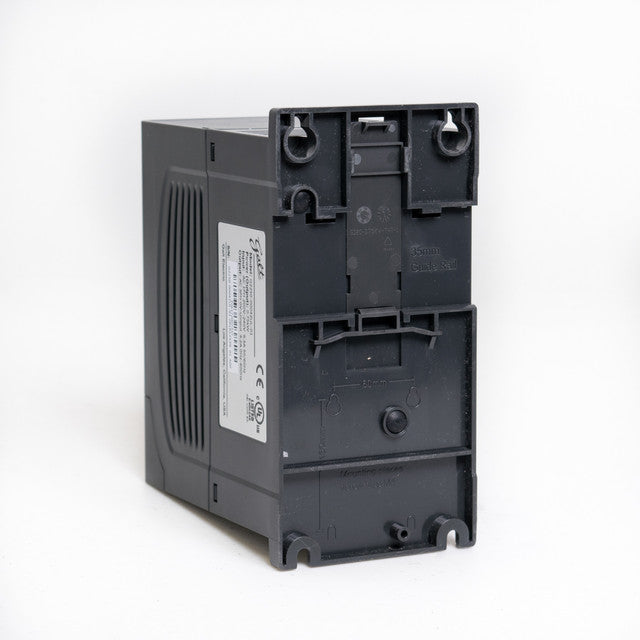

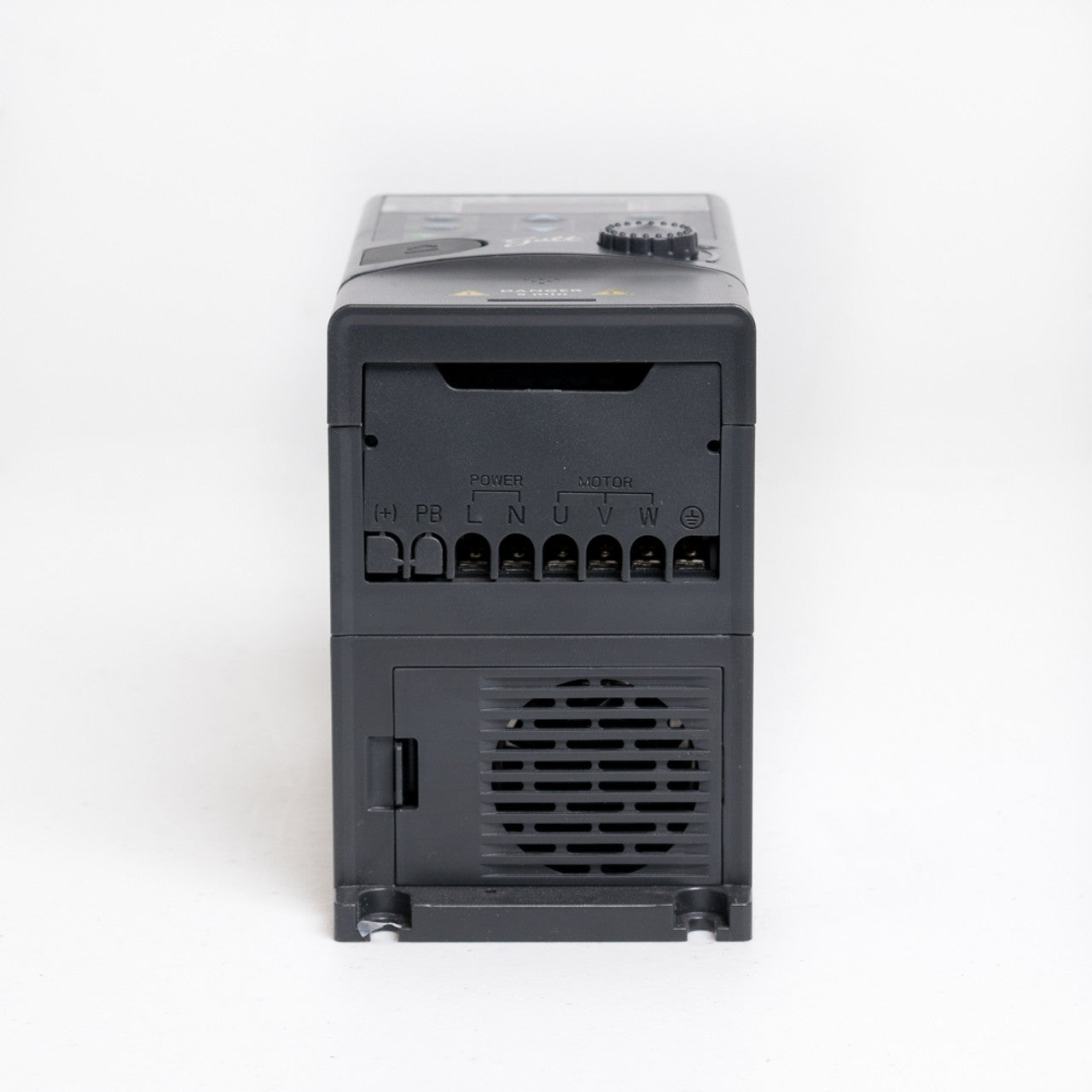

Galt Electric G200 VFD - 1 HP, 480V, 3-Phase, IP20 Enclosure | Model G240-00025EU-02

Galt Electric G200 VFD - 1 HP, 480V, 3-Phase, IP20 Enclosure | Model G240-00025EU-02

The Galt Electric G200 VFD (Model G240-00025EU-02) is a high-quality variable frequency drive designed for 1 HP motors. Operating at 480V input with a 2.5A output, this VFD provides reliable performance for constant torque applications. Its compact and lightweight design, weighing just 1.36 lbs, combined with an IP20-rated enclosure, makes it ideal for indoor use in controlled environments. Backed by a 3-year warranty, the G200 series delivers efficiency and durability for a range of industrial and commercial applications.

Product Specifications

Horsepower: Supports up to 1 HP for small motor operations.

Voltage Compatibility: 480V input and 460V output ensure optimal performance.

Current Capacity: Output rated at 2.5A for precise motor control.

Constant Torque: Tailored for applications requiring steady load management.

Compact and Lightweight: Weighs only 1.36 lbs for easy installation.

Warranty: Includes a 3-year warranty for dependable service.

Applications and Uses

Perfect for small-scale industrial machinery, conveyors, fans, and pumps that require efficient motor control under constant torque conditions.

Key Features and Benefits

Reliable Performance: Designed for 1 HP motors with steady output.

Energy Efficiency: Optimized for constant torque applications, reducing energy waste.

Robust Construction: IP20-rated enclosure ensures durability in clean, dry environments.

Ease of Use: Compact design facilitates quick installation in tight spaces.

Durability: Built with Galt Electric’s trusted engineering for long-lasting performance.

Installation and Maintenance Guidelines

Install the Galt Electric G200 VFD in a well-ventilated, dry indoor location. Ensure proper grounding and follow manufacturer guidelines for wiring. Perform periodic inspections to maintain optimal performance and longevity.

Warranty and Support

This Galt Electric G200 VFD includes a 3-year warranty and comes with full support from Denver Electric Motor Depot for installation, troubleshooting, and maintenance needs

View full details

In-Depth Product Information and Specifications for Galt Electric G200 VFD - 1 HP, 480V, 3-Phase, IP20 Enclosure | Model G240-00025EU-02

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor on a 3-phase system, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 1 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 1 HP\nInput Phase: 3-Phase\nOutput Phase: 3-Phase\nVoltage: 480V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Ensure all electrical connections are tight and free of corrosion or wear.

Clean Exterior - Annually

Remove dust and debris from the VFD's casing and ventilation areas to ensure proper airflow.

Cooling System Check - Annually

Inspect fans and heat sinks for dust buildup and ensure they are functioning properly.

Performance Diagnostics - Every 12 Months

Run diagnostics to verify system performance and address any potential issues.
