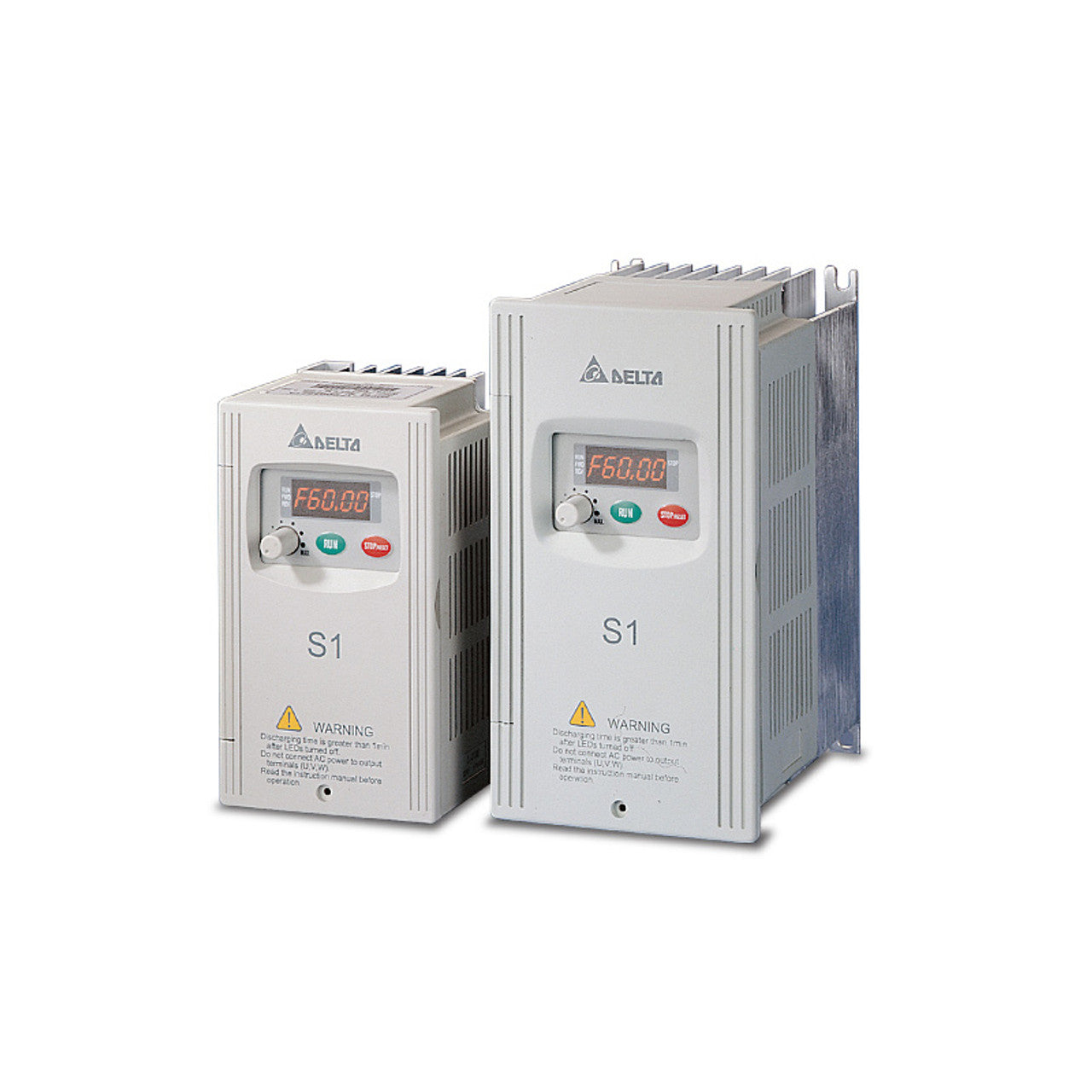

Delta VFD-S VFD - 0.5 HP, 230V, IP20 Enclosure | Model VFD004S21B

Delta VFD-S VFD - 0.5 HP, 230V, IP20 Enclosure | Model VFD004S21B

The Delta VFD-S (Model VFD004S21B) is a compact and efficient variable frequency drive designed for 0.5 HP single-phase input applications. Operating with a 230V input and providing 0.5A output, this VFD ensures reliable performance for constant torque motor control. Lightweight at 1.10 lbs and equipped with an IP20-rated enclosure, it is ideal for indoor, controlled environments. Its versatile design and Delta's proven quality make it a top choice for small motor applications

Product Specifications

Horsepower: 0.5 HP for small motor applications.

Voltage Compatibility: 230V input and output for consistent performance.

Current Capacity: Delivers 0.5A output for precise motor control.

Constant Torque: Tailored for applications requiring steady load management.

Lightweight Design: Weighs only 1.10 lbs, allowing for easy installation.

Warranty: Includes a 2-year warranty for reliable operation.

Applications and Uses

Perfect for small-scale automation, fans, pumps, and other applications requiring consistent motor performance with single-phase input.

Key Features and Benefits

0.5 HP Motor Capacity: Ideal for compact and precise operations.

Single-Phase Input to Three-Phase Output: Provides flexibility for various setups.

Compact and Efficient Design: Saves space and reduces installation complexity.

Constant Torque Performance: Ensures stable operation under constant loads.

Durable Enclosure: IP20-rated for controlled indoor environments.

Installation and Maintenance Guidelines

Install the Delta VFD-S VFD in a clean, dry, and ventilated area that meets IP20 standards. Ensure proper grounding and wiring as per the manual. Schedule regular maintenance and inspections to sustain peak performance.

Warranty and Support

This Delta VFD-S VFD comes with a 2-year warranty. Denver Electric Motor Depot provides complete technical support for installation, troubleshooting, and maintenance needs.

View full details

In-Depth Product Information and Specifications for Delta VFD-S VFD - 0.5 HP, 230V, IP20 Enclosure | Model VFD004S21B

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 0.5 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 0.5 HP\nOutput Phase: 3-Phase\nVoltage: 230V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Verify all electrical connections for tightness and inspect for wear or corrosion.

Dust Cleaning - Annually

Remove dust and debris from the VFD's exterior and ventilation areas.

Cooling System Inspection - Every 12 Months

Ensure that the cooling fans and heat sinks are free of dust and operating effectively.

Performance Check - Annually

Run diagnostic tests to ensure optimal VFD performance and detect potential issues early.
