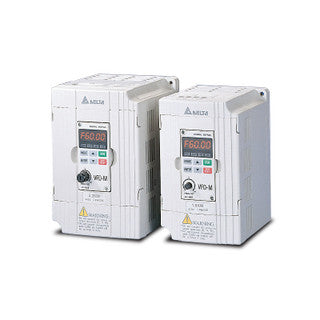

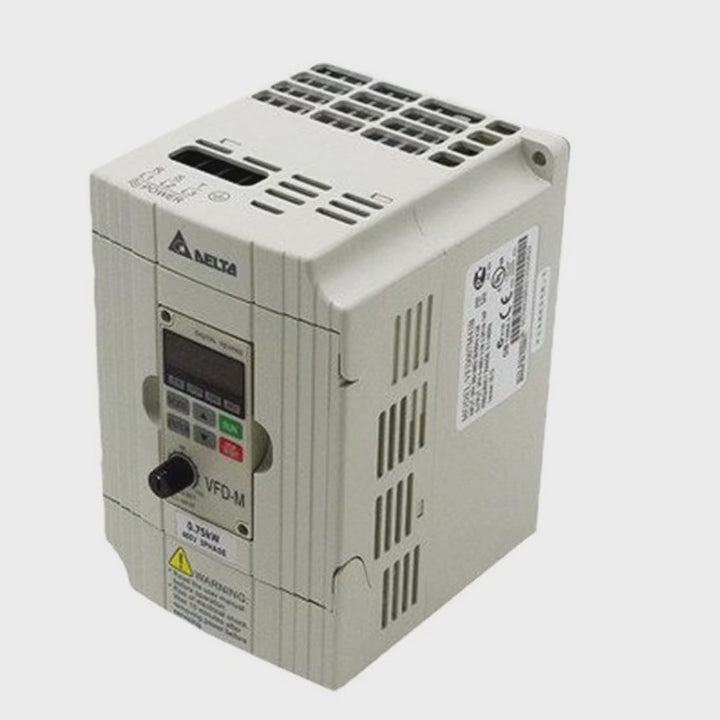

Delta VFD-M VFD - 1 HP, 230V, Single-Phase Input, 3-Phase Output | Model VFD007M21B

Delta VFD-M VFD - 1 HP, 230V, Single-Phase Input, 3-Phase Output | Model VFD007M21B

The Delta VFD-M VFD (Model VFD007M21B) is a compact and efficient 1 HP, 230V Variable Frequency Drive tailored for precise motor control in industrial and commercial applications. Designed with a single-phase input and three-phase output, it provides constant torque performance, making it ideal for conveyors, pumps, and fans. Rated for 5A at 230V, this drive features an IP20-rated enclosure for safe indoor installations. Backed by Delta’s reliable engineering, the VFD-M series ensures cost-effective, energy-efficient operation with precise motor control."

  • Features and Benefits:
    • Horsepower: 1 HP, suitable for light-duty motor applications.
    • Voltage Compatibility: 230V input/output for flexible industrial use.
    • Energy Efficiency: Optimized for constant torque motor applications.
    • Single-Phase Input, Three-Phase Output: Ensures adaptability for various motor setups.
    • Compact and Safe Design: IP20-rated enclosure for secure indoor use.

Product Specifications

The Delta VFD-M VFD (VFD007M21B) combines precision, durability, and energy efficiency, making it an excellent choice for small-scale industrial applications.

Applications and Uses

This VFD is ideal for motor control in fans, conveyors, and pumps, offering smooth operation and energy savings in light-duty industrial and commercial settings.

Key Features and Benefits

1 HP Capacity: Designed for small-scale motor control operations.

Constant Torque Capability: Provides stable performance for demanding applications.

Single-Phase Input, Three-Phase Output: Allows compatibility with diverse motor configurations.

Compact and Durable Design: IP20-rated enclosure ensures safe indoor installations.

Trusted Warranty: Backed by Delta’s reputation for reliable performance.

Installation and Maintenance Guidelines

"Install the VFD-M VFD in a dry, well-ventilated indoor location compliant with IP20 standards. Ensure proper grounding and wiring as per the user manual. Perform regular maintenance by inspecting connections and clearing dust every 6 months, with an annual performance diagnostic check.

Warranty and Support

This Delta VFD-M VFD is backed by a manufacturer’s warranty, ensuring reliable performance and peace of mind. Denver Electric Motor Depot offers full support for installation, troubleshooting, and maintenance.

View full details

In-Depth Product Information and Specifications for Delta VFD-M VFD - 1 HP, 230V, Single-Phase Input, 3-Phase Output | Model VFD007M21B

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, stepping down from a 1-phase supply, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 1 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 1 HP\nInput Phase: 1-Phase\nOutput Phase: 3-Phase\nVoltage: 230V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and inspect for wear to ensure safe, continuous operation.

Dust Cleaning - Every 6 Months

Remove dust buildup from vents and surfaces to maintain optimal airflow and cooling efficiency.

Performance Check - Every 12 Months

Conduct a full diagnostic test to ensure optimal performance. Check for unusual sounds or vibrations indicating potential issues.
