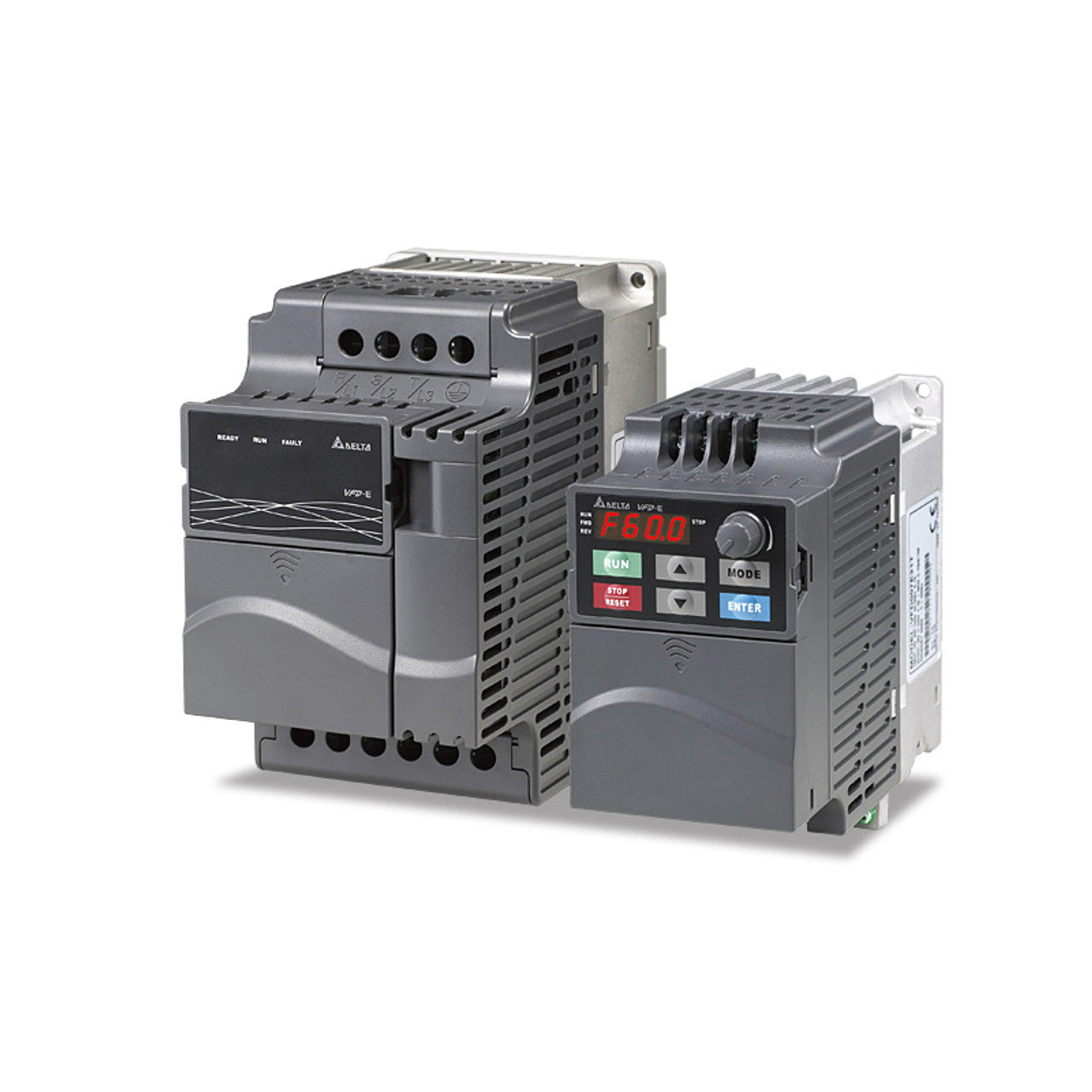

Delta VFD-E VFD - 0.25HP, 115V, Single Phase, Constant Torque | Model VFD002E11A

Delta VFD-E VFD - 0.25HP, 115V, Single Phase, Constant Torque | Model VFD002E11A

"Compact and efficient, the Delta VFD-E VFD (Model VFD002E11A) is perfect for applications requiring precise motor control. With 0.25HP capacity, single-phase input, and robust construction, this inverter delivers exceptional performance for small-scale industrial and commercial needs.

Product Specifications

Low-Power Performance: Designed for applications requiring 0.25HP, ensuring optimal energy use.

Compact Design: Lightweight (2.65 lbs) and small frame size (A1), perfect for tight spaces.

Single to Three-Phase Conversion: Converts single-phase input to three-phase output for versatile usage.

Advanced Motor Control: Provides constant torque for demanding load requirements.

Reliable Build: IP 20 enclosure ensures safe operation in controlled environments.

Applications and Uses

Automation Systems: Ideal for low-power drives in manufacturing and processing.

Pumps and Fans: Suitable for small-scale HVAC systems and fluid control.

OEM Integration: Fits seamlessly into compact equipment designs.

Educational Use: Perfect for training setups requiring precise motor control.

Key Features and Benefits

115V Compatibility: Operates with standard voltage levels, simplifying installation.

High Overload Capacity: Supports 150% overload for short durations without performance loss.

User-Friendly: Straightforward controls for easy operation and setup.

Durable Construction: Long-lasting reliability with Delta’s renowned quality.

User-Friendly Interface: Simplifies setup and operation with intuitive controls.

Rugged Design: Built to last with high-quality components and an IP 20 rating.

Installation and Maintenance Guidelines

Install in a clean, dry area with adequate ventilation. Ensure proper wiring and secure connections. Regularly inspect and maintain for sustained performance.

Warranty and Support

Backed by Delta’s 2-year warranty, offering reliable support and assistance from Denver Electric Motor Depot.

View full details

In-Depth Product Information and Specifications for Delta VFD-E VFD - 0.25HP, 115V, Single Phase, Constant Torque | Model VFD002E11A

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, stepping down from a 1-phase supply, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 0.25 HP.\nIts constant-torque rating suits conveyors, compressors, and other loads that need full torque across the speed range, rather than variable-torque loads like centrifugal pumps and fans alone.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Motor Horsepower Rating: 0.25 HP\nInput Phase: 1-Phase\nOutput Phase: 3-Phase\nVoltage: 115V\nTorque Rating: Constant Torque

Maintenance Schedule and Requirements

Inspect Connections - Every 6 Months

Check all electrical connections for tightness and signs of wear or corrosion.

Clean Cooling Vents - Every 6 Months

Remove dust or debris from cooling vents to prevent overheating.

Firmware Updates - As Required

Ensure firmware is up to date to maintain optimal performance.

Run Diagnostics - Annually

Perform a full diagnostic test to ensure the drive operates without issues.
