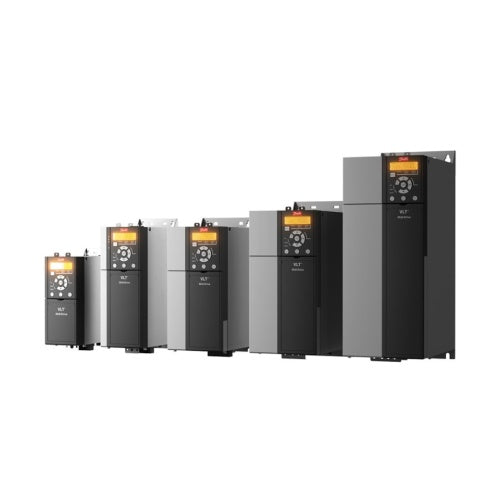

Danfoss FC 280 10HP VFD 480V NEMA 1 Frame K3

Danfoss FC 280 10HP VFD 480V NEMA 1 Frame K3

$747.04 USD
$747.04 USD
Sale Sold out
Shipping calculated at checkout.

The Danfoss FC 280 10HP Variable Frequency Drive delivers reliable, energy-efficient motor control for general-purpose industrial applications. Rated at 10 HP (7.5 kW), 480V 3-phase input, this compact Frame K3 unit features a NEMA 1 enclosure suitable for panel or wall mounting in clean indoor environments. Built-in EMC filter (Class A), integrated DC link choke for harmonic reduction, and a built-in braking transistor make this drive ready for demanding duty cycles. Ideal for pumps, fans, compressors, conveyors, and HVAC systems. The FC 280 supports Modbus RTU communications, offers auto-tuning of motor parameters, and provides comprehensive motor protection including overload, over-temperature, and phase-loss detection. Simple commissioning via the LCP keypad or Smart Start-Up wizard gets your system running fast.

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for Danfoss FC 280 10HP VFD 480V NEMA 1 Frame K3

Efficiency Comparison Chart

Applications and Recommended Use Cases

This variable frequency drive controls motor speed and torque by varying the frequency and voltage supplied to the motor, commonly used for pump and fan speed control, conveyor speed regulation, and other applications where matching motor speed to load cuts energy use and mechanical wear.\nSized for motors up to 10 HP.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Model/SKU: 135N1790\nMotor Horsepower Rating: 10 HP\nOutput Phase: 3-Phase\nVoltage: 480V

Maintenance Schedule and Requirements
