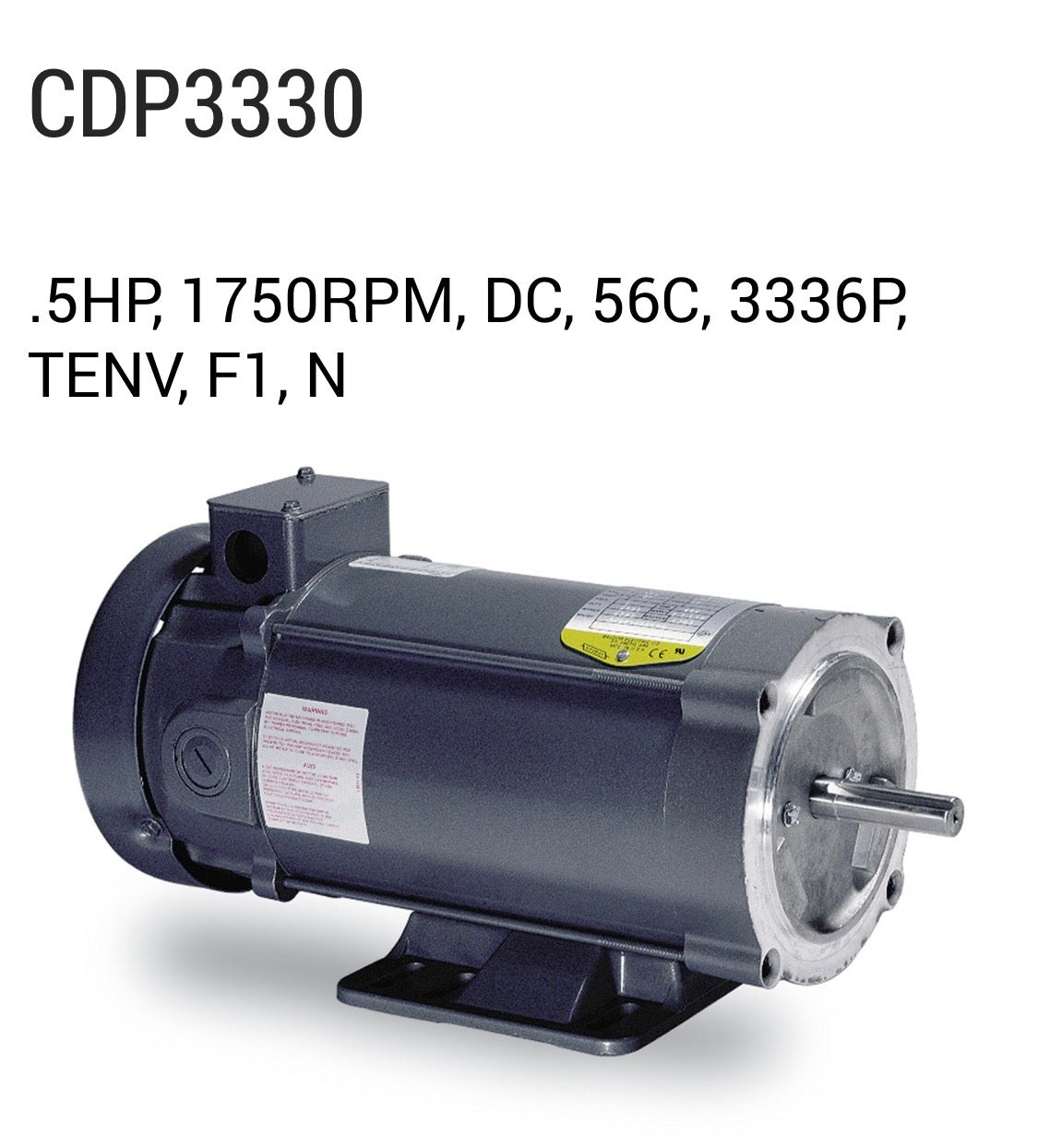

CDP3330 .5HP, 1750RPM, DC, 56C, 3336P, TENV, F1, N

Armature Voltage

90 V

Base Speed

1750 rpm

Enclosure

TENV

Frame

56C

Frame Material

Steel

Output Power

0.500 HP

Agency Approvals

CE

CSA

UKCA

UR

WEEE

Ambient Temperature

40 °C

Armature Current

4.8 a

Armature Inertia

14.047 lb-ft2

Base Indicator

Rigid

Bearing Grease Type

Polyrex EM (-20F +300F)

Drip Cover

No Drip Cover

Duty Rating

CONT

Feedback Device

NO FEEDBACK

Heater Indicator

No Heater

Insulation Class

F

Lifting Lugs

No Lifting Lugs

Motor Lead Exit

Ko Box

Motor Lead Termination

Flying Leads

Motor Lead Quantity/Wire Size

2 @ 18 AWG, A

Mounting Arrangement

F1

Overall Length

14.94 IN

Product Family

General Purpose

Pulley End Bearing Type

Sealed Bearing

RoHS Status

ROHS COMPLIANT

Service Factor

1.00

Shaft Diameter

0.625 IN

Shaft Extension Location

Pulley End

Shaft Ground Indicator

No Shaft Grounding

Shaft Rotation

Reversible

Shaft Slinger Indicator

No Slinger

Motor Standards

NEMA
