BALJPL1509T AG motor

BALJPL1509T AG motor

$2,476.00 USD
$2,859.00 USD $2,476.00 USD
Sale Sold out
Shipping calculated at checkout.

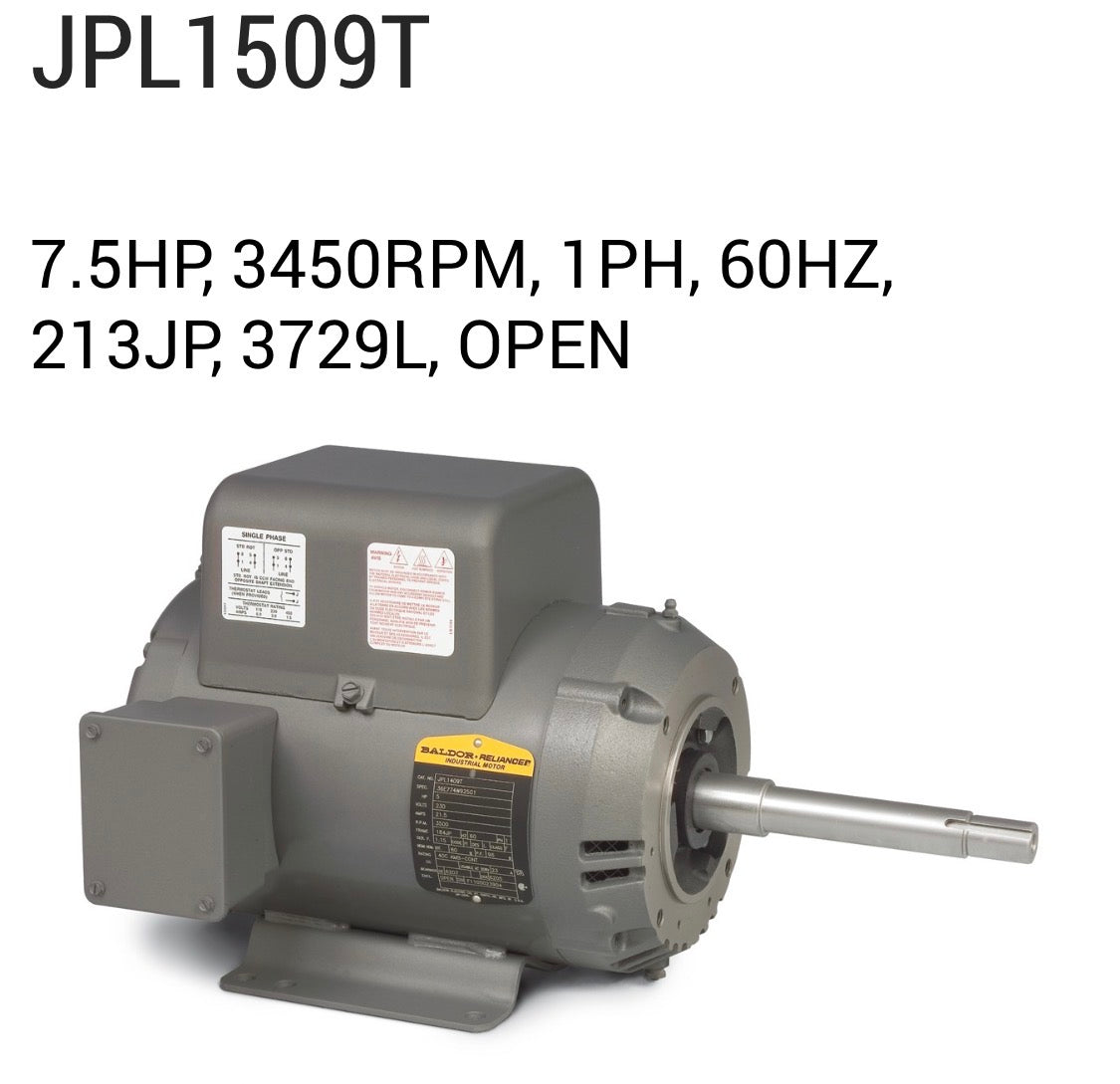

BALJPL1509T

7.5HP, 3450RPM, 1PH, 60HZ, 213JP, 3729L,

OPEN, JM,JP,WCP Close Coupled

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for BALJPL1509T AG motor

Efficiency Comparison Chart

Applications and Recommended Use Cases

This 7.5 HP, 3450 RPM motor is a direct-fit replacement part for residential and light-commercial HVAC equipment -- furnaces, air handlers, condensing units, or fan coils -- rather than a general-purpose industrial motor.\nBecause HVAC blower and draft motors are matched to a specific application by shaft size, rotation direction (CW/CCW), and mounting, confirm the original part or OEM cross-reference number against this listing before ordering, rather than matching on horsepower alone.\nTypical uses: furnace blower replacement, air handler fan replacement, condenser/evaporator fan replacement, and draft inducer replacement in gas furnaces.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Horsepower: 7.5 HP\nSpeed: 3450 RPM\nPhase: 1-Phase

Maintenance Schedule and Requirements
