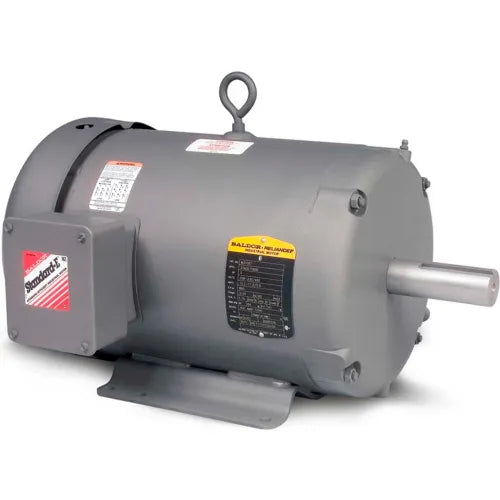

Baldor-Reliance Motor M3538 - 0.5 HP, 1725 RPM, 3-Phase, TEFC, 56 Frame

Baldor-Reliance Motor M3538 - 0.5 HP, 1725 RPM, 3-Phase, TEFC, 56 Frame

The Baldor-Reliance Motor M3538 is a high-performance motor designed for reliability and efficiency in demanding industrial and commercial applications. With a 0.5 HP power rating, 1725 RPM speed, and 3-phase design, this motor is well-suited for tasks requiring consistent torque and energy efficiency. The Totally Enclosed Fan Cooled (TEFC) enclosure ensures durability in harsh environments, while the 56 frame provides compatibility with a variety of mounting configurations.

Product Specifications

Product Specifications

FeatureDetailsPower Rating (HP)0.5 HPSpeed (RPM)1725 RPMVoltage230/460VEnclosure TypeTEFCFrame Size56Phase3-PhaseMountingF1

Applications and Uses

  • Ideal for use in light-duty industrial applications, HVAC systems, and agricultural operations.

Key Features and Benefits

Durable TEFC Enclosure: Protects against dust, dirt, and moisture.

Energy Efficient: High efficiency ensures reduced energy consumption.

Quiet Operation: Lower noise levels compared to standard motors.

Versatile Design: Compact 56 frame compatible with multiple mounting configurations.

Installation and Maintenance Guidelines

  • Installation: Align properly with the driven equipment and follow the wiring diagram included in the manual.
  • Maintenance: Regularly clean and inspect for debris; lubricate bearings as per schedule.

Warranty and Support

View full details

In-Depth Product Information and Specifications for Baldor-Reliance Motor M3538 - 0.5 HP, 1725 RPM, 3-Phase, TEFC, 56 Frame

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 0.5 HP range, 3-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe totally enclosed fan-cooled (TEFC) design keeps dust, dirt, and moisture away from the windings, making it a solid fit for machine shops, manufacturing floors, and other environments where an open frame would let contaminants reach the motor.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Horsepower: 0.5 HP\nSpeed: 1725 RPM\nPoles: 4\nPhase: 3-Phase\nVoltage: 230/460V\nNEMA Frame: 56\nEnclosure: TEFC

Maintenance Schedule and Requirements

Monthly: Inspect for wear and tear, clean external surfaces. Annually: Lubricate bearings, check electrical connections. Every 5 Years: Overhaul recommended for heavy-duty applications.
