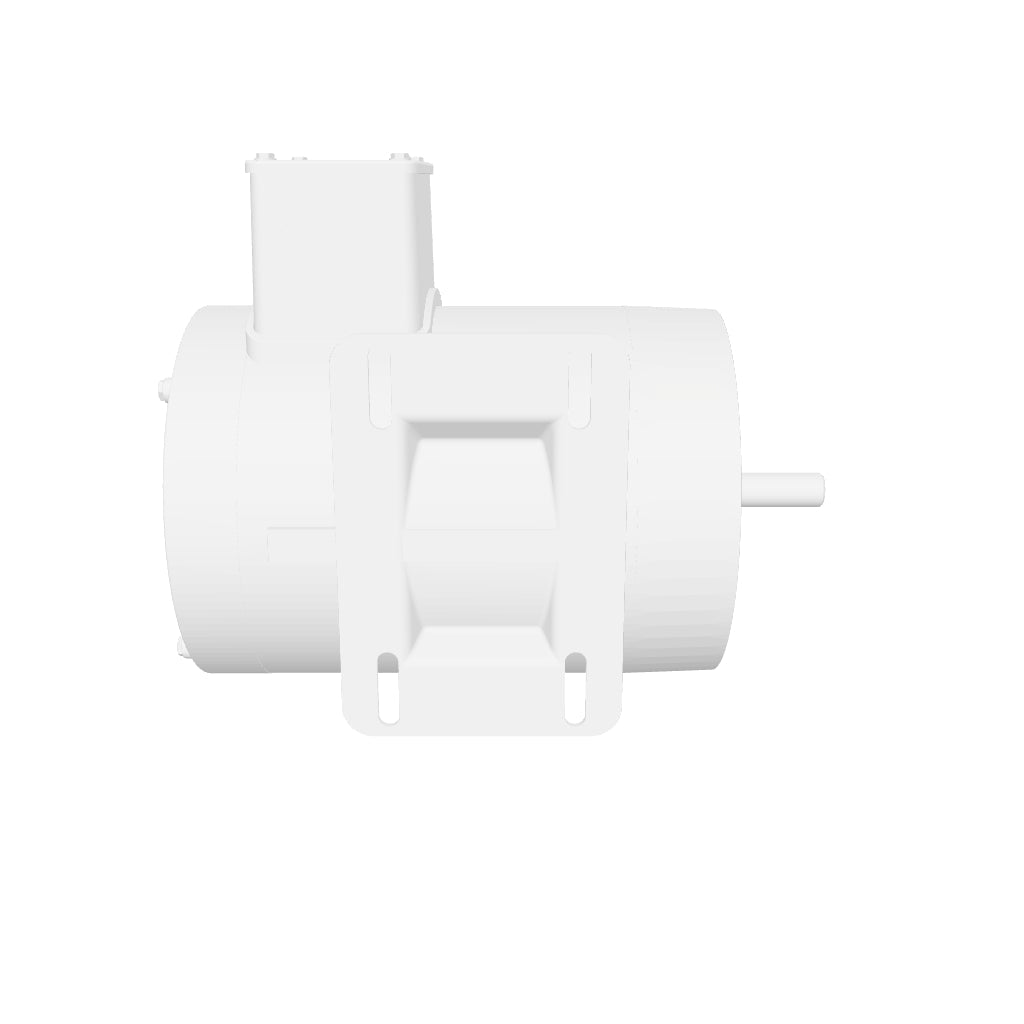

Baldor CSSWDM3541 Motor - 0.75 HP, 3450 RPM, 3-Phase, TENV, 60 Hz, 56C Frame, Stainless Steel

Baldor CSSWDM3541 Motor - 0.75 HP, 3450 RPM, 3-Phase, TENV, 60 Hz, 56C Frame, Stainless Steel

The Baldor CSSWDM3541 Motor is a wash-down-ready stainless steel motor designed for demanding industrial environments. With a 0.75 HP output, 3450 RPM speed, and a Totally Enclosed Non-Ventilated (TENV) enclosure, this motor delivers reliable performance and durability in applications requiring frequent cleaning and resistance to corrosion.

Built with a robust 56C stainless steel frame, the CSSWDM3541 operates at 80% efficiency and meets NEMA standards for industrial use. The C-face mounting and 1.25 service factor ensure flexibility and long-lasting performance under continuous-duty conditions. This motor is ideal for wash-down systems, pumps, fans, and general-purpose machinery in industries like food and beverage processing and pharmaceutical production.

Features:

  • Power: 0.75 HP
  • Speed: 3450 RPM
  • Enclosure: TENV (Totally Enclosed Non-Ventilated), All Stainless Steel
  • Frame: 56C, Stainless Steel
  • Efficiency: 80.0% at full load
  • Voltage Options: 208V / 230V / 460V @ 60 Hz
  • Service Factor: 1.25 for added reliability under heavy load conditions
  • Mounting Arrangement: F1, C-face
  • Bearings: Sealed bearings for enhanced durability in wash-down environments
  • Inverter-Ready: Compatible with variable frequency drives (VFDs) for efficient speed control

Product Specifications

  • Model: CSSWDM3541
  • Power: 0.75 HP
  • Speed: 3450 RPM
  • Voltage: 208V / 230V / 460V
  • Phase: 3-Phase
  • Frequency: 60 Hz
  • Frame: 56C
  • Enclosure: TENV (Totally Enclosed Non-Ventilated), All Stainless Steel
  • Efficiency: 80.0% at full load
  • Service Factor: 1.25
  • Insulation Class: F
  • Bearing Grease: Polyrex EM (-20°F to +300°F)
  • Mounting Arrangement: F1, C-face
  • Weight: 43 lbs
  • Ambient Temperature: 40°C
  • Duty Rating: Continuous (S1)
  • Starting Method: Direct On Line
  • Compliance: CURUS Approved, RoHS Compliant
  • Shaft Diameter: 0.625 in
  • Overall Length: 11.09 in
  • Locked Rotor Torque: Standard

Applications and Uses

Food and Beverage Processing: Meets hygiene and wash-down requirements.

Pharmaceutical Manufacturing: Corrosion-resistant and ideal for clean environments.

Pumps and Blowers: Suitable for fluid and air movement in high-moisture areas.

General Purpose Industrial Use: Versatile motor for a wide range of applications requiring durability and reliability.

Key Features and Benefits

Stainless Steel Construction: Resists corrosion for reliable performance in harsh environments.

Energy Efficient: Operates at 80.0% efficiency, lowering operational costs.

Compact Design: Lightweight and versatile with a 0.75 HP output.

Wash-Down Ready: TENV enclosure protects against moisture and contaminants.

Service Factor of 1.25: Ensures reliable operation under heavy load conditions.

NEMA Standards Compliant: Meets performance and safety standards for industrial use.

Installation and Maintenance Guidelines

Installation Guidelines:

  • Mount the motor on a stable, clean surface to minimize vibration and enhance performance.
  • Use the F1 C-face mounting arrangement for precise alignment.
  • Connect the motor to the appropriate voltage (208V/230V/460V) as specified in the wiring diagram.
  • Perform a no-load test to verify operational functionality before applying a load.

Maintenance Guidelines:

  • Monthly: Inspect for debris, corrosion, and unusual vibrations or noises.
  • Quarterly: Tighten all electrical connections and check for wear.
  • Annually: Inspect stainless steel surfaces and bearings for wear or damage.
  • Every 5 Years: Conduct a full motor inspection, including alignment and performance testing.

Warranty and Support

Warranty: The Baldor CSSWDM3541 Motor is backed by a 3-year manufacturer warranty, providing peace of mind for demanding wash-down applications.

Support: Denver Electric Motor Depot offers expert assistance for installation, maintenance, and troubleshooting.

View full details

In-Depth Product Information and Specifications for Baldor CSSWDM3541 Motor - 0.75 HP, 3450 RPM, 3-Phase, TENV, 60 Hz, 56C Frame, Stainless Steel

Efficiency Comparison Chart

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 0.75 HP range, 3-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.\nThe totally enclosed, non-ventilated (TENV) design has no external cooling fan, which suits dusty or washdown-adjacent environments where a fan could otherwise draw contaminants into the motor.\nBuilt for washdown duty, it's designed to tolerate regular high-pressure washdown and sanitation cycles common in food and beverage processing.

Energy Cost Savings Over Time

Energy Cost Savings Over Time

The Baldor CSSWDM3541 Motor offers 80.0% efficiency, significantly reducing energy consumption for industrial applications. Its corrosion-resistant stainless steel construction also minimizes long-term maintenance costs, ensuring reliability and cost-effectiveness.

Technical Specifications Breakdown

Horsepower: 0.75 HP\nSpeed: 3450 RPM\nPhase: 3-Phase\nVoltage: 208/230/460V\nNEMA Frame: 56C\nEnclosure: TENV\nWashdown duty rated

Maintenance Schedule and Requirements

Maintenance Schedule and Requirements

Maintenance Task Frequency
Inspect for dirt, debris, and corrosion Monthly
Check electrical connections for tightness Quarterly
Lubricate sealed bearings if required Annually
Inspect stainless steel surfaces for wear or damage Annually
Perform a full motor inspection, including shaft alignment Every 5 years
