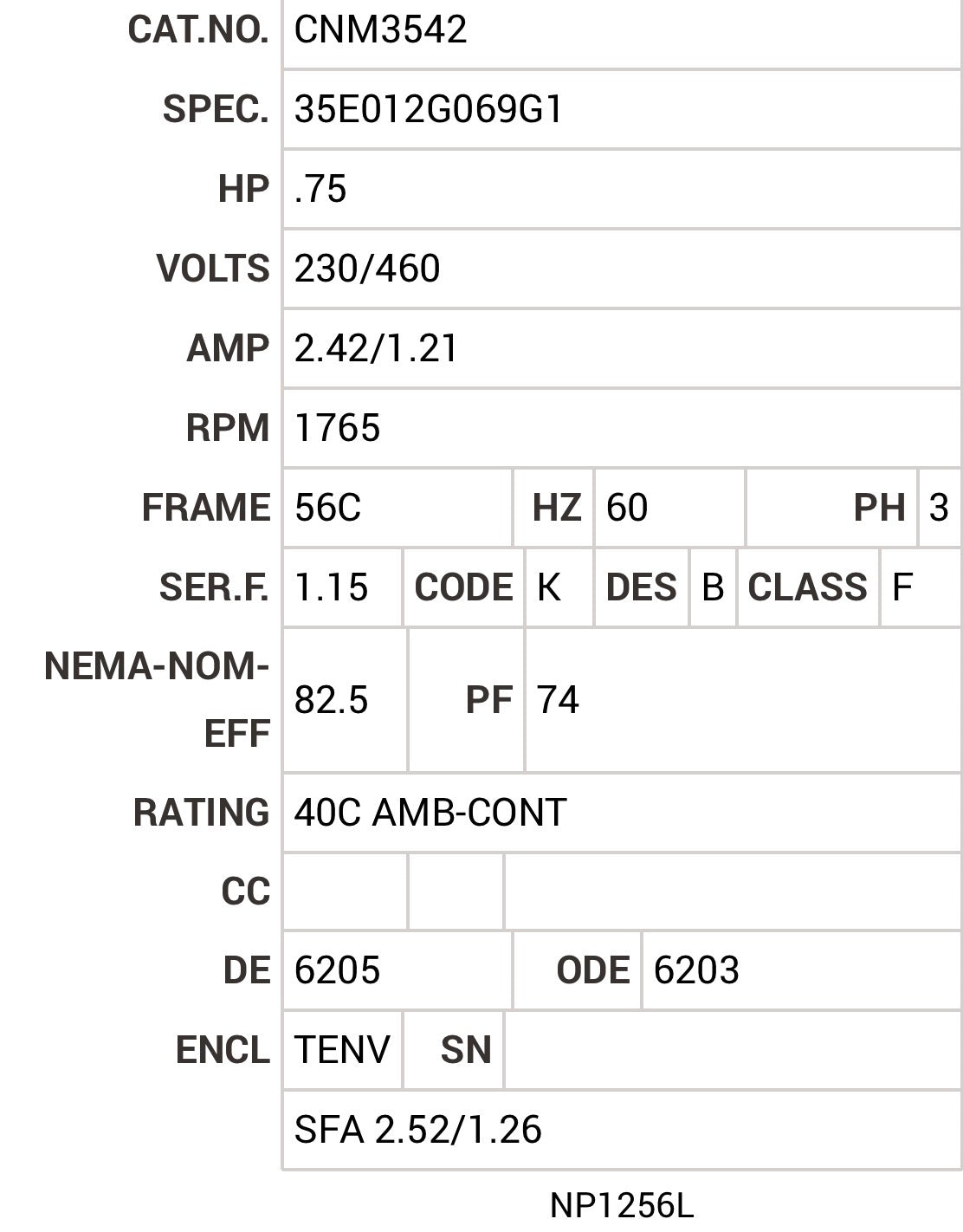

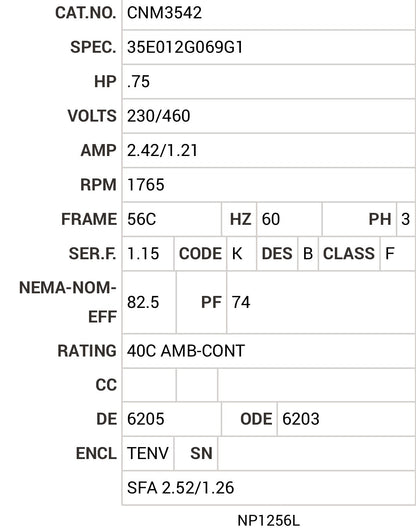

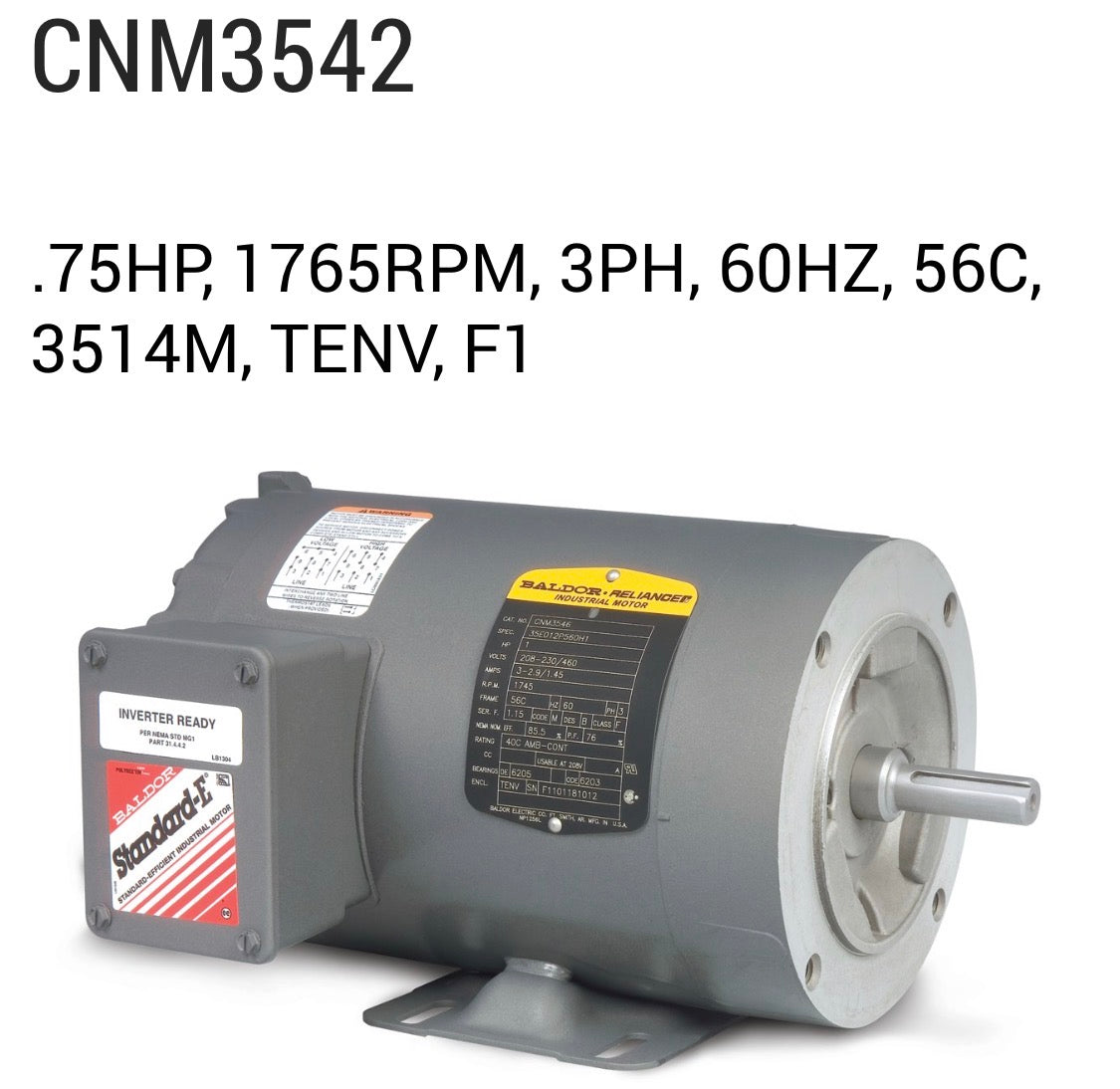

BALCNM3542

Catalog Number

CNM3542

Enclosure

TENV

Frame

56C

Frame Material

Steel

Frequency

60.00 Hz

Motor Letter Type

Three Phase

Output @ Frequency

.750 HP @ 60 HZ

Phase

3

Synchronous Speed @ Frequency

1800 RPM @ 60 HZ

Voltage @ Frequency

230.0 V @ 60 HZ

460.0 V @ 60 HZ

Haz Area Class and Group

None

Haz Area Division

Not Applicable

Agency Approvals

C UR US

Ambient Temperature

40 °C

Auxiliary Box

NO AUXILLARY BOX

Auxiliary Box Lead Termination

None

Base Indicator

Rigid

Bearing Grease Type

Polyrex EM (-20F +300F)

Blower

None

Current @ Voltage

1.210 A @ 460.0 V

2.420 A @ 208.0 V

2.420 A @ 230.0 V

Design Code

B

Drip Cover

No Drip Cover

Duty Rating

CONT

Efficiency @ 100% Load

82.5 %

Electrically Isolated Bearing

Not Electrically Isolated

Feedback Device

NO FEEDBACK

High Voltage Full Load Amps

1.2 a

Front Face Code

Standard

Front Shaft Indicator

None

Heater Indicator

No Heater

Insulation Class

F

Inverter Code

Inverter Duty

KVA Code

K

Lifting Lugs

No Lifting Lugs

Locked Bearing Indicator

Locked Bearing

Motor Lead Exit

Ko Box

Motor Lead Termination

Flying Leads

Motor Lead Quantity/Wire Size

9 @ 18 AWG

Motor Type

3514M

Mounting Arrangement

F1

Number of Poles

4

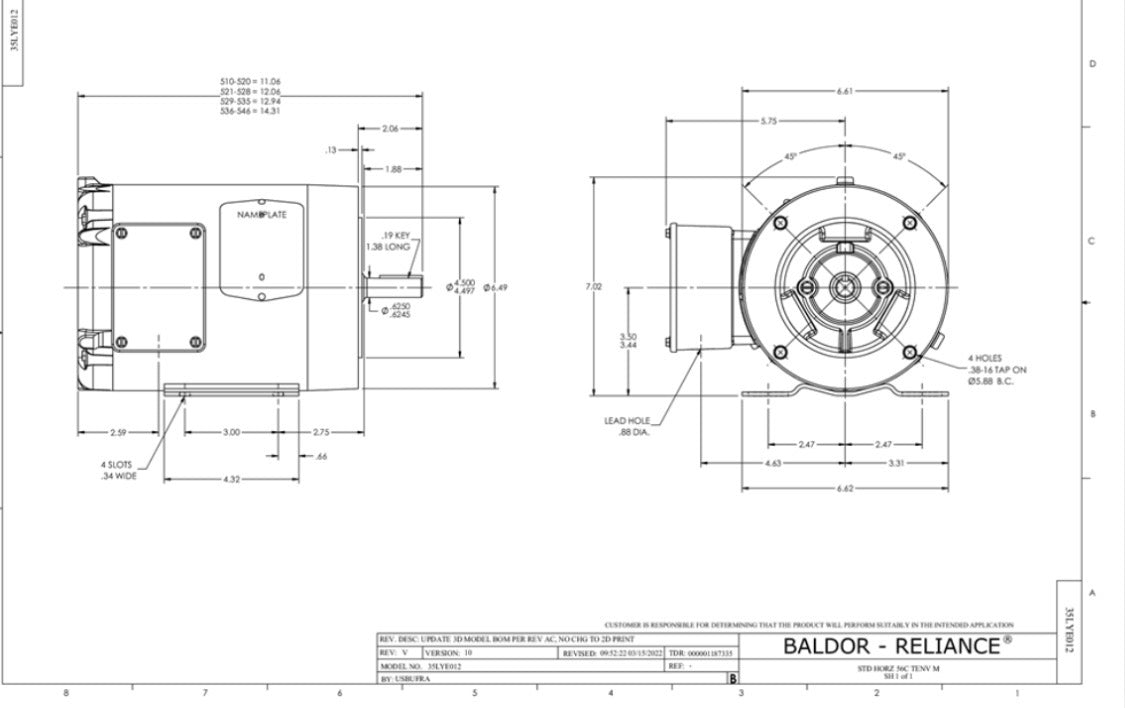

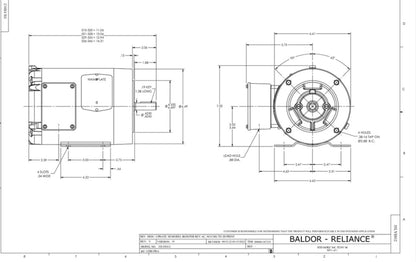

Overall Length

11.06 IN

Power Factor

74

Product Family

General Purpose

Pulley End Bearing Type

Ball

Pulley Face Code

C-Face

Pulley Shaft Indicator

Standard

Rodent Screen

None

Service Factor

1.15

Shaft Diameter

0.625 IN

Shaft Extension Location

Pulley End

Shaft Ground Indicator

No Shaft Grounding

Shaft Rotation

Reversible

Shaft Slinger Indicator

No Slinger

Speed

1765 rpm

Speed Code

Single Speed

Motor Standards

NEMA

Starting Method

Direct on line

Thermal Device - Bearing

None

Thermal Device - Winding

None

Vibration Sensor Indicator

No Vibration Sensor

Winding Thermal 1

None

Winding Thermal 2

None
