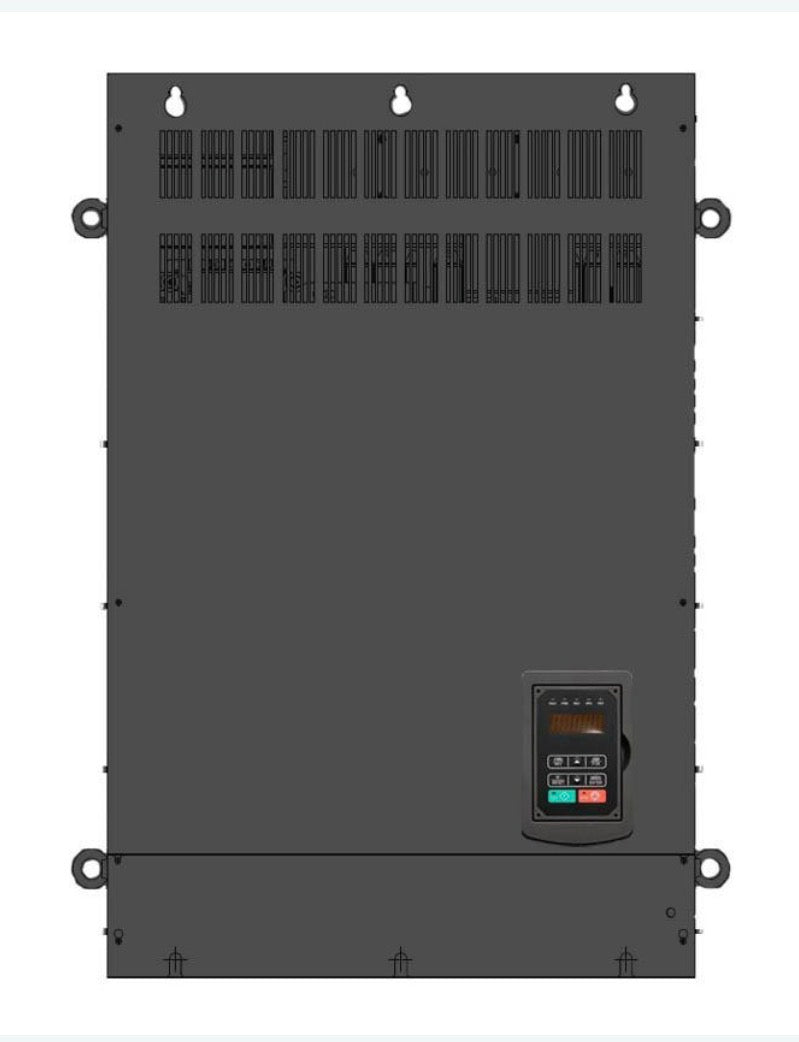

A510-4425-C3-UE Alt: This is the Latest Version of A510-4425-C3-U

VFD, 400hp CT/VT, 460VAC, 60Hz, 3 Phase, IP00 (NEMA 1 Kit Optional), 585 Amp Output CT/VT

A510-4425-C3-UE

VFD, 400hp Constant Torque (CT) / 400hp Variable Torque (VT), 585 Amp, 460VAC, 60Hz, 3 Phase, IP00 Chassis (NEMA 1 kit available as an option), 150% overload for 1 minute on CT. 1 unit available from

TECO Westinghouse 8/24/2026 (subject to change). Ships by truck freight, not UPS (405 lbs).

Alternate Part #: This is the Latest Version

Weight:

405.00 LBS

January 2020: The A510 series has new features added! The part numbers will transition from a -U to a -UE as stock is used.

The new -UE version has enhanced features that include:

• Upgraded CPU design on control board
• Frames 2 through 5 will have a DC bus connection P1/P2 added for customers to install a DC reactor - these models include 230V, 5 to 40hp and 460V, 5 to 50hp
• Expansion slot for optional I/O and communication cards
• Ability to power on control board with 24VDC optional expansion card
• Removable control wiring terminal strip
• A510 keypad will reflect F510 keypad layout

Our TECO A510 is a versatile, high performance AC drive that can control demanding motor driven applications. This highly flexible drive has multiple control modes to cover almost every motor driven application:

• V/F with constant and variable torque settings
• V/F mode with PG encoder feedback
• Sensorless vector
• Closed loop vector
