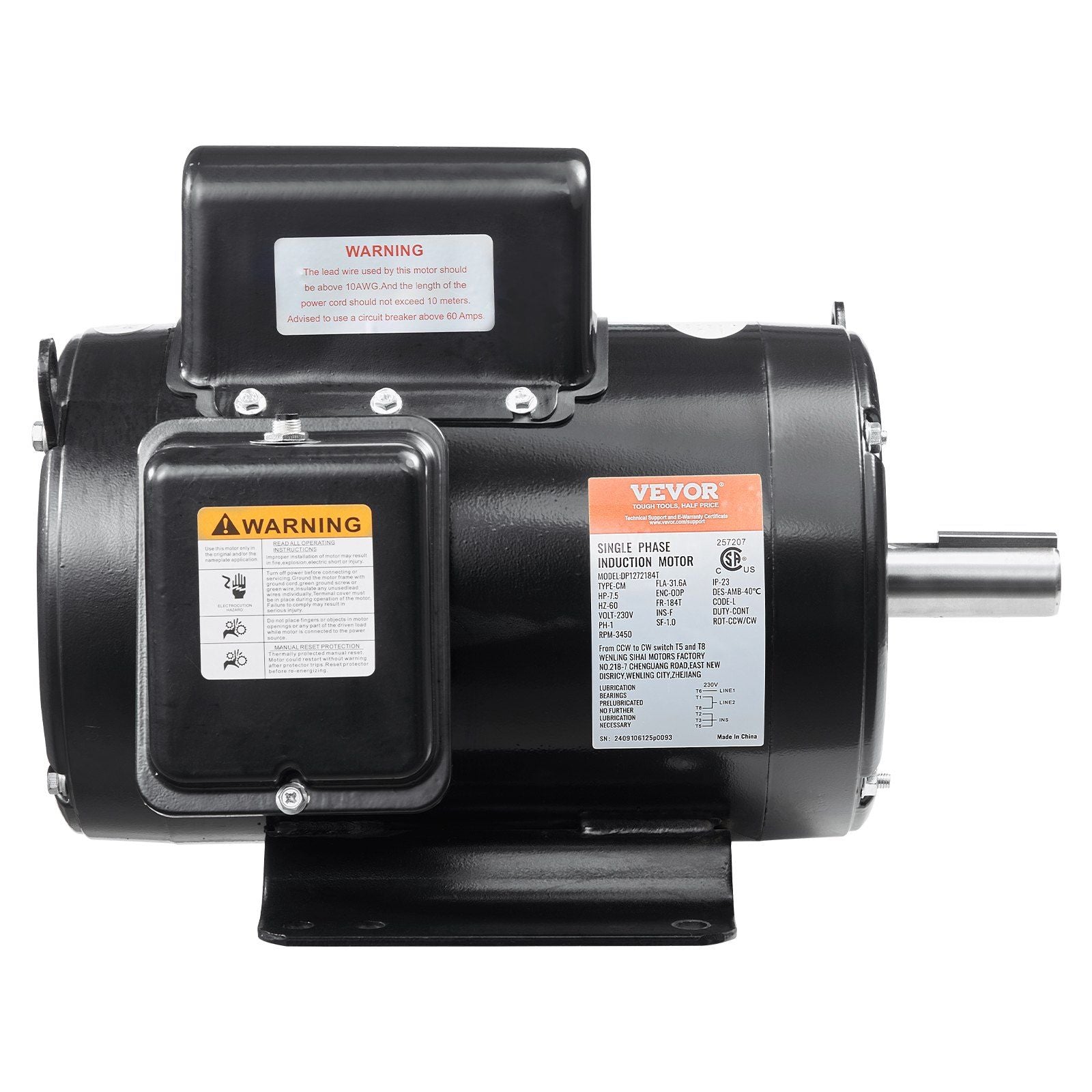

7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate

7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate

$412.99 USD
$534.45 USD $412.99 USD
Sale Sold out
Shipping calculated at checkout.
Highlights:
1.High Performance: 7.5HP, 3450 RPM, Single Phase, Full Load Amps: 31.6Amp, 230V 60Hz, SF: 1.0.
2.Frame Type: 184T Frame, 1-1/8" Keyed shaft, 2.75" Shaft length, 0.25" Keyway Size.
3.Open Drip-proof: Suggest using in clean and dry environments. Made of high-quality steel material, it can protect the engine, longer service life.
4.Dual Rotation Direction: Motor is Reversible for CW/CCW, provides easier wiring operations.
5.Safe & Durable: Tested with CSA certification. A sturdy steel frame, fast heat dissipation and compatible keyed shaft for longtime usage.

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for 7.5HP Air Compressor Electric Motor 230V 31.6A 3450RPM 184T Frame CW/CCW Rotate

Efficiency Comparison Chart

Applications and Recommended Use Cases

In the 7.5 HP range, 1-phase motors like this one are commonly used to drive pumps, fans and blowers, compressors, and general material-handling equipment in industrial and commercial facilities.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Model/SKU: D0102HS0J48\nHorsepower: 7.5 HP\nSpeed: 3450 RPM\nPhase: 1-Phase\nVoltage: 230V\nNEMA Frame: 184T

Maintenance Schedule and Requirements
