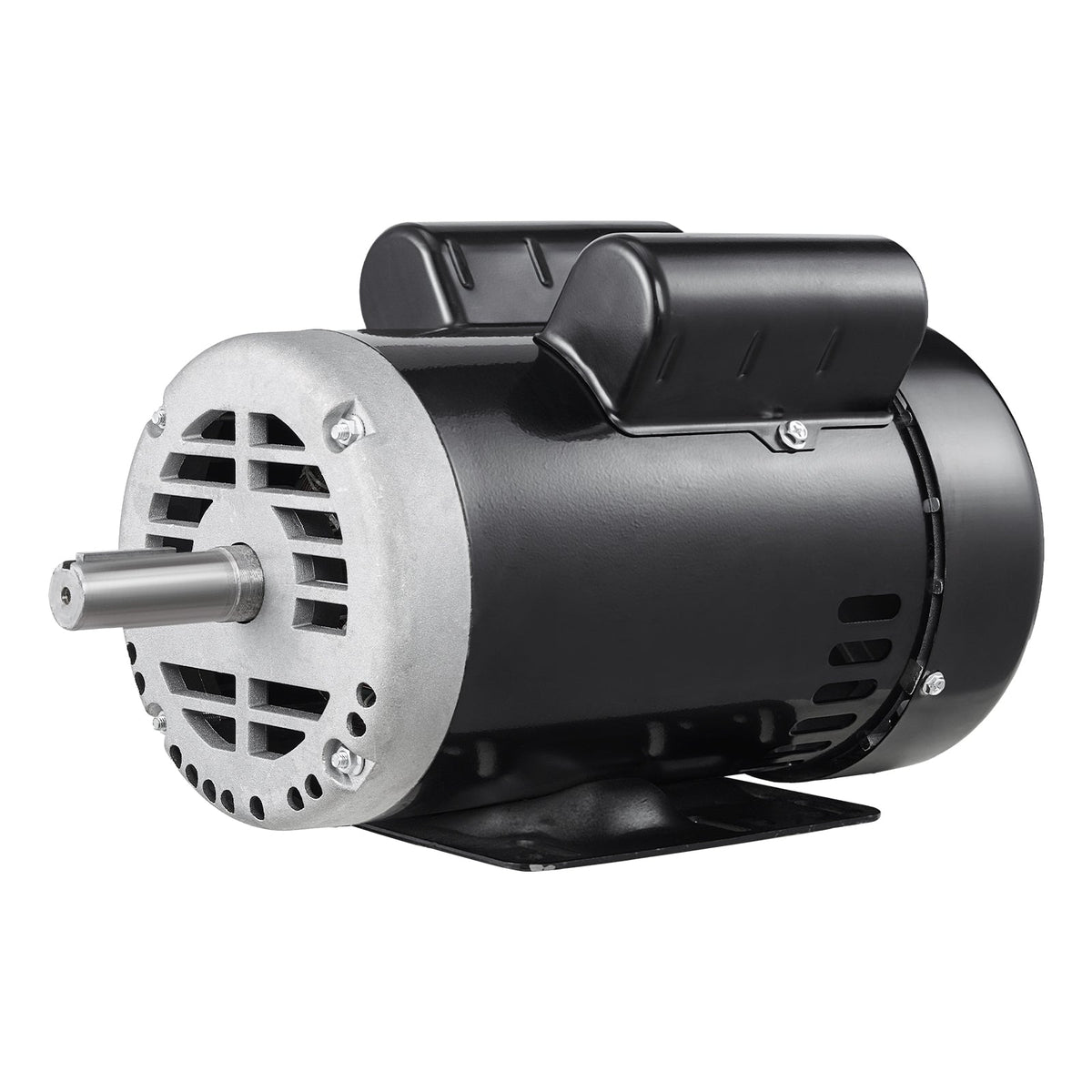

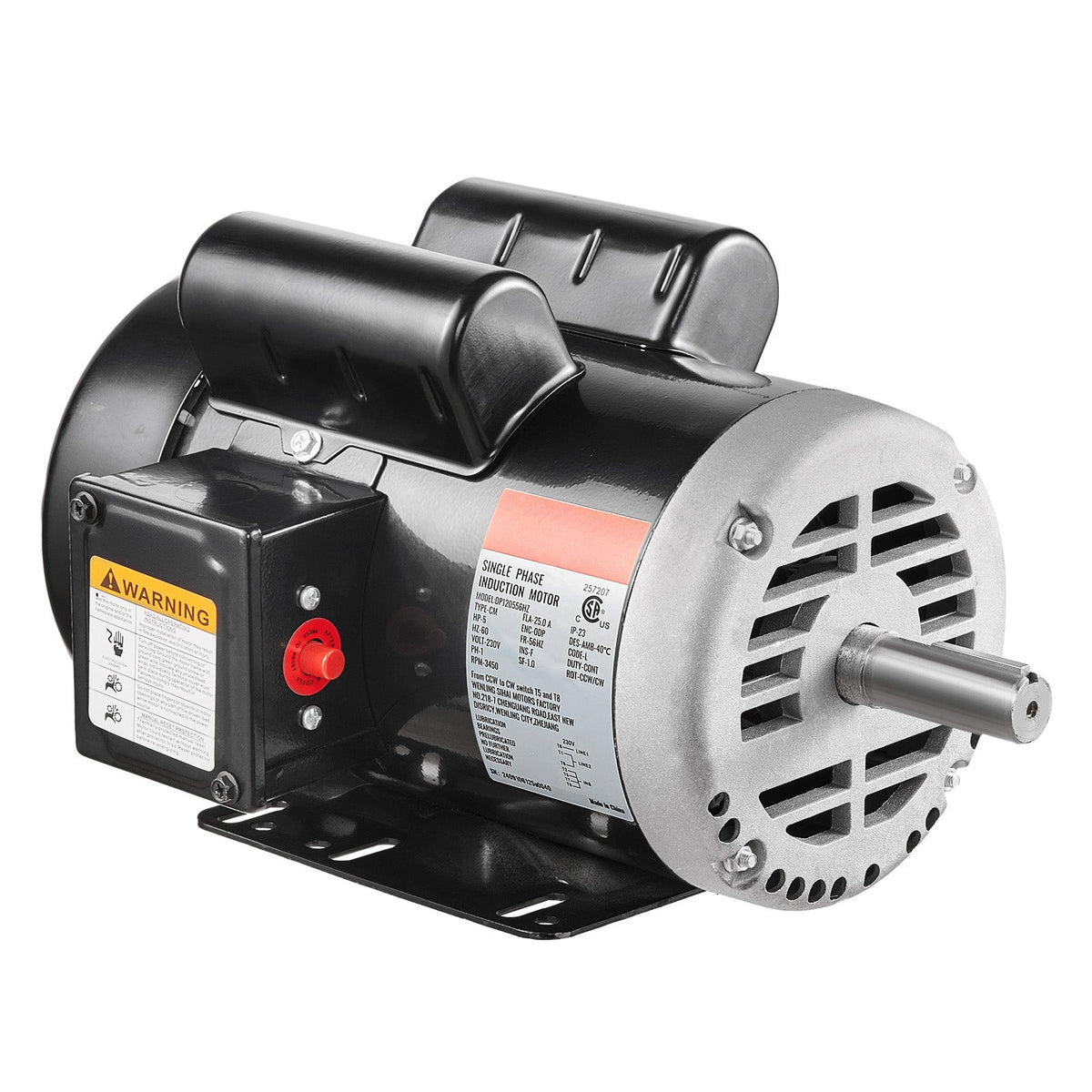

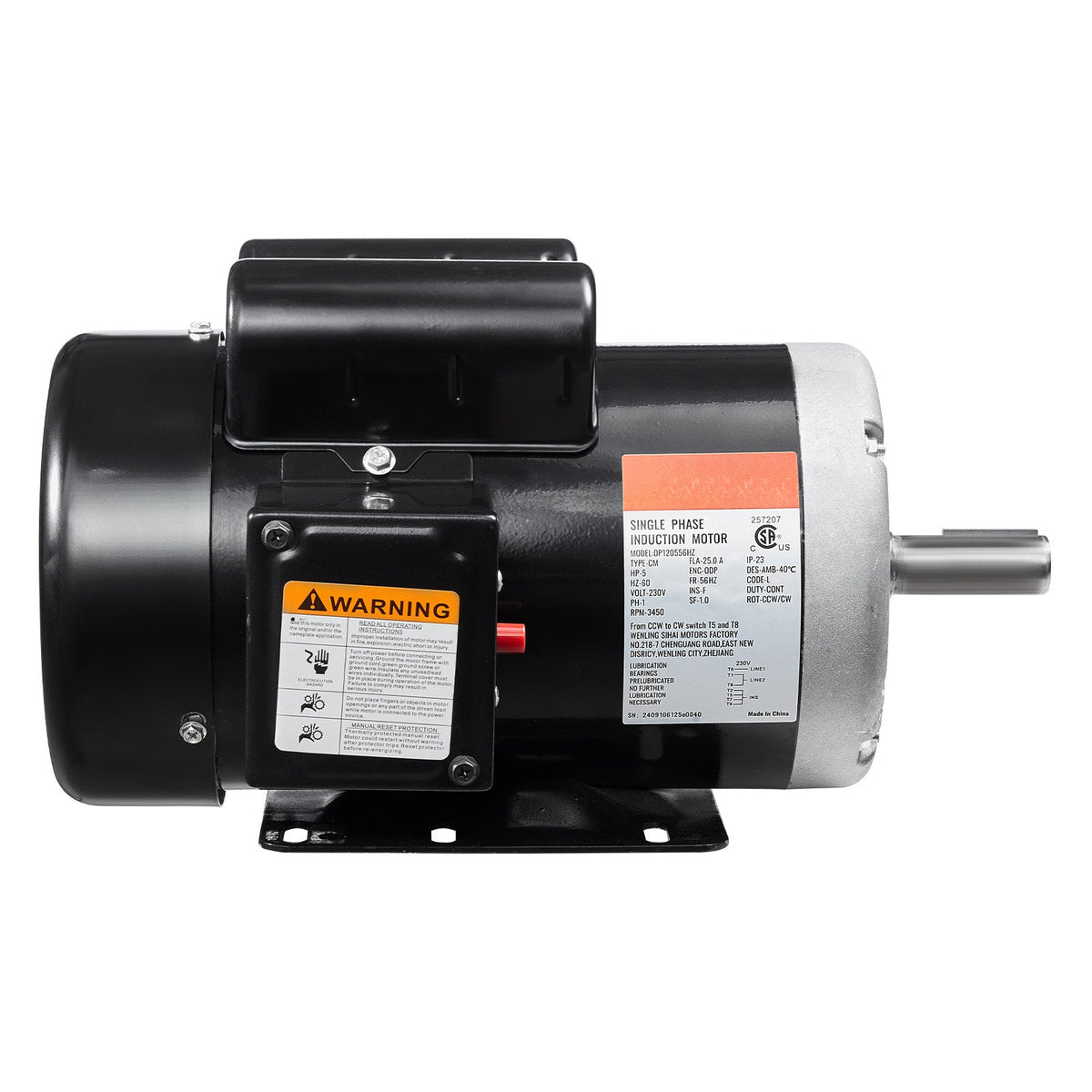

5HP Air Compressor Electric Motor 230V 25A 3450RPM CW/CCW Rotation

5HP Air Compressor Electric Motor 230V 25A 3450RPM CW/CCW Rotation

$235.95 USD
$316.95 USD $235.95 USD
Sale Sold out
Shipping calculated at checkout.

Product Overview
This 5HP electric motor is designed for air compressor applications, ideal for industrial or workshop use where reliable performance and versatility are required.

Key Features

  • Constructed from high-quality steel for enhanced durability and longer service life.

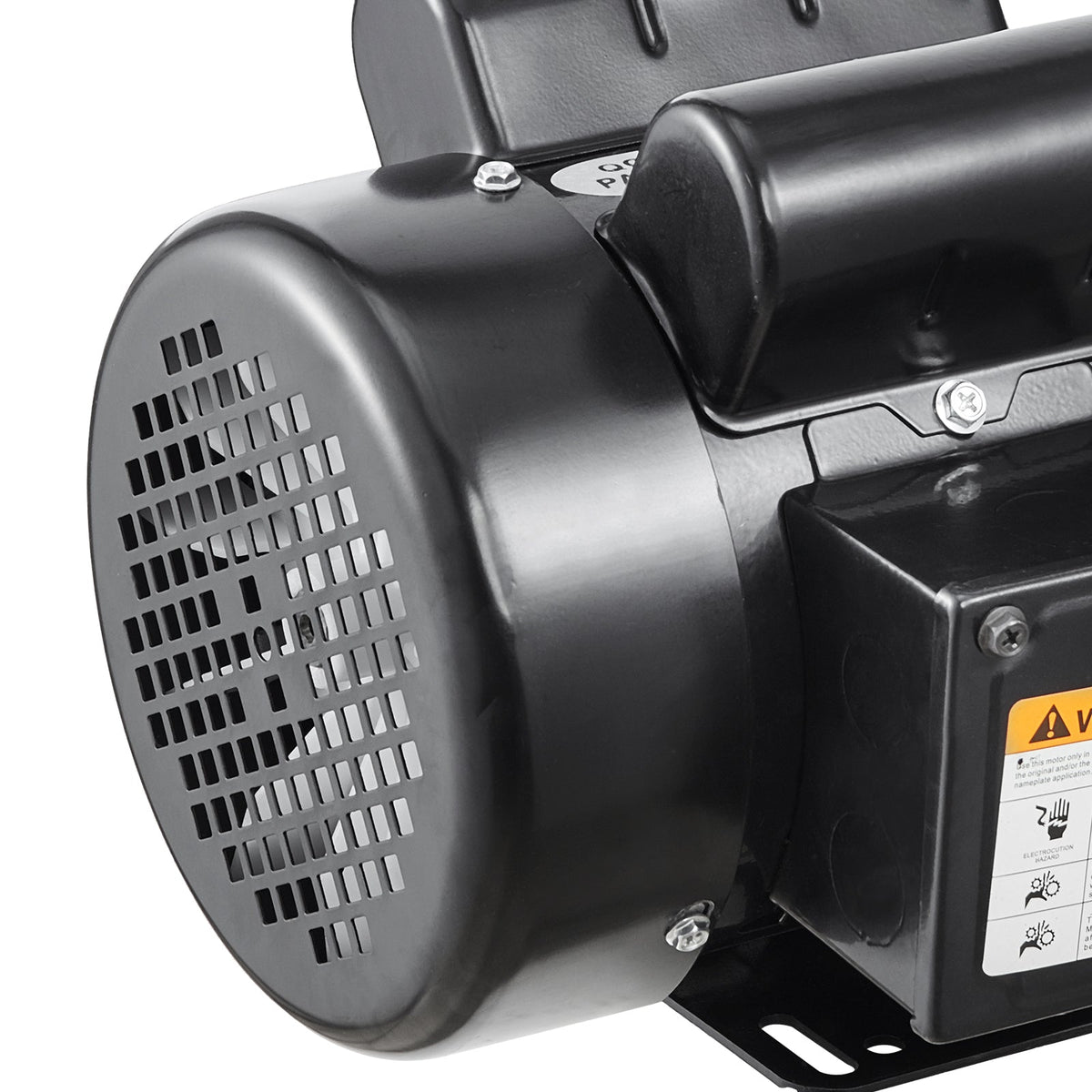

  • Open drip-proof design, suitable for use in clean and dry environments.
  • Reversible motor rotation, factory set to counterclockwise (CCW) with clockwise (CW) option for flexibility in wiring and operation.
  • Provides consistent high performance with a 3450 RPM speed and 25 Amp full load current at 230V.

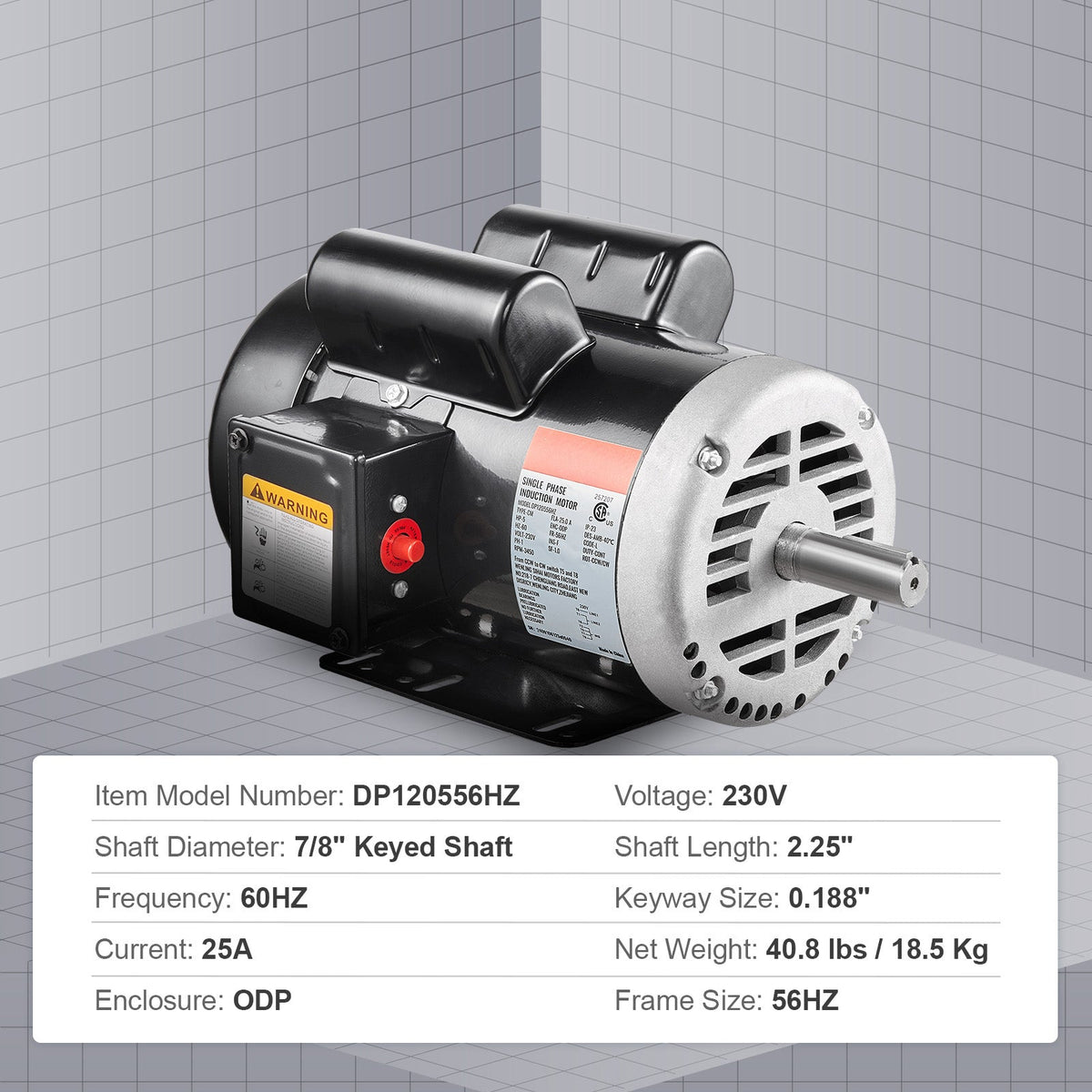

Dimensions
Frame Type: 56Hz Frame
Shaft Diameter: 7/8"
Shaft Length: 2.25"
Keyway Size: 0.188"

Product Dimensions: 17.72in L x 11.42in W x 11.61in H

Product Specifications

Applications and Uses

Key Features and Benefits

Installation and Maintenance Guidelines

Warranty and Support

Request A Quote

View full details

In-Depth Product Information and Specifications for 5HP Air Compressor Electric Motor 230V 25A 3450RPM CW/CCW Rotation

Efficiency Comparison Chart

Applications and Recommended Use Cases

This 5 HP, 3450 RPM motor is a direct-fit replacement part for residential and light-commercial HVAC equipment -- furnaces, air handlers, condensing units, or fan coils -- rather than a general-purpose industrial motor.\nBecause HVAC blower and draft motors are matched to a specific application by shaft size, rotation direction (CW/CCW), and mounting, confirm the original part or OEM cross-reference number against this listing before ordering, rather than matching on horsepower alone.\nTypical uses: furnace blower replacement, air handler fan replacement, condenser/evaporator fan replacement, and draft inducer replacement in gas furnaces.

Energy Cost Savings Over Time

Technical Specifications Breakdown

Model/SKU: T3342P434666\nHorsepower: 5 HP\nSpeed: 3450 RPM\nVoltage: 230V\nFrame: 56HZ

Maintenance Schedule and Requirements
